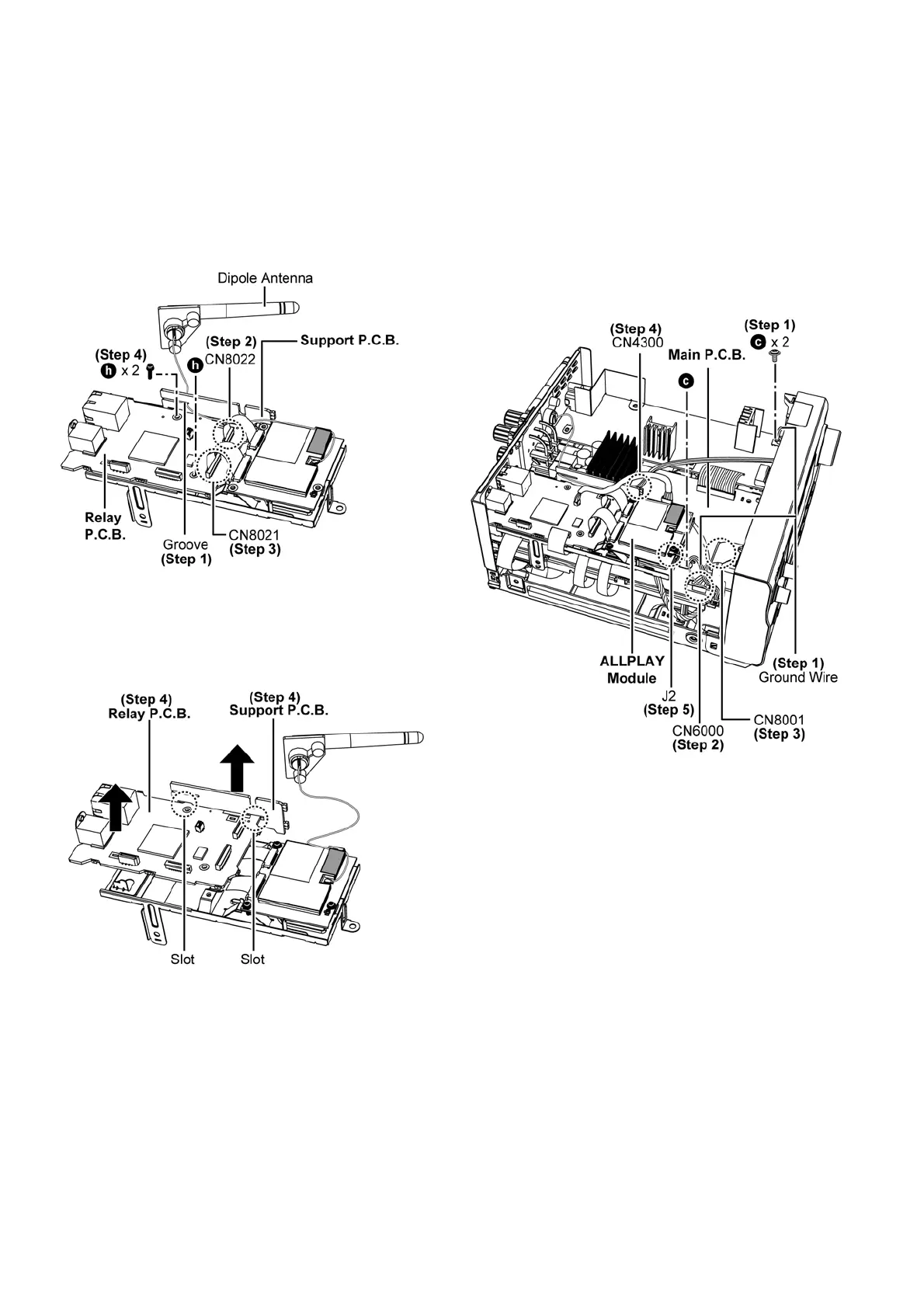

8.5.3. Disassembly of Relay P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Relay Block”
Step 1 : Release antenna wire from the groove.
Step 2 : Detach 20P FFC at connector (CN8022) on Relay
P.C .B . .
Step 3 : Detach 30P FFC at connector (CN8021) on Relay
P.C .B . .
Step 4 : Remove 2 screws.
Step 4 : Lift up Support P.C.B. & Relay P.C.B. together and
remove Relay P.C.B..
8.6. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet”
Step 1 : Remove 2 screws and detach ground wire.
Step 2 : Detach 7P wire at connector (CN6000) on Main P.C.B..
Step 3 : Detach 21P FFC at connector (CN8001) on Main
P.C.B..
Step 4 : Detach 5P wire at connector (CN4300) on Main P.C.B..
Step 5 : Detach antenna wire at connector (J2) on ALLPLAY
Module.
