Panasonic SA-PMX100 - Disassembly of Relay Block

23

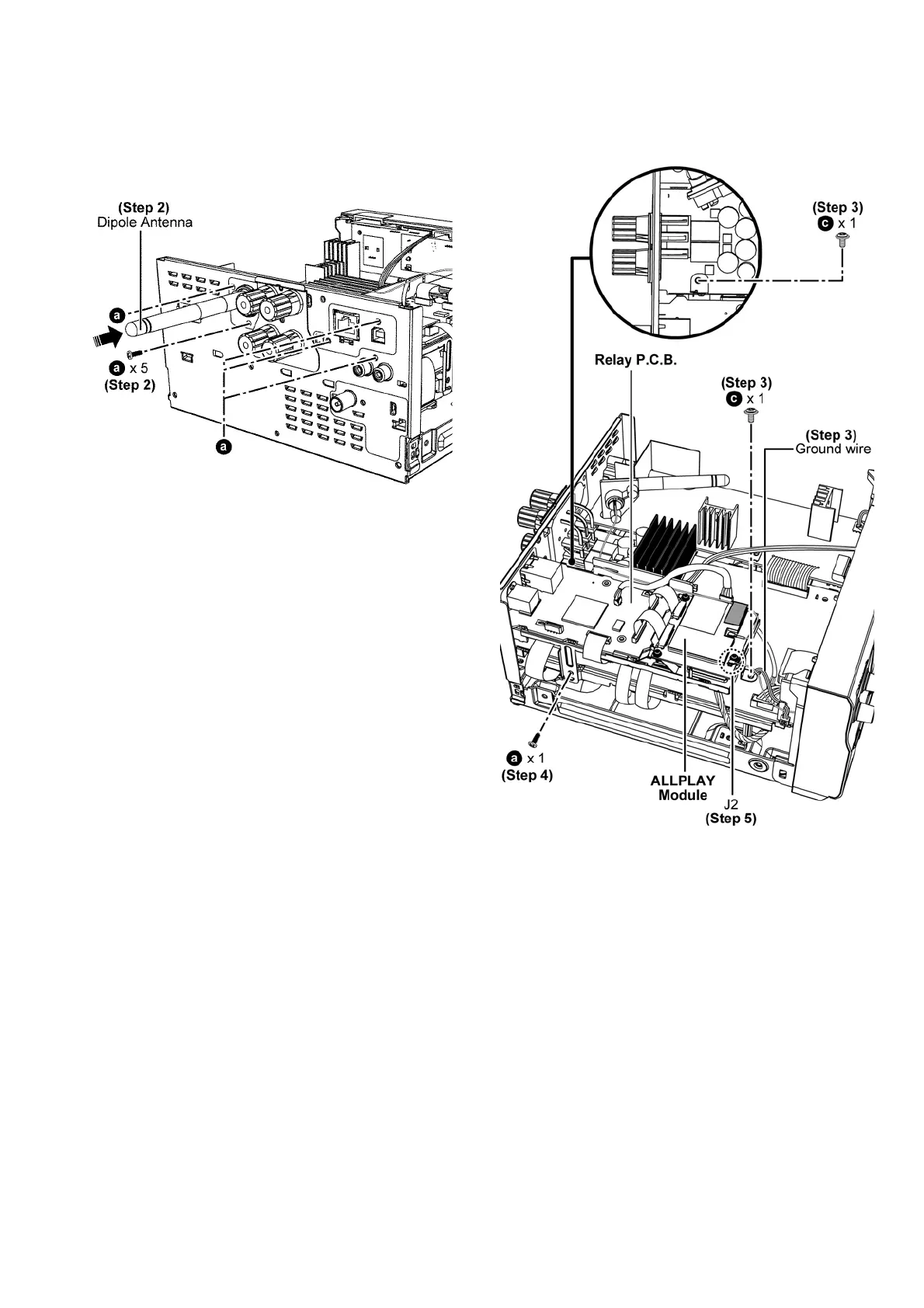

8.5. Disassembly of Relay Block
• Refer to “Disassembly of Top Cabinet”
Step 1 : Remove 5 screws.
Step 2 : Push inwards Dipole Antenna.
Step 3 : Remove 2 screws and detach ground wire.
Step 4 : Remove screw.
Step 5 : Detach antenna wire at connector (J2) on ALLPLAY
Module.
