69

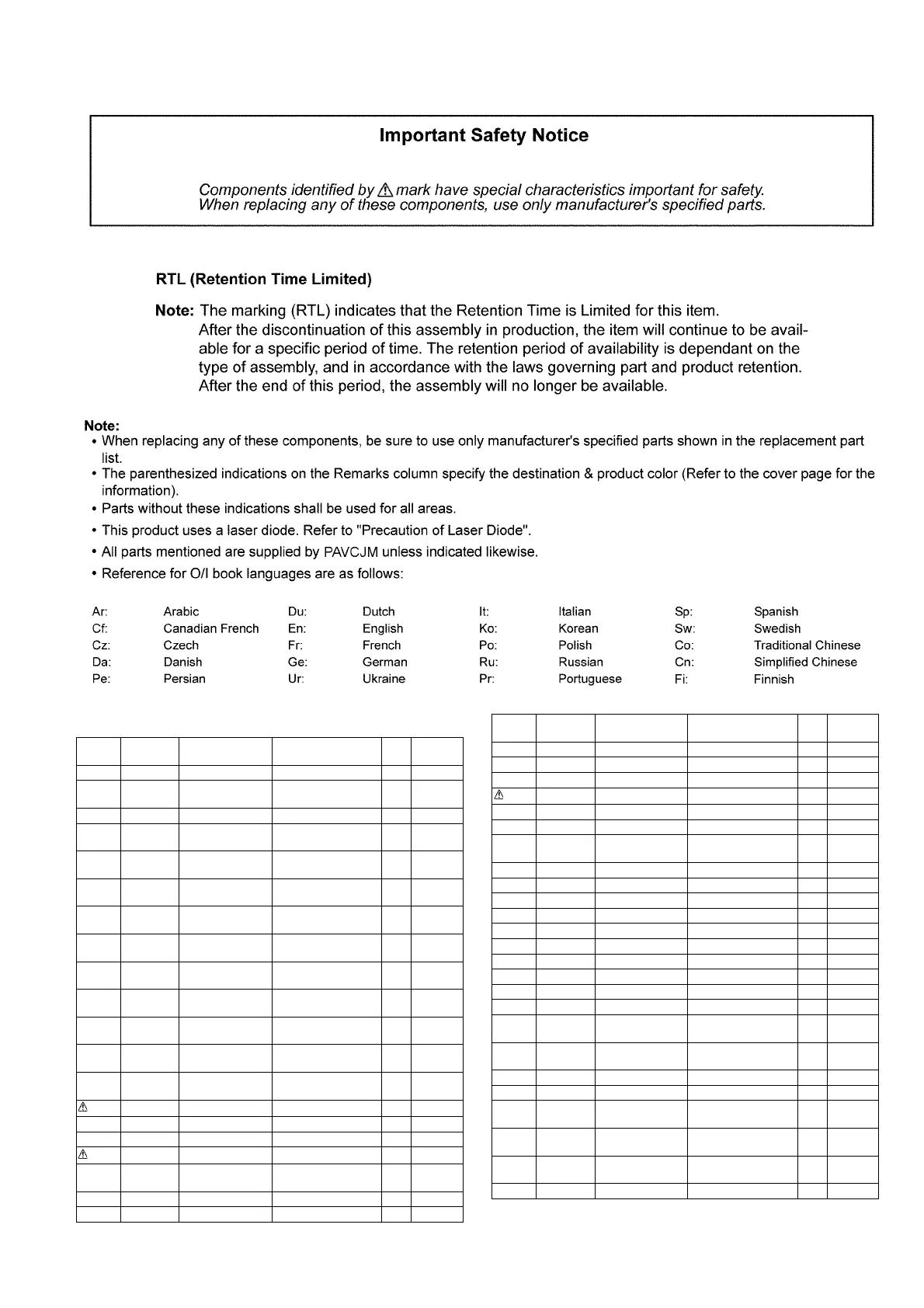

15.3. Mechanical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 REE1730 10P FFC (MECHA-
MAIN)
1
2 REE1743 12P FFC (TUNER-
MAIN)
1
3 REE2058 22P FFC (PANEL-
MAIN)
1
4 REX1823 7P WIRE (USB-
MAIN)
1
5 REX1825 3P WIRE (MAIN-
MAIN)
1
6 REX1826 5P WIRE (HEAD-
PHONE-MAIN)
1
7 REX1827-1 9P WIRE (BLUE-
TOOTH-MAIN)
1
8 REX1526 15P WIRE (SMPS-
MAIN)
1
9 REX1541 2P WIRE (SMPS-
HEADPHONE)
1
11 RGK2605-S VOLUME RING
ORNAMENT
1
12 RGR0474D-A1 REAR CABINET 1
13 RGW0458-S TUNE KNOB 2
15 RKAX0042-K LEG CUSHION 4
16 RKM0766A-S TOP CABINET 1
17 RFKGMX100EGS FRONT PANEL
ASS’Y
1
18 RMB0993 CD LID SPRING 1
19 RMGX0033 CUSHION RUBBER 2
20 RMK0812-1 BOTTOM CHASSIS 1
21 RMK0898 INNER CHASSIS 1
22 RMQ2423 PC SHEET 1
23 RMQ2463 SMPS PC SHEET 1
24 RMQX0382-3 CD MECHA SUPPORT 2
25 RMX0539 SMPS SPACER 1
26 RSC1097 D-AMP HEAT
ABSORBER
1
27 RSC1305 THERMAL PAD 1
28 RMN1059 FL HOLDER 1
29 XTB3+8JFJ SCREW 14
30 RHD26046-L SCREW 5
31 RHD30007-1SJ SCREW 2
33 RHD30111-31 SCREW 3
34 RHDX031008 SCREW 2
35 RHDX30005-J SCREW 7
36 XTB3+8JFJ-J SCREW 2
37 RMZX1022-1 PCB SPACER 2
38 RMN1115 GROUND SPRING
(ET9000)
1
39 RMC0667 EARTH SPRING
(ET4201)
1
40 RHD26043-1 SCREW 2
41 RGW0431-S VOLUME KNOB 1
44 REE2059 24P FFC (RELAY-
MAIN)
1
45 REX1824 7P SHIELDED WIRE
(RELAY-MAIN)
1
46 REX1828 1P ALL MODULE
ANTENNA WIRE
1
47 REX1850 2P GROUND WIRE 1
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
To Next Page
