9 Service Position
Note: For description of the disassembly procedures, see the Section 8
9.1. Checking of Panel Block,
Relay, Antenna P.C.B. and ALL-
PLAY Module
Step 1 : Remove Top Cabinet.
Step 2 : Remove Front Panel Unit.
Step 3 : Remove Panel Block.
Step 4 : Remove Antenna P.C.B..
Step 5 : Place Panel Block on a support block.
Step 6 : Connect 5P wire at connector (CN4300) on Main
P.C .B . .
Step 7 : Connect 21P FFC at connector (CN8001) on Main
P.C .B . .
Step 8 : Place Antenna P.C.B. on an Insulated Material.
Step 9 : Connect antenna wire at connector (J2) on ALLPLAY
Module.

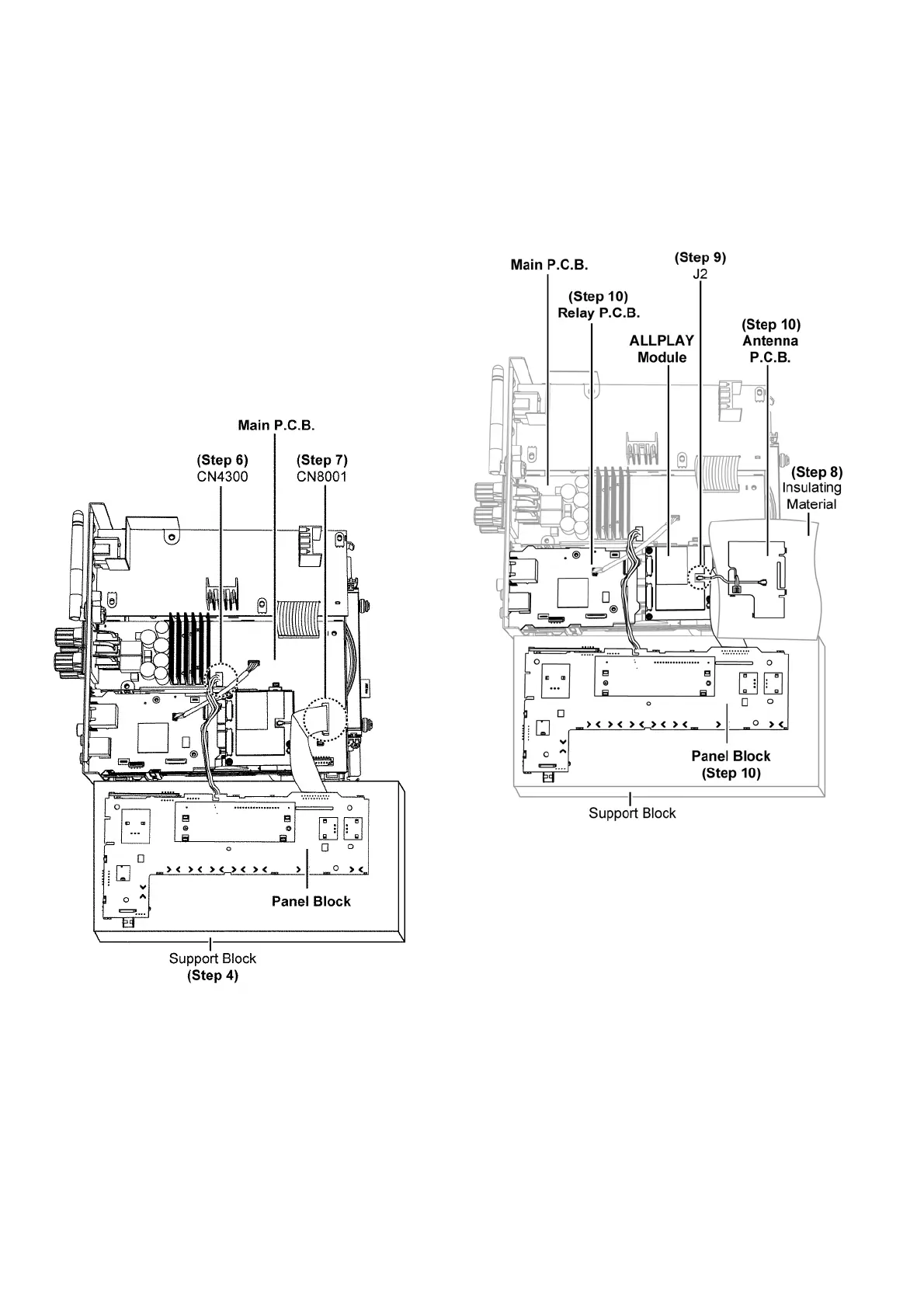

Step 10 : Check Panel Block, Relay, Antenna P.C.B. and
ALLPLAY Module according to the diagram shown.
