8.8. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”

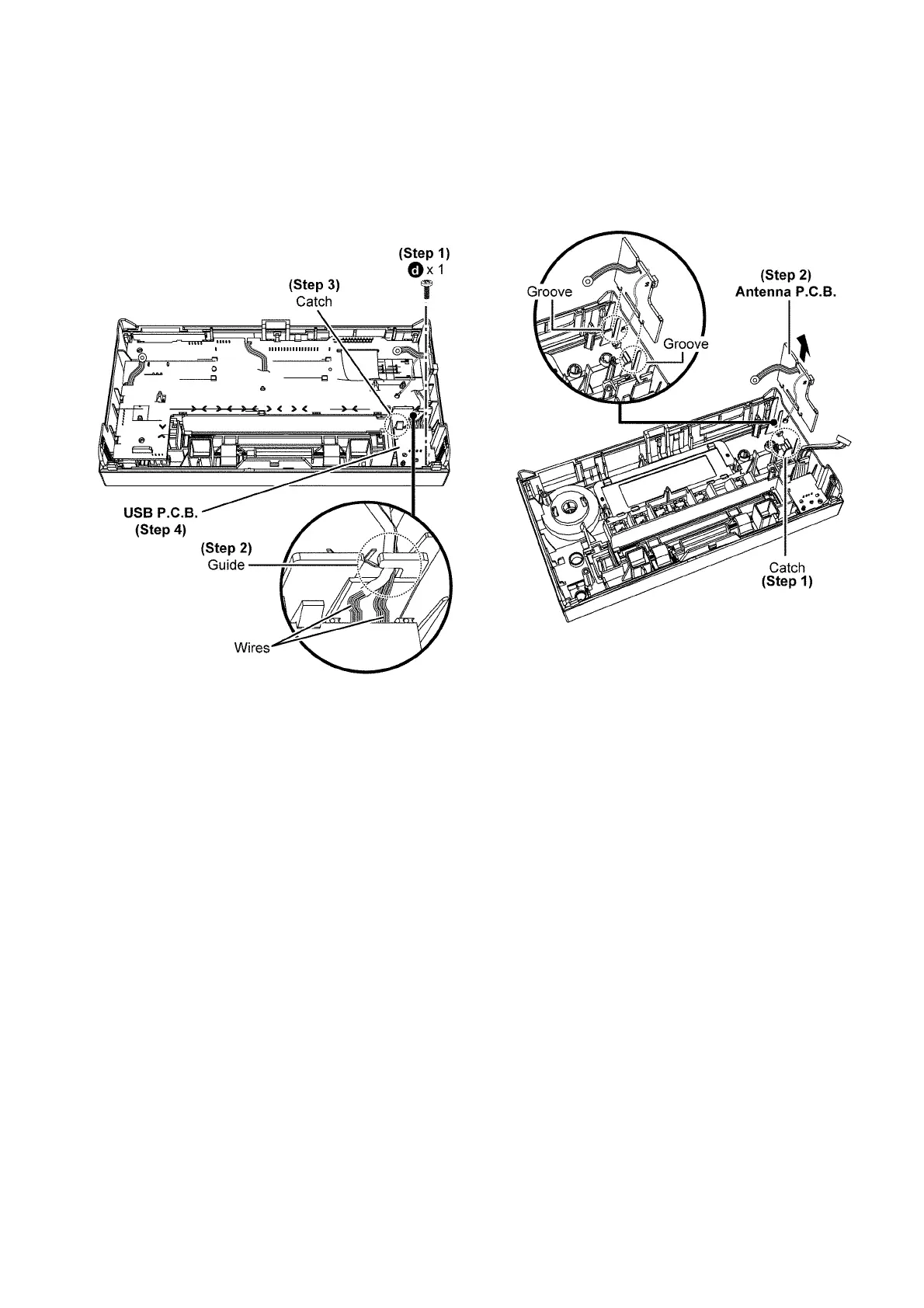

Step 1 : Remove screw.
Step 2 : Release wires from the guide.
Step 3 : Release catch.
Step 4 : Remove USB P.C.B..
8.9. Disassembly of Antenna P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel Block”
Step 1 : Release catch.
Step 2 : Remove Antenna P.C.B..
