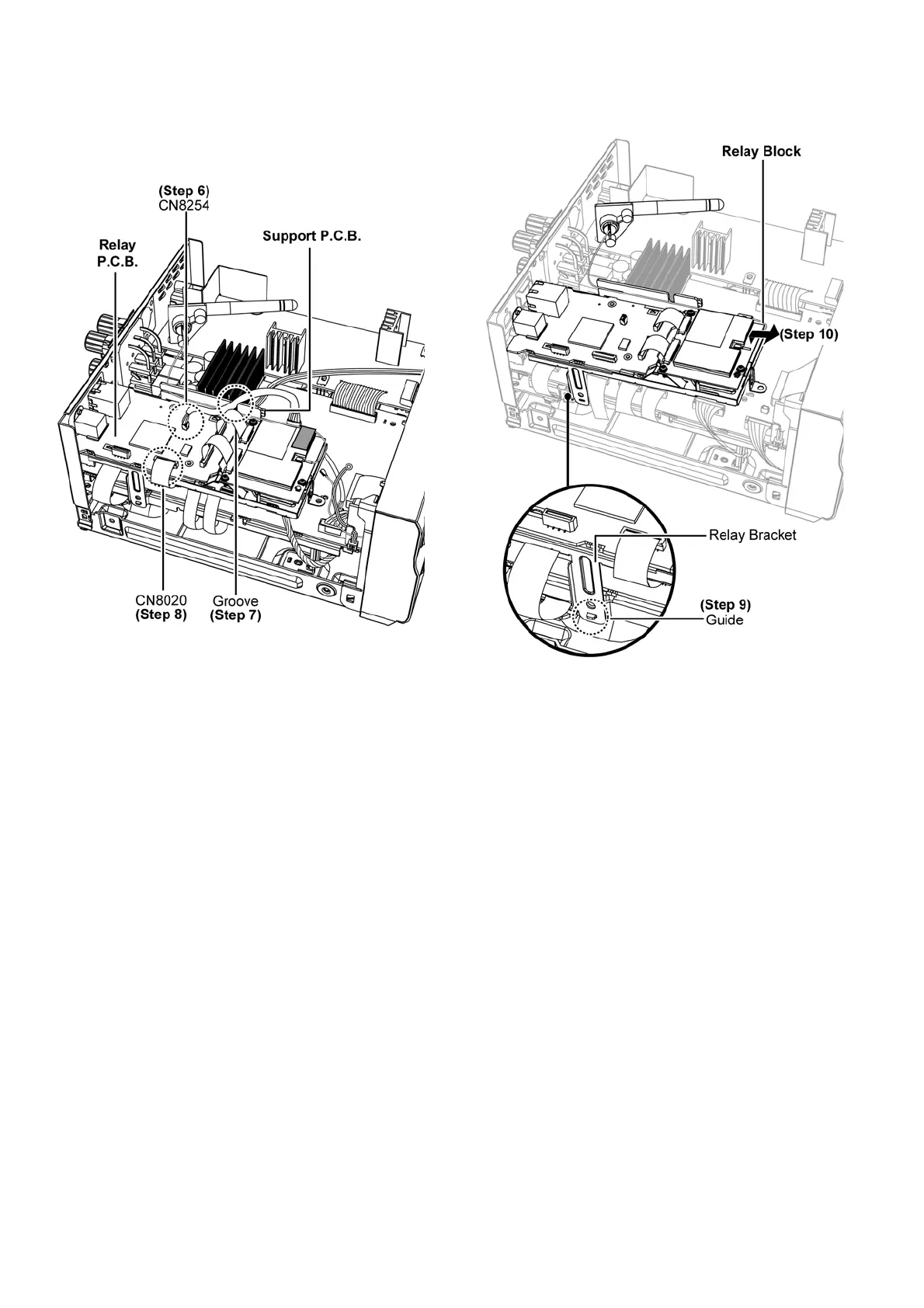

Step 6 : Detach 7P wire at connector (CN8254) on Relay
P.C .B . .
Step 7 : Release 7P wire through groove at Support P.C.B..
Step 8 : Detach 24P FFC at connector (CN8020) on Relay
P.C .B . .
Step 9 : Release guide.
Step 10 : Lift up and remove Relay Block.
