Caution : During assembling, insert the Relay Block &
ensure seated onto the guides.

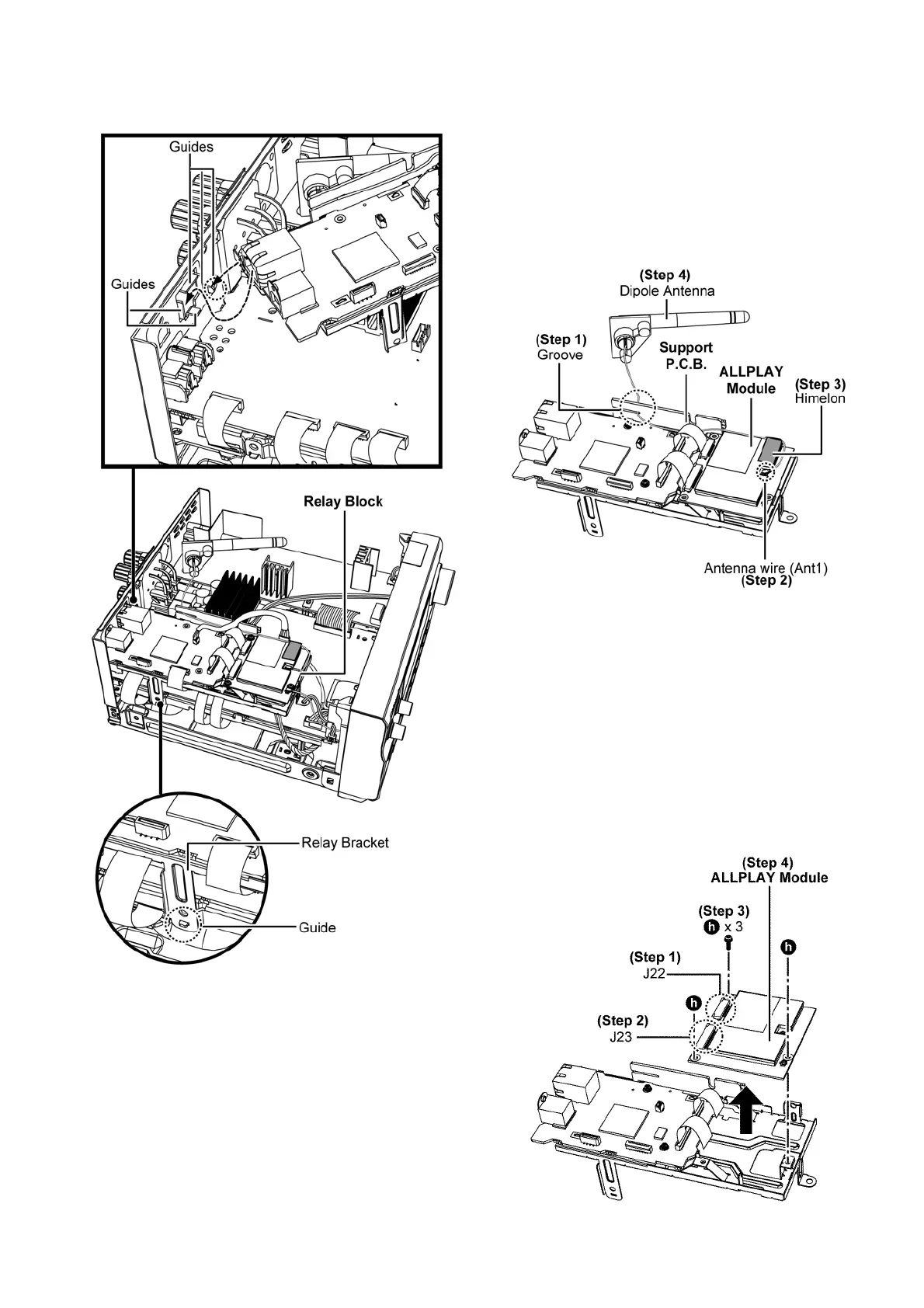

8.5.1. Disassembly of Dipole Antenna
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Relay Block”
Step 1 : Release antenna wire from the groove.
Step 2 : Detach antenna wire at connector (Ant1) on ALLPLAY
Module.
Step 3 : Lift up himelon.
Step 4 : Remove Dipole Antenna.
8.5.2. Disassembly of ALLPLAY Module
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Relay Block”
• Refer to “Disassembly of Dipole Antenna”
Step 1 : Detach 20P FFC at connector (J22) on ALLPLAY Mod-
ule.
Step 2 : Detach 30P FFC at connector (J23) on ALLPLAY Mod-
ule.
Step 3 : Remove 3 screws.
Step 4 : Remove ALLPLAY Module.
To Next Page
