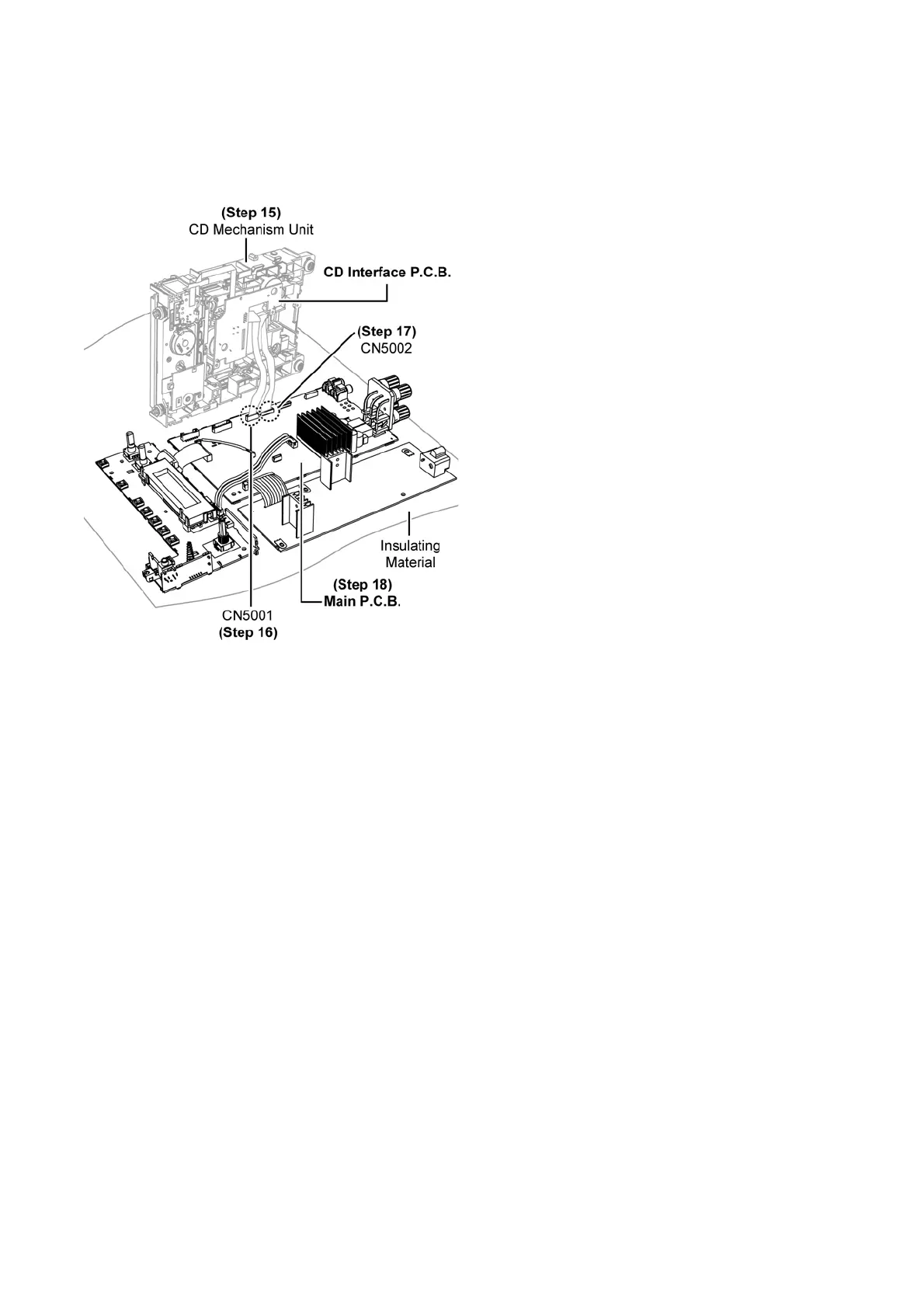

Step 15 : Place CD Mechanism Unit on an insulated material.
Step 16 : Connect 10P FFC at connector (CN5001) on Main
P.C.B..
Step 17 : Connect 24P FFC at connector (CN5002) on Main
P.C.B..
Step 18 : Check Main according to the diagram shown.
