8.5. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet”

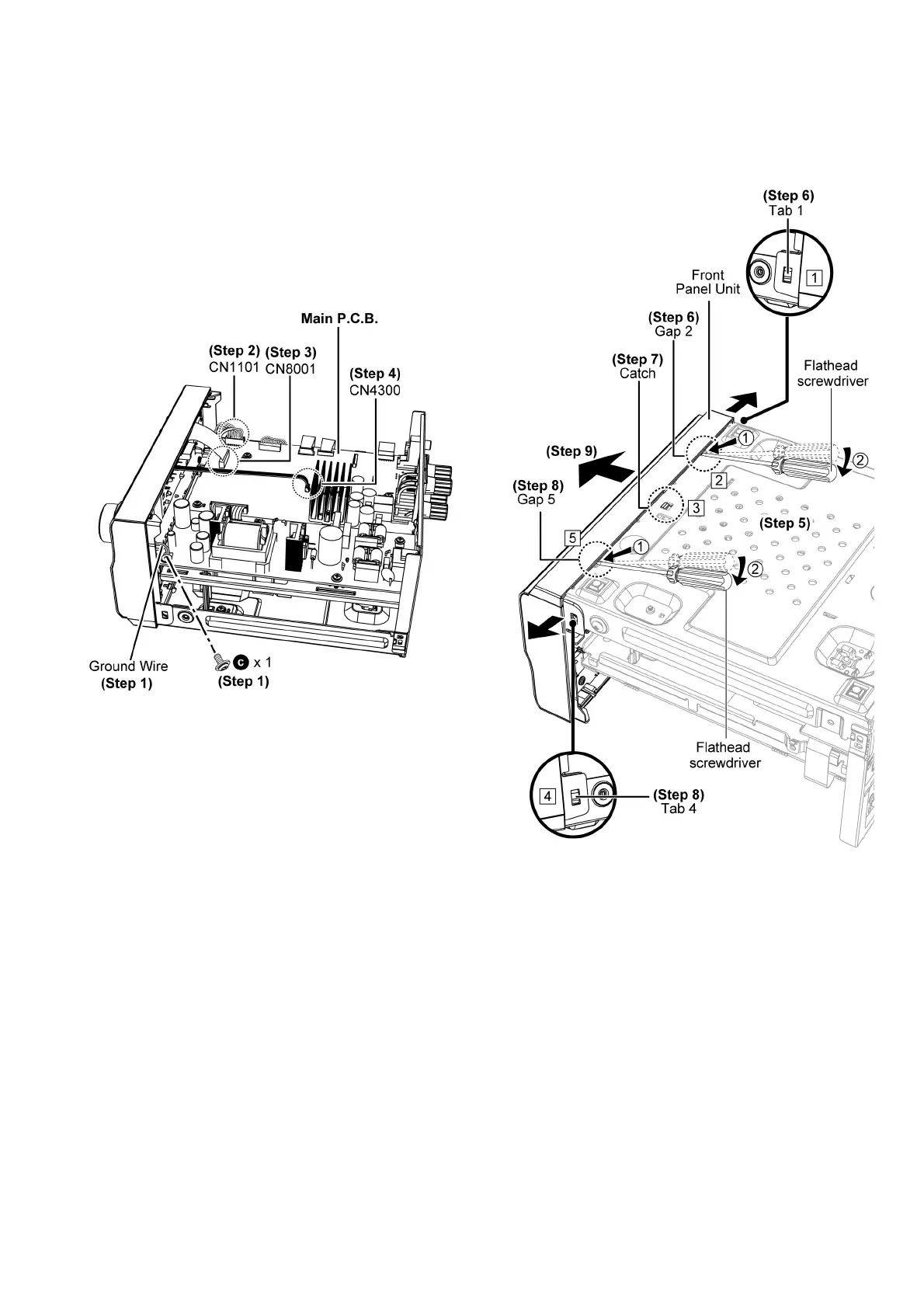

Step 1 : Remove screw and detach ground wire.
Step 2 : Detach 7P wire at connector (CN1101) on Main P.C.B..
Step 3 : Detach 19P FFC at connector (CN8001) on Main
P. C . B . .
Step 4 : Detach 5P wire at connector (CN4300) on Main P.C.B..
Step 5 : Upset the set.
Step 6 : Release tab 1 and gap 2.
Step 7 : Press to release catches.
Step 8 : Release tab 4 and gap 5.
Step 9 : Slightly lift forward and remove Front Panel Unit.
