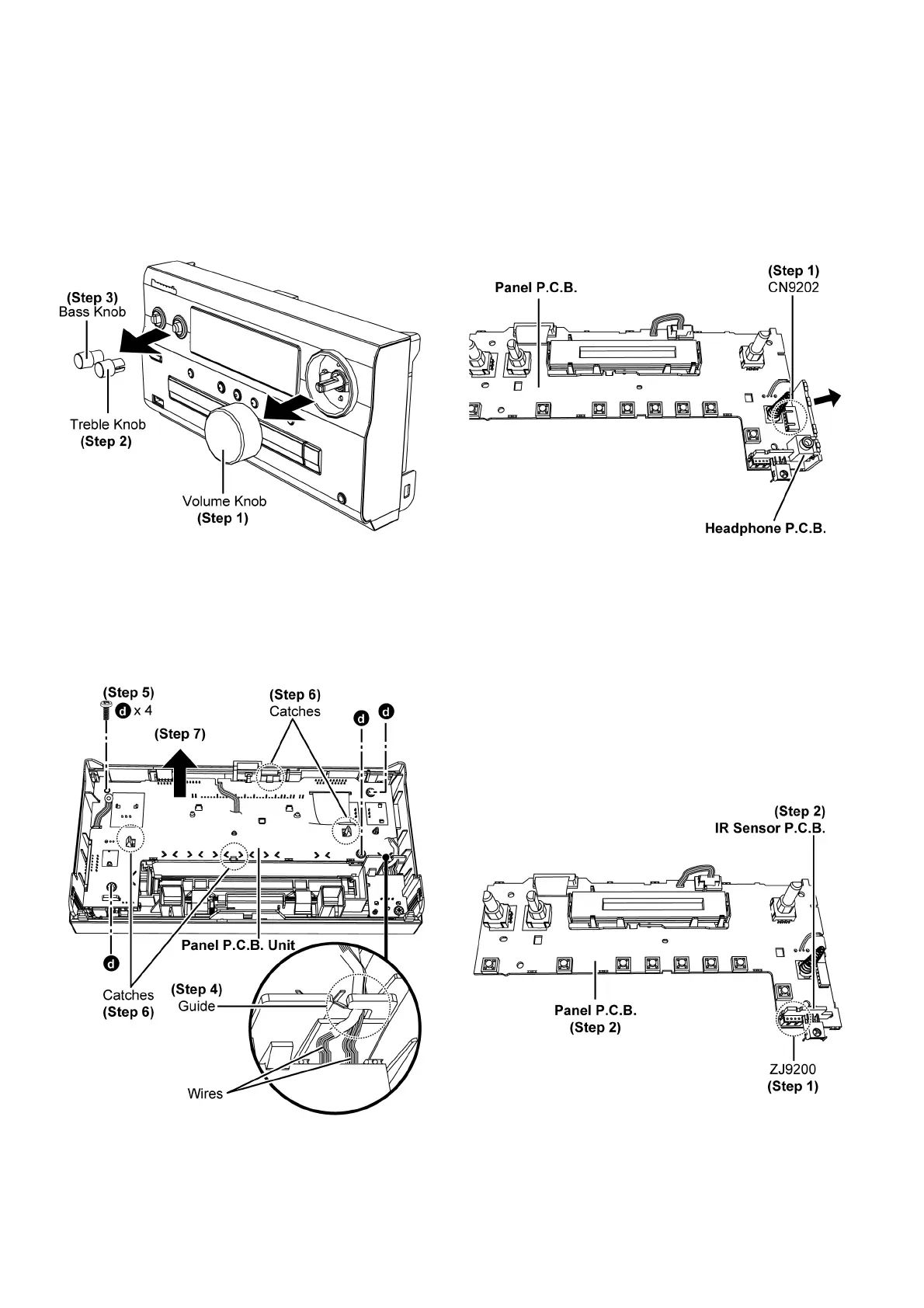

8.6. Disassembly of Panel P.C.B.
Unit
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
Step 1 : Remove Volume Knob.
Step 2 : Remove Treble Knob.
Step 3 : Remove Bass Knob.
Step 4 : Release wires from the guide.
Step 5 : Remove 4 screws.
Step 6 : Release catches.
Step 7 : Remove Panel P.C.B. Unit.
8.7. Disassembly of Headphone
P. C. B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel P.C.B. Unit”
Step 1 : Detach and remove Headphone P.C.B. at connector
(CN9202) from Panel P.C.B..
8.8. Disassembly of Panel & IR
Sensor P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel P.C.B. Unit”
• Refer to “Disassembly of Headphone P.C.B.”
Step 1 : Detach IR Sensor P.C.B. at connector (ZJ9200) from
Panel P.C.B..
Step 2 : Remove IR Sensor P.C.B. and Panel P.C.B..
