8.15. Replacement of Traverse Unit
• Refer to “Disassembly of CD Mechanism Unit”
8.15.1. Disassembly of Traverse Unit
Caution : Refer to “2.4 Handling Precaution for Traverse
Unit” to prevent static damage to the Optical Pickup Unit.
Note:
1. When the optical pickup unit is defective, the overall
traverse unit needs replacement.
2. Please note that appropriate actions need to be taken to
prevent static damage.

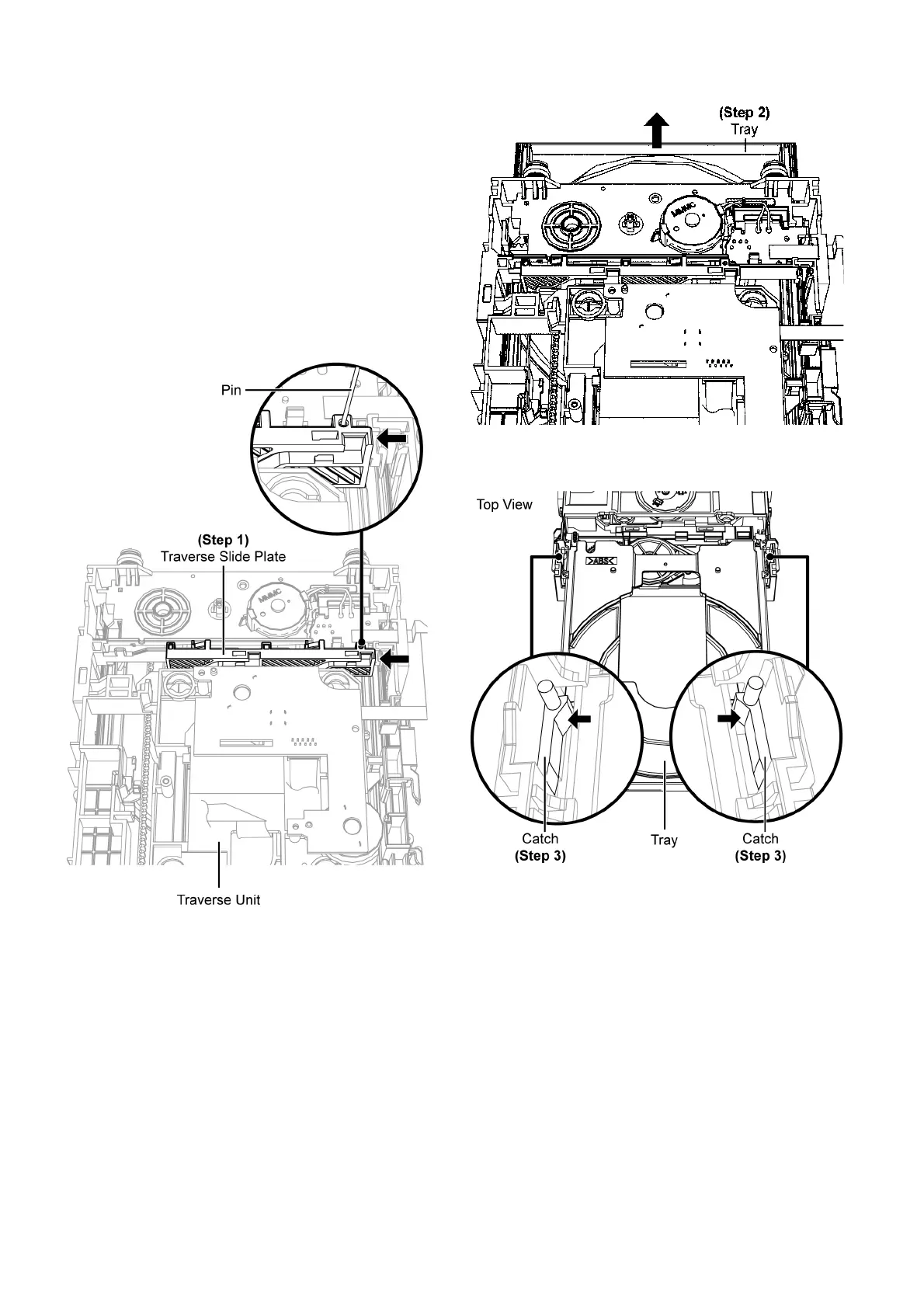

Step 1 : Use a pin to slide Traverse Slide Plate until it come to
a stop.
Step 2 : Slide tray out fully.
Step 3 : Release catches & remove tray.
