Panasonic SA-PMX82EB - Page 35

35

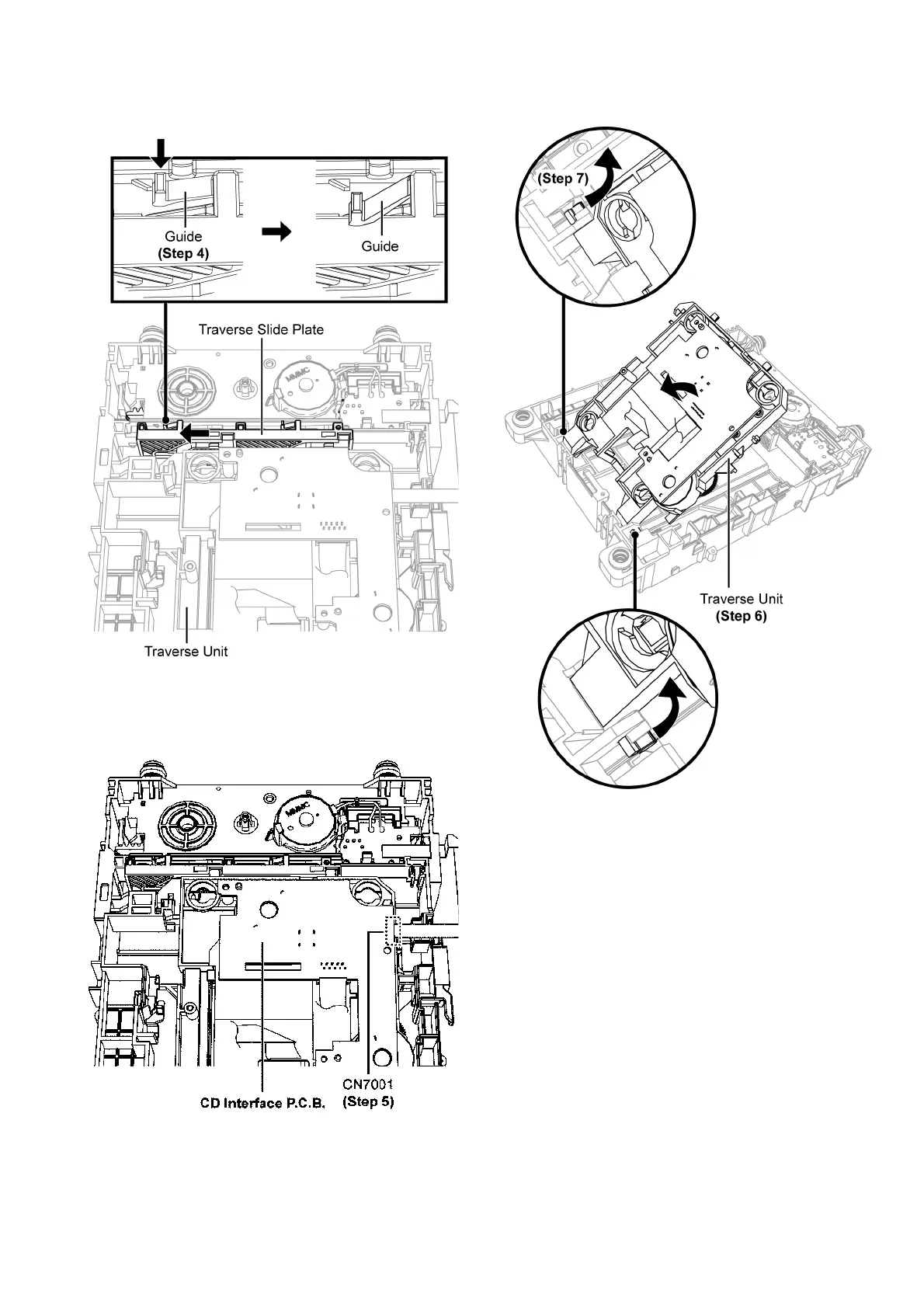

Step 4 : Release the guide as shown & slide Traverse Slide
Plate to the end.
Step 5 : Detach 5P FFC at the connector (CN7001) on CD
Interface P.C.B..
Step 6 : Lift up Traverse Unit by approximately 45°.
Step 7 : Remove traverse unit as arrow shown.
