Panasonic SA-PMX82EB - Electrical Replacement Parts List

75

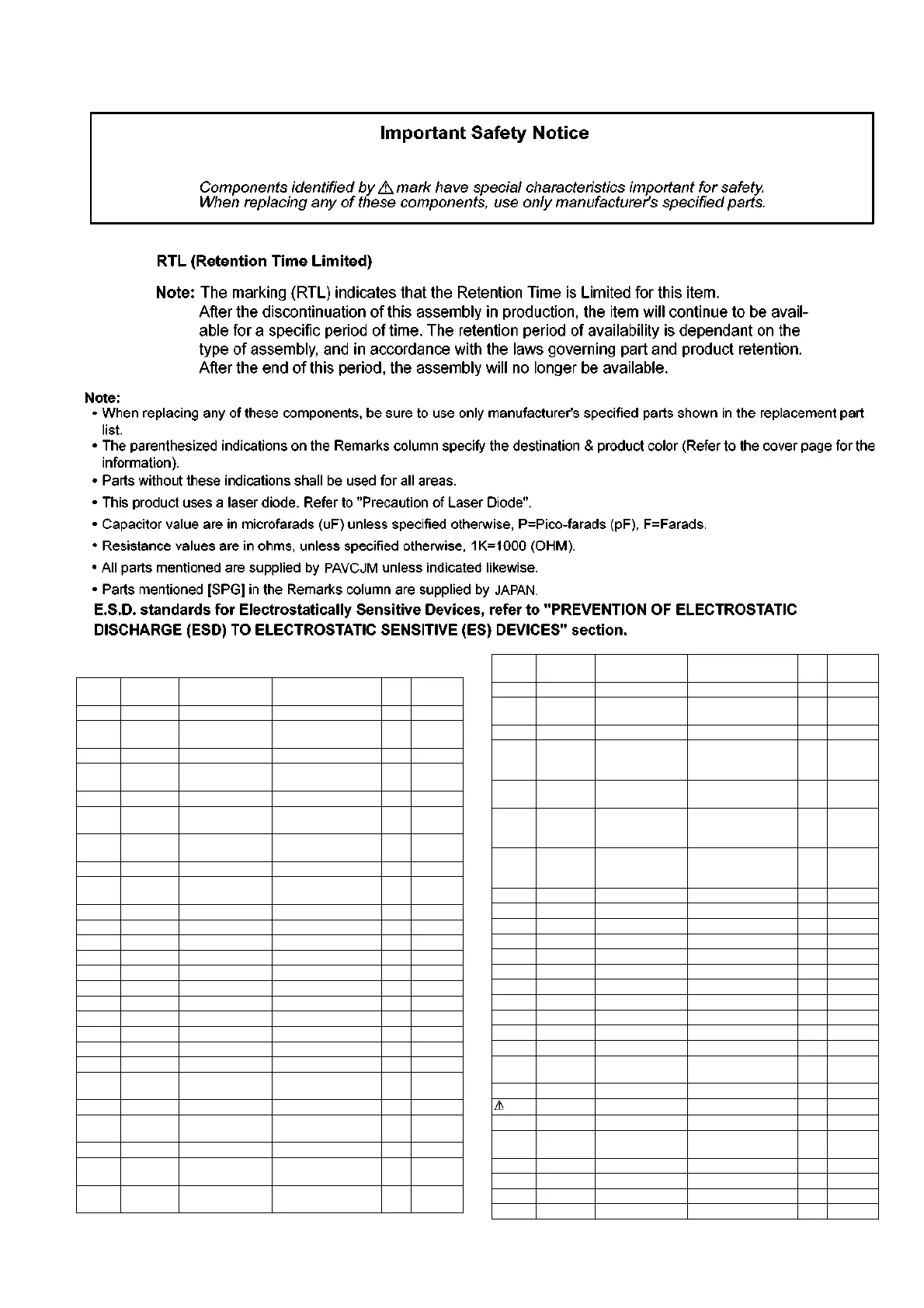

15.5. Electrical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 TNPA6413AD MAIN P.C.B 1 82EBK,
82GNS
PCB1 TNPA6413AM MAIN P.C.B 1 82MEBK
PCB1 TNPA6413AE MAIN P.C.B 1 82EGK,
82EGS
PCB1 TNPA6413AF MAIN P.C.B 1 84EGK,
84EGS
INTEGRATED CIR-
CUITS
IC1101 C0DBAYY02695 IC 1 (E.S.D)
IC1102 C0DBAYY02695 IC 1 (E.S.D)
IC1103 C0DBAYY02695 IC 1 (E.S.D)
IC1104 C0DBEYY00146 IC 1 (E.S.D)
IC1106 C0DBGYY06507 IC 1 (E.S.D)
IC1107 C0DBGYY03909 IC 1 (E.S.D)
IC1108 C0DBGYY03909 IC 1 (E.S.D)
IC1110 C0DBGYY00977 IC 1 (E.S.D)
IC8001 C1AB00004475 IC 1 (E.S.D)
PRINTED CIRCUIT
BOARDS
PCB2 TNPA6415AD BLUETOOTH PCB 82EBK,
82GNS
PCB2 TNPA6415AM BLUETOOTH PCB 82MEBK
PCB2 TNPA6415AE BLUETOOTH PCB 82EGK,
82EGS
PCB2 TNPA6415AF BLUETOOTH PCB 84EGK,
84EGS
PRINTED CIRCUIT
BOARD
PCB3 TNPA6416AD USB P.C.B 1 (RTL)
82EBK,
82GNS
PCB3 TNPA6416AM USB P.C.B 1 (RTL)
82MEBK
PCB3 TNPA6416AE USB P.C.B 1 (RTL)
82EGK,
82EGS
PCB3 TNPA6416AF USB P.C.B 1 (RTL)
84EGK,
84EGS
CONNECTORS
CN6100 K1KA07BA0047 7P CONNECTOR 1
CN6101 K1FY104A0015 USB CONNECTOR 1
RESISTOR
R6100 D0GAR00J0005 0 1/16W 1
R6101 D0GAR00J0005 0 1/16W 1
PRINTED CIRCUIT
BOARDS
PCB4 TNPA6420 SMPS P.C.B 1 (RTL)
INTERGRATED CIR-
CUITS
IC1111 C0DBBYY00062 IC 1
IC2900 C0DBAYY01282 IC 1
IC5801 C0DAAYY00072 IC 1
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
