12 Schematic Diagram
12.1. Schematic Diagram Notes
(All schematic diagrams may be modified at any time with
the development of new technology)
Notes:
• Important safety notice:
Components identified by mark have special characteris-
tics important for safety.
Furthermore, special parts which have purposes of fire-retar-
dant (resistors), high quality sound (capacitors), low-noise
(resistors), etc are used.
When replacing any of components, be sure to use only
manufacturer’s specified parts shown in the parts list.
• In case of AC rated voltage Capacitors, the part no. and val-
ues will be indicated in the Schematic Diagram.
AC rated voltage capacitors:
C5700, C5701, C5702, C5704, C5705, C5706
• Resistor
Unit of resistance is OHM [Ω] (K=1,000, M=1,000,000).
• Capacitor
Unit of capacitance is μF, unless otherwise noted. F=Farads,
pF=pico-Farad.
• Coil
Unit of inductance is H, unless otherwise noted.
•
*
REF IS FOR INDICATION ONLY.

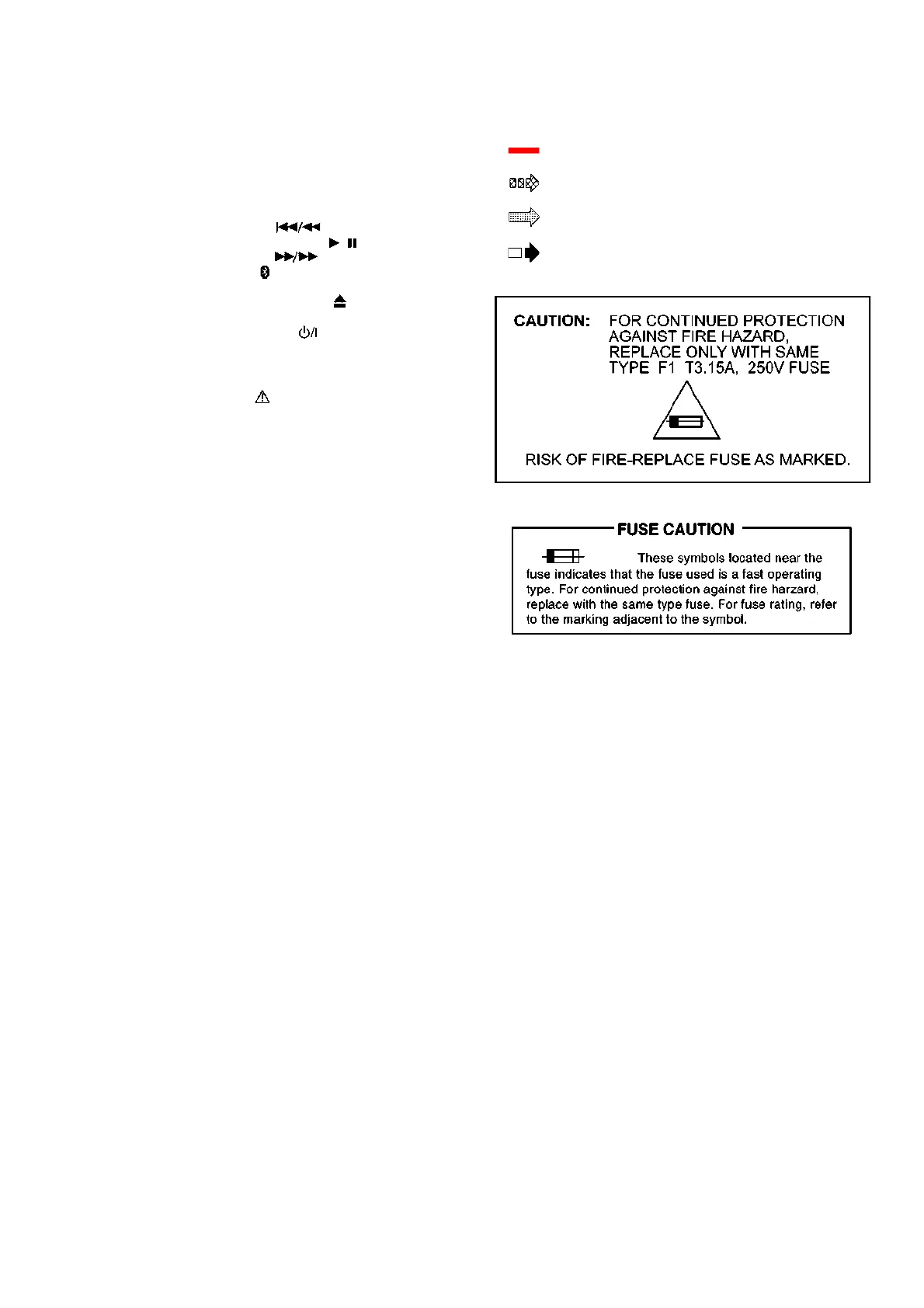

• Voltage and signal line
S7201: RESET switch.
S9203: RWD switch ( ).
S9204:
PLAY/PAUSE switch ( / ).
S9205: FWD switch ( ).
S9206:
BT switch ( -PAIRING).
S9207: STOP switch (Q).
S9208:
OPEN/CLOSE switch ( ).
S9209: SELECTOR switch.
S9210:
POWER switch ( ).
: +B Signal Line
: Audio Signal Line
: USB Signal Line
: DAB/FM Signal Line
