8.16. Disassembly of Bluetooth
P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
• Refer to “Disassembly of Inner Chassis”
• Refer to “Disassembly of DAB P.C.B.”
• Refer to “Disassembly of CD Mechanism Unit”

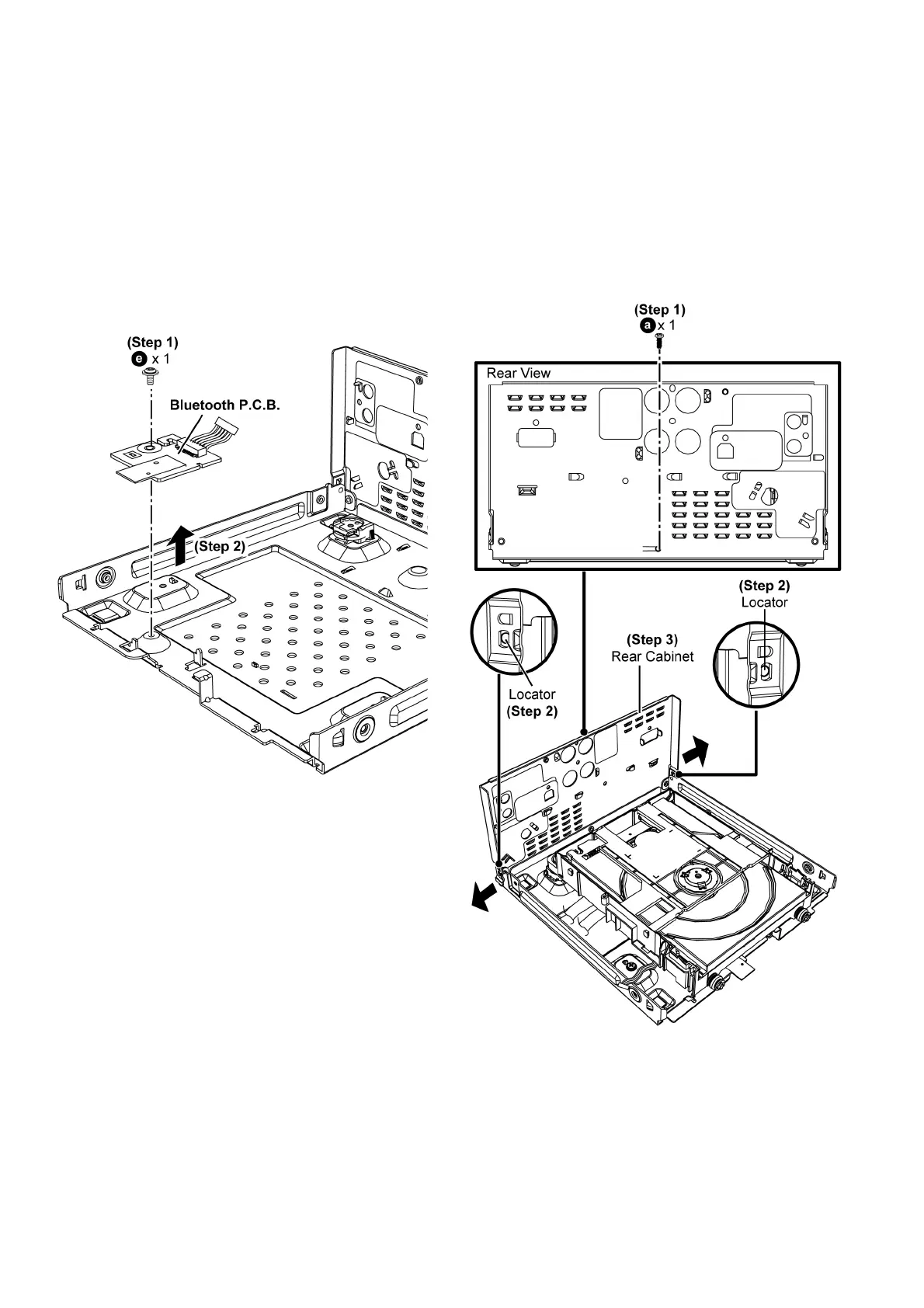

Step 1 : Remove screw.
Step 2 : Remove Bluetooth P.C.B..
8.17. Disassembly of Rear Cabinet
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
• Refer to “Disassembly of Inner Chassis”
• Refer to “Disassembly of DAB P.C.B.”
Step 1 : Remove screw.
Step 2 : Release locators.
Step 3 : Remove Rear Cabinet.
