8.13. Disassembly of DAB P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
• Refer to “Disassembly of Inner Chassis”

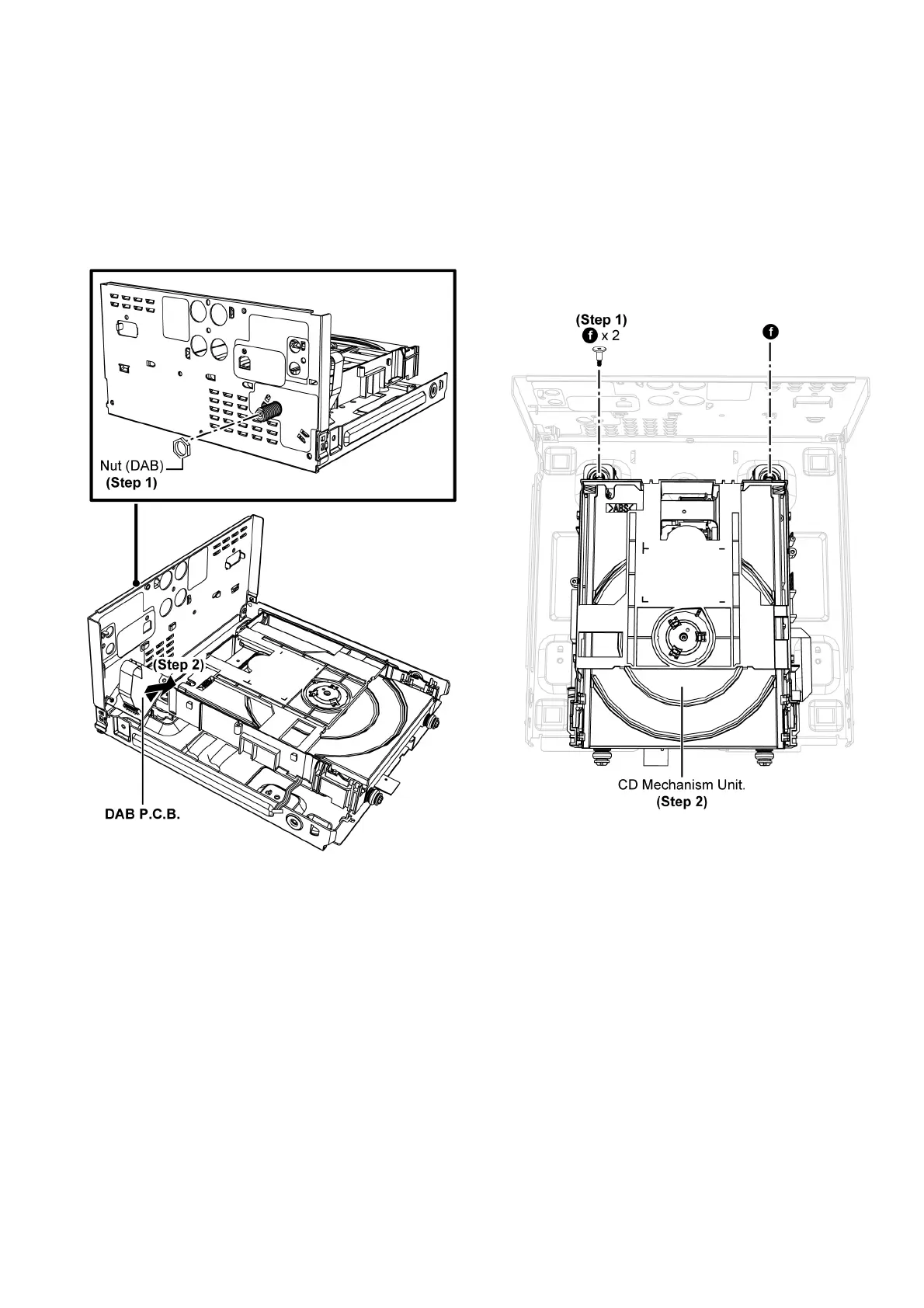

Step 1 : Remove Nut (DAB).
Step 2 : Lift up to remove DAB P.C.B..
8.14. Disassembly of CD
Mechanism Unit
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
• Refer to “Disassembly of Inner Chassis”
• Refer to “Disassembly of DAB P.C.B.”
Step 1 : Remove 2 screws.
Step 2 : Remove CD Mechanism Unit.
