11 Wiring Connection Diagram
SA-PMX82EB/EG/GN, SA-PMX82MEB, SA-PMX84EG

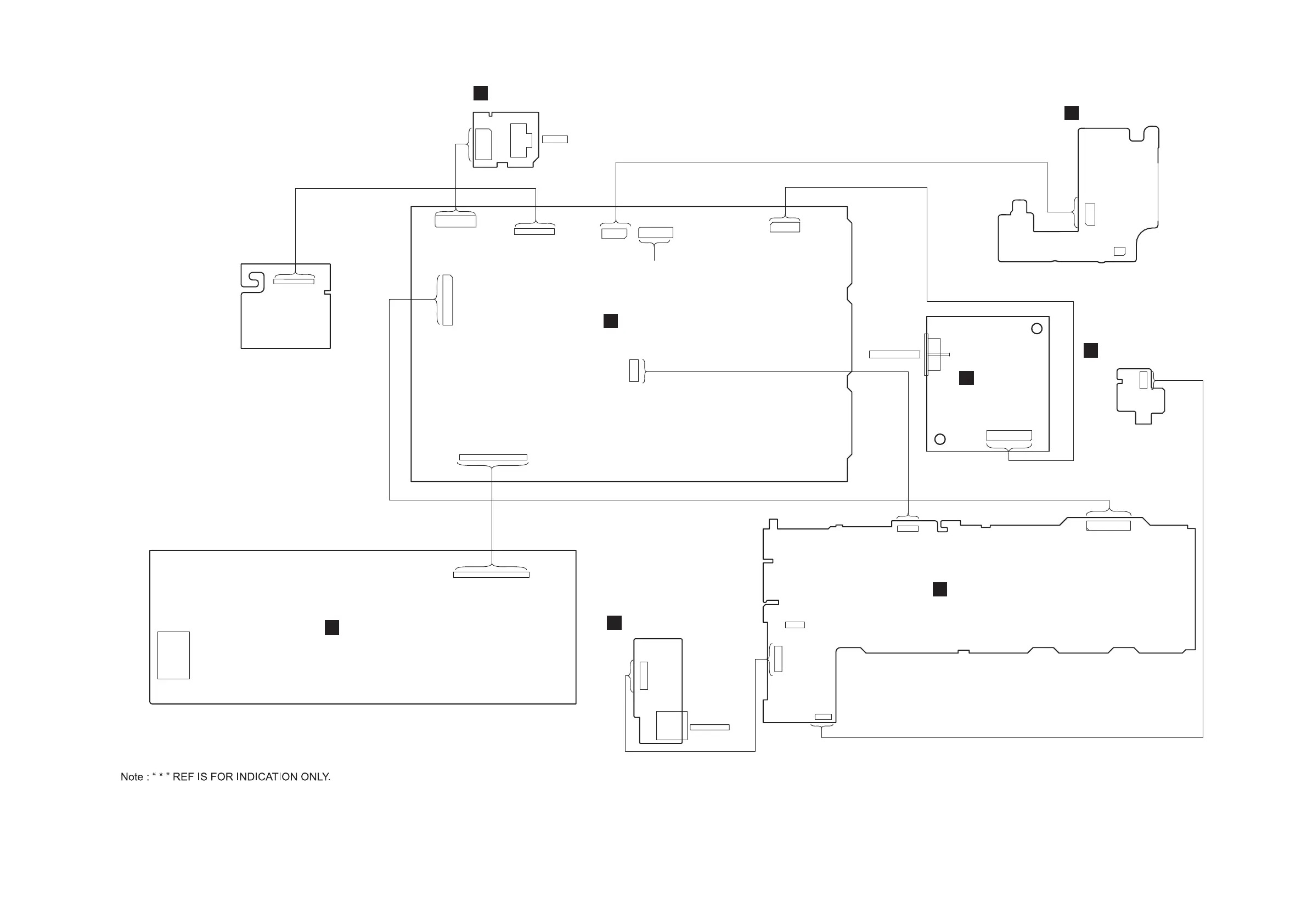

WIRING CONNECTION DIAGRAM
TO LOADING P.C.B.
(CD MECHANISM UNIT)
H2015
15P
P5701
G
SMPS P.C.B.
C
USB P.C.B.
B
CD INTERFACE P.C.B.
A
MAIN P.C.B. *
D
PANEL P.C.B.
E
IR SENSOR P.C.B.
F
HEADPHONE P.C.B.
BLUETOOTH P.C.B.
CN6100
7P 4P
CN7002
CN7001
10P
5P
CN7230
9P
CN8001
CN1101
CN8003
CN5001
CN5002
CN8008
19P
7P
9P
10P
24P
10P
CN4300
5P
CN1100
15P
ZJ920
4P
7P
6P
TO OPTICAL PICKUP UNIT
(CD MECHANISM UNIT)
CN6101
USB PORT
HEADPHONE
JK3000
P3000
CN9200
ZJ9200
P9100
P9200
CN9202
(TO GND)
19P
5P
2P
6P
4P
220V ~ 240V
50Hz
CN1
JK1
DAB ANTENNA UNIT
10P
H
DAB P.C.B.
