Panasonic SA-PMX82EB - Page 37

37

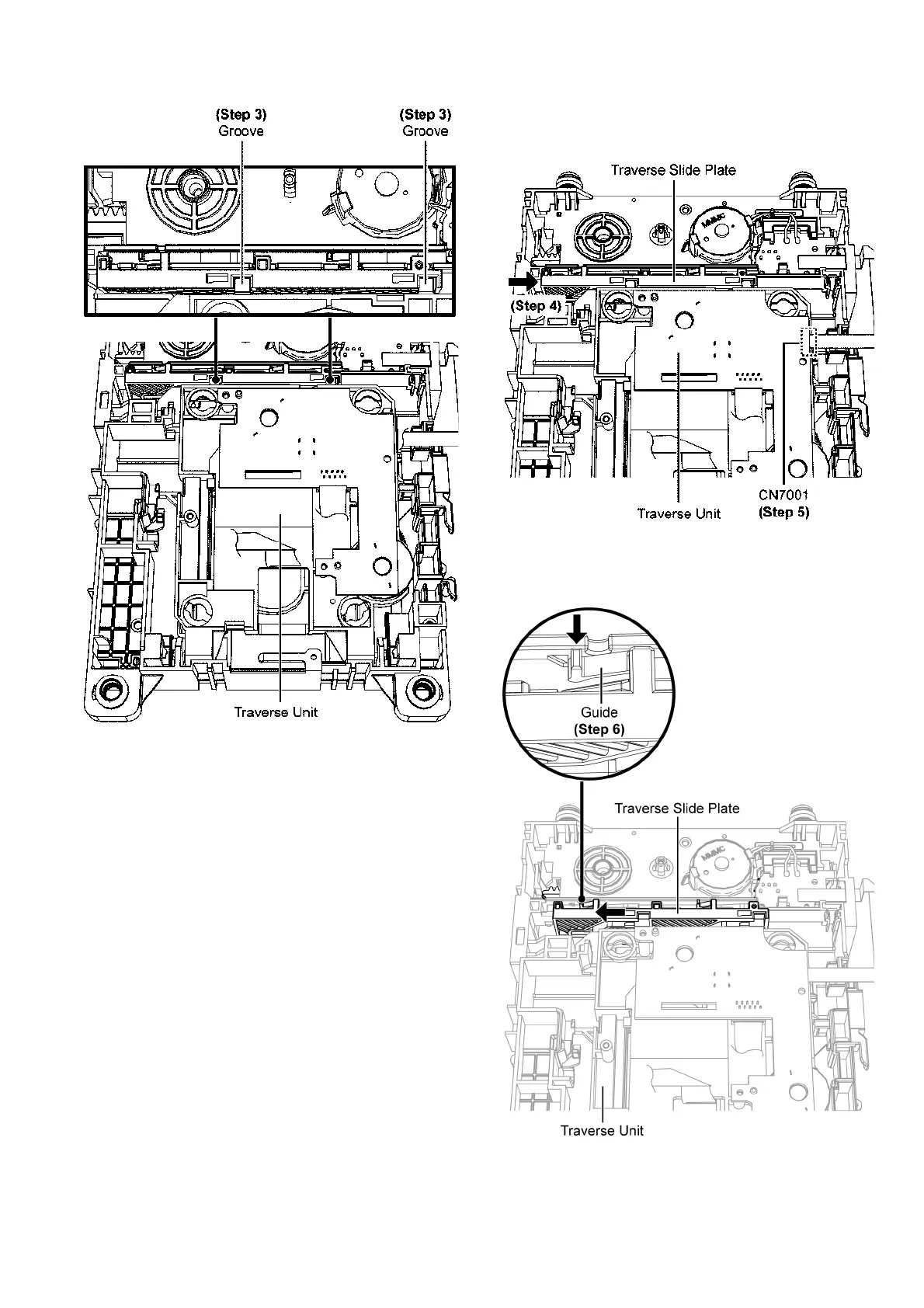

Step 3 : Insert Traverse Unit properly into the grooves. Step 4 : Slide Traverse Slide Plate to lock the Traverse Unit as
shown.
Step 5 : Connect 5P FFC at connector (CN7001) on CD Inter-
face P.C.B..
Step 6 : Slide Traverse Slide Plate until it stop at the guide.
