Attach the wall mount brackets to the wall.
Complete all the necessary connections to the main unit. (> 16 to 19)
≥ Connect the AC mains lead cord to the main unit, but do not connect it to the household mains socket until the installation is
completed.
Attach the cord to the main unit.

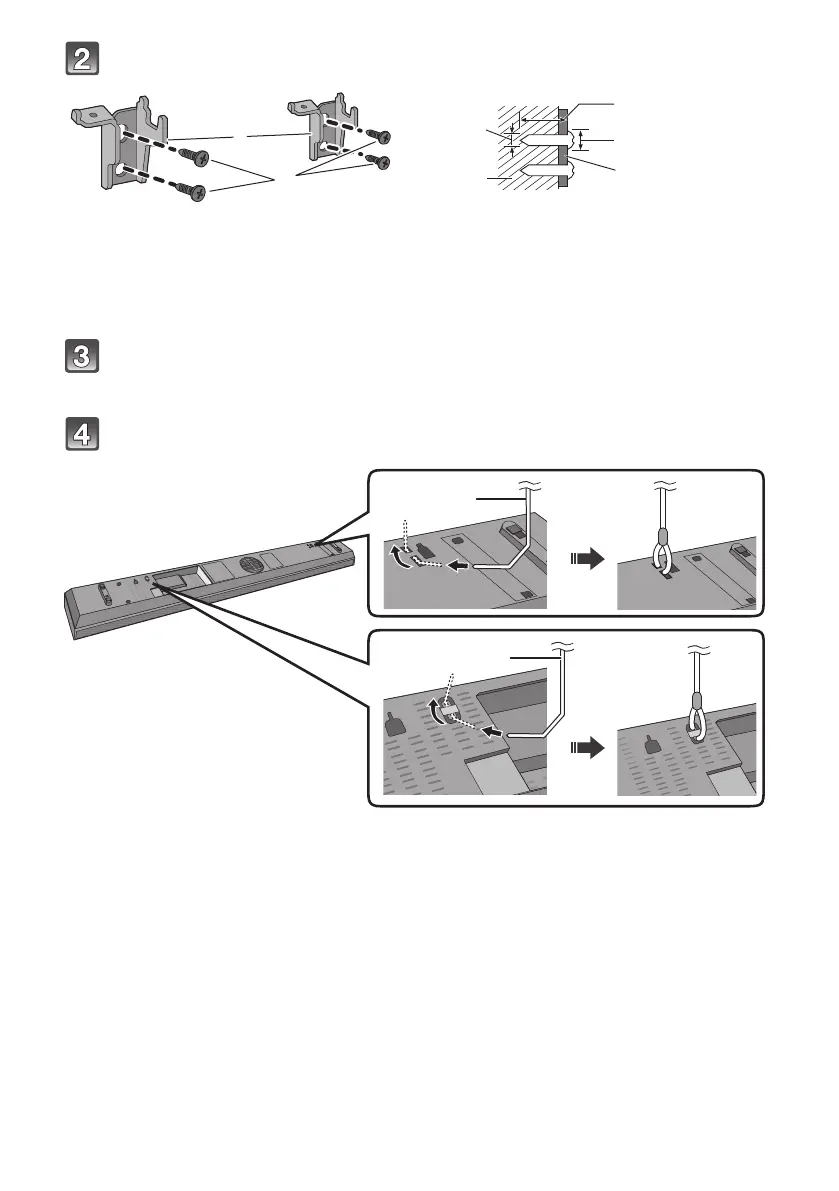

A Wall mount bracket (supplied)
B Screws
C At least 30 mm
D ‰4.0 mm
E ‰7.5 mm to ‰9.4 mm
F Wall
G Wall mount bracket (supplied)
H Cord*
* If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45
o
(as illustrated above).









SC-HTB170EGEBGN_RQT9772-B.book 14 ページ ２０１３年２月４日 月曜日 午前９時５分

Panasonic SC-HTB170 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	80 mm
Number of woofer drivers	2
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
Subwoofer type	Active subwoofer
Receiver included	No
Number of products included	1 pc(s)
Product color	Black
Recommended usage	TV
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	950 x 105 x 66 mm
Connectivity technology	Wired
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	22 W

Weight and Dimensions

Soundbar weight	3400 g
