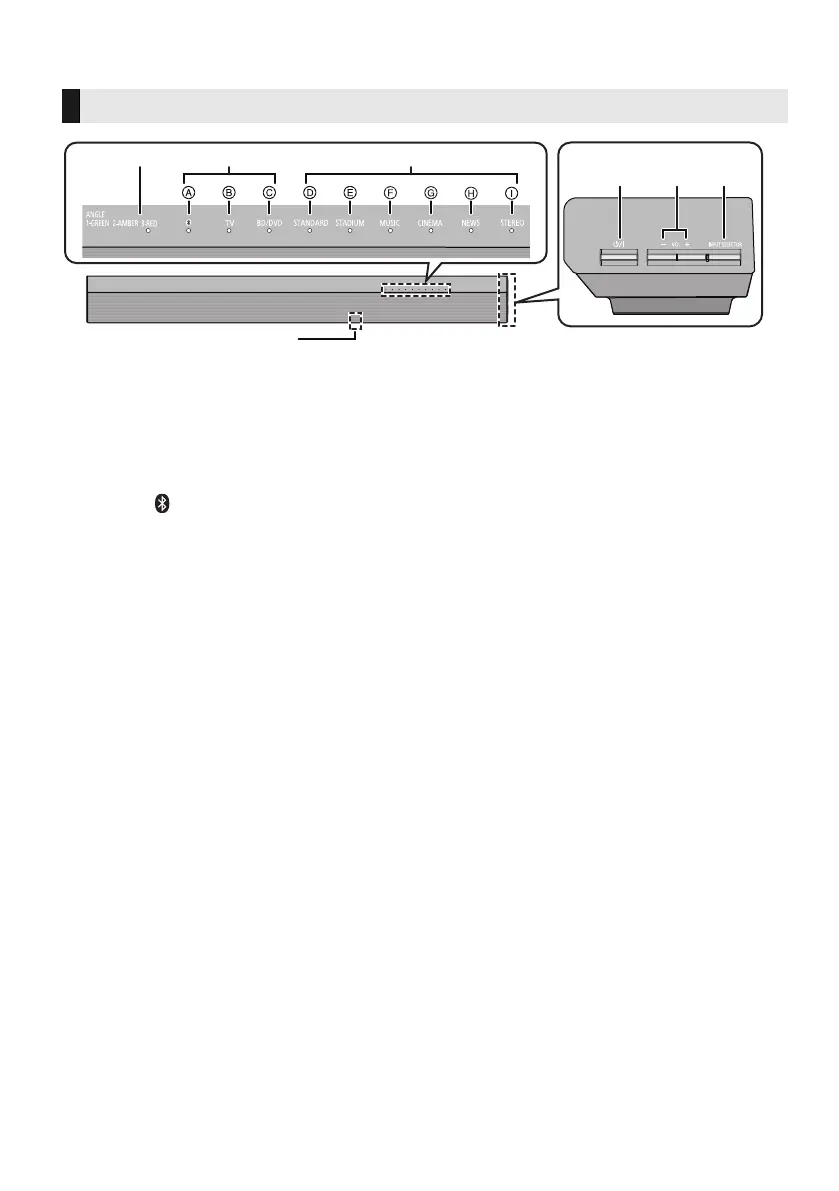

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of this system
3 Select the input source
“TV”----------------#“BD/DVD”
^-------- “”(--------------}
4 Speaker angle indicator (> 9)
Angle 1: 0
o
tilt
Speaker angle indicator lights green
Angle 2: Tilted at 30
o
Speaker angle indicator lights amber
Angle 3: Tilted at 80
o
/90
o
Speaker angle indicator lights red
5 Input selector indicators*
1
A Bluetooth
®
indicator
Lights blue when the Bluetooth
®
device is
the audio source
B TV indicator
Lights green when the TV is the audio
source
C BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
6 Sound mode indicators*
1
D STANDARD indicator
Lights when STANDARD is the current
sound mode
E STADIUM indicator*
2
Lights when STADIUM is the current
sound mode
F MUSIC indicator*
2
Lights when MUSIC is the current sound
mode
G CINEMA indicator
Lights when CINEMA is the current
sound mode
H NEWS indicator
Lights when NEWS is the current sound
mode
I STEREO indicator
Lights when STEREO is the current
sound mode
7 Remote control signal sensor (> 8)
This system (Front)
1
2
3
7
4 56
