Panasonic SC-HTB170 User Manual

Reference
RQT9772
29

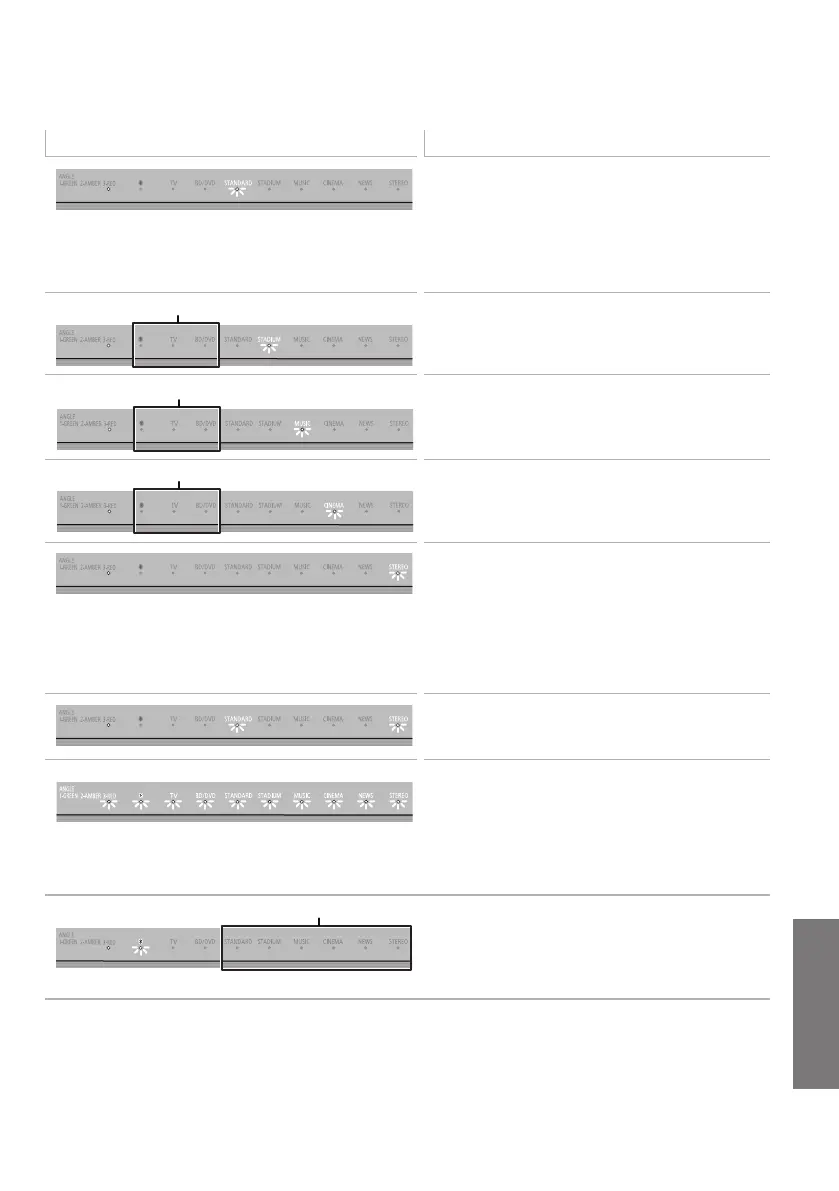

Indicator illumination
The indicators display the condition of this system by flashing. The indicator patterns illustrated below
are displayed during normal operational conditions. They do not refer to the indications of a problem.
*1
The indicator for the current status remains lit.
*2
The indicator blinks only when [SOUND] is pressed for more than 4 sec and the audio format is PCM.
Indicator Description
The indicator blinks for 10 sec.
≥
When the Bluetooth
®
communication is mode 1 ( > 23)
The indicator blinks for 20 sec.
≥ When 3D surround effect and clear-mode dialog
effect are on (> 24)
≥ When the dual audio setting is Main (> 23)
≥ When the auto gain control is on (> 23)
≥ When the auto standby function is on (> 24)
The indicator blinks for 5 sec.
≥ When the audio format is Dolby Digital (> 23)
The indicator blinks for 5 sec.
≥ When the audio format is DTS (> 23)
The indicator blinks for 5 sec.
≥ When the audio format is PCM*
2
(> 23)
The indicator blinks for 10 sec.
≥
When the Bluetooth
®
communication is mode 2 ( > 23)
The indicator blinks for 20 sec.
≥ When 3D surround effect and clear-mode dialog
effect are off (> 24)
≥ When the dual audio setting is Secondary
(SAP: Secondary Audio Program) (> 23)
≥ When the auto gain control is off (> 23)
≥ When the auto standby function is off (> 24)
The indicators blink for 20 sec.
≥ When the dual audio setting is Main and Secondary
(> 23)
The indicators blink for 10 sec.
≥ When the remote control code is changed (> 25)
The indicators blink once.
≥
When changing the setting (“To reduce the clear-mode
dialog effect”, “To turn off VIERA Link “HDAVI Control””,
and “To turn off the volume limitation”) (
> 25)
The indicators blink twice.
≥ When the main unit is reset (> 26)
Bluetooth
®
indicator blinks quickly.
≥ When the main unit is ready for pairing
Bluetooth
®
indicator blinks slowly.
≥ When the main unit is waiting to connect
Bluetooth
®
indicator turns on.
≥
When the main unit is connected with a Bluetooth
®
device
*1
*1
*1
*1
