Before use
RQT9772
7
1 AC IN terminal (> 19)
2 Ir SYSTEM terminal (> 18)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(> 16)
4 HDMI OUT terminal (ARC compatible)
(> 16)
5 HDMI IN terminal (> 17)
6 USB port (for service use only)
*1
The indicators will also blink in various conditions. (> 29)
*2
The indicator blinks for 5 sec when the main unit detects an audio format.
To manually verify the current audio format and the corresponding indicators, refer to page 23
(Audio format indicator).

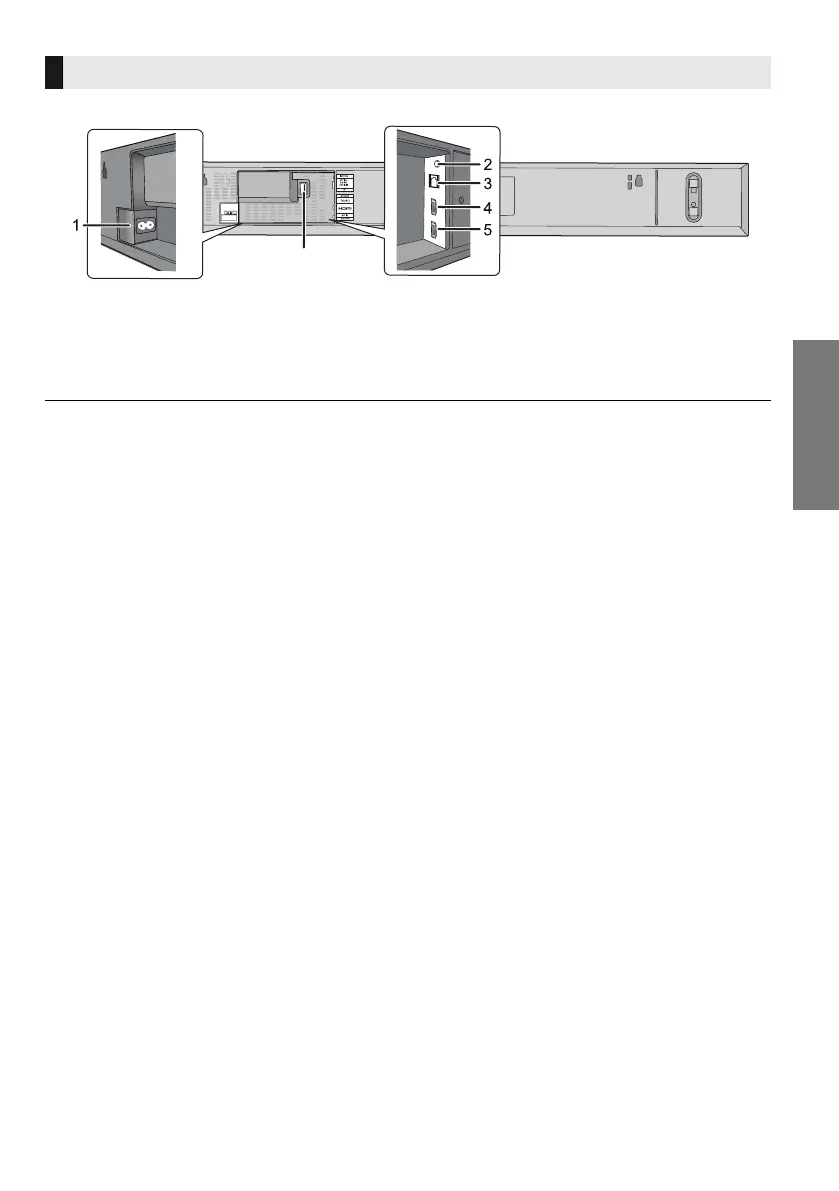

This system (Rear)
6
SC-HTB170EGEBGN_RQT9772-B.book 7 ページ ２０１３年２月４日 月曜日 午前９時５分

Panasonic SC-HTB170 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	80 mm
Number of woofer drivers	2
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
Subwoofer type	Active subwoofer
Receiver included	No
Number of products included	1 pc(s)
Product color	Black
Recommended usage	TV
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	950 x 105 x 66 mm
Connectivity technology	Wired
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	22 W

Weight and Dimensions

Soundbar weight	3400 g
