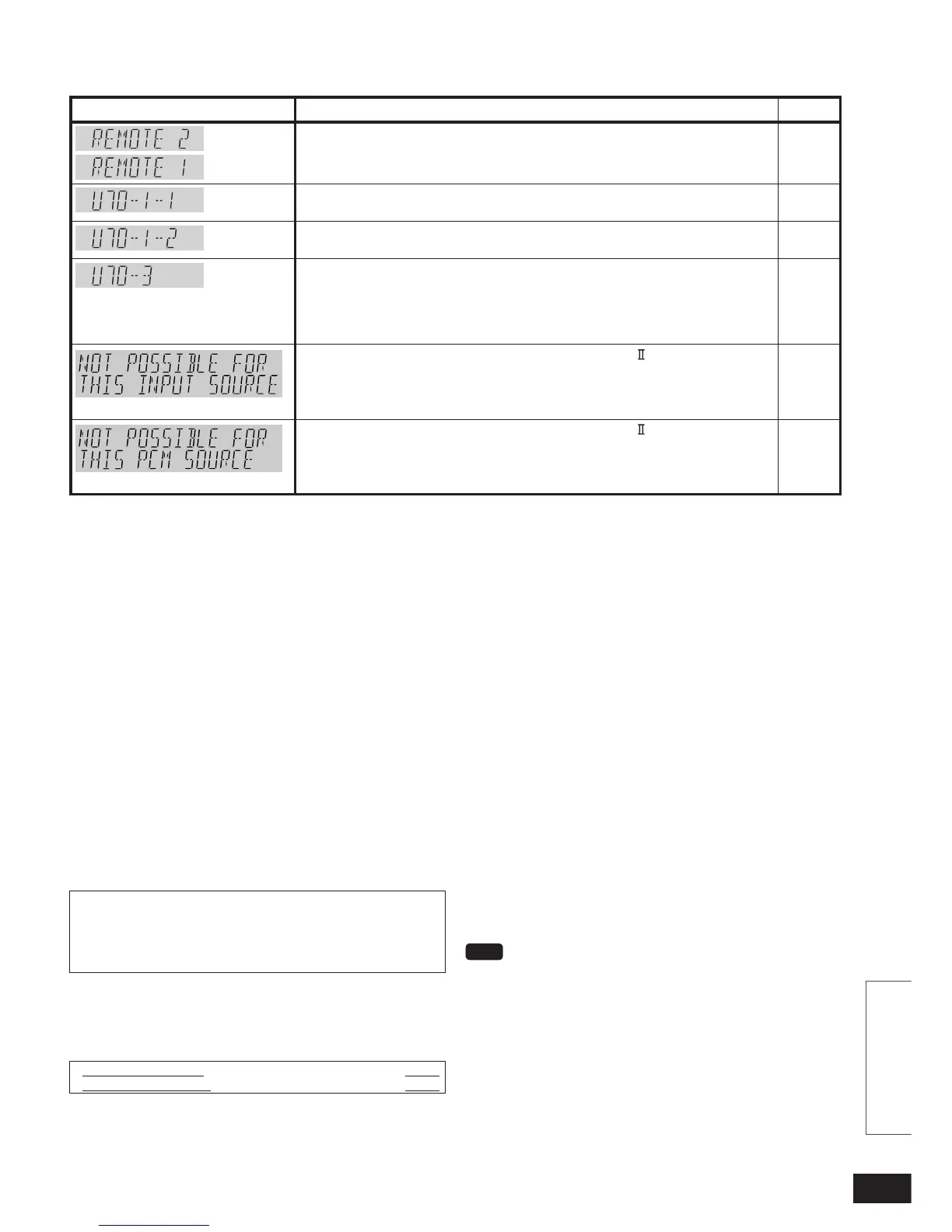

Error messages
Display Check point/Cause/Countermeasure Pages
Set the same remote control code for this system and remote control.
If “REMOTE 2” is displayed, set remote control code to “2”.
If “REMOTE 1” is displayed, set remote control code to “1”.
•
34
The equipment connected by the HDMI cable is not compatible with this
system’s copyright protection technology.
•
—
The system is receiving video signals that are incompatible with it through
HDMI connection. Check the settings of the connected equipment.
•
—
A problem has occurred with the HDMI connection. Try the following to correct
the problem. Consult your dealer if the error code remains on the display.
―
Turn the connected equipment off and on again.
―
Disconnect the HDMI cable then reconnect it.
―
Do not connect more than 2 equipment in series to the output of this system.
•
—
—
—
(Scrolling)
You cannot use Dolby Virtual Speaker, Dolby Pro Logic
and SFC for dual
sounds.
•
32
(Scrolling)
You cannot use Dolby Virtual Speaker, Dolby Pro Logic
and SFC effect with
PCM signals with sampling frequency over 48 kHz.
SFC is not available for multi-channel LPCM signal.
•
•
26
26
AMPLIFIER SECTION
RMS Output Power of each channel driven
10 % total harmonic distortion
1 kHz Front CH 70 W per channel (4
Ω)
1 kHz Center CH 70 W per channel (4
Ω)
100 Hz Subwoofer CH 90 W per channel (3
Ω)
Total RMS Output Power 300 W
Total harmonic distortion
half power at 1 kHz (Front CH) 0.5 % (4
Ω)
Input sensitivity
TV, AUX 3 450 mV, IHF’66
S/N at rated power (4
Ω
)
BD/DVD, TV, AUX 1, AUX 2 80 dB
Input impedance
TV, AUX 3 47 k
Ω
Tone controls
BASS 50 Hz, +6 dB to -6 dB
TREBLE 20 kHz, +6 dB to -6 dB
Digital input
Optical 2
Coaxial 1
HDMI Input 1
HDMI Output 1
This system supports “HDAVI Control 1” function.
GENERAL
Power supply AC 230 V to 240 V, 50 Hz
Power consumption
Main set 68 W
Standby (HDMI ON) 0.7 W
Standby (HDMI OFF) 0.3 W
Specifi cations
RACK SYSTEM
(SC-HTR310)
INCLUDING SPEAKER
Dimensions (W x H x D) 1300 mm x 444 mm x 458 mm
Mass approx. 50 k
g
À
Mass is a Completed (AMP, Speaker Unit inc)
Maximum Loading Weight 80 k
g
(SC-HTR210)
INCLUDING SPEAKER
Dimensions (W x H x D) 1080 mm x 444 mm x 458 mm
Mass approx. 43 k
g
À
Mass is a Completed (AMP, Speaker Unit inc)
Maximum Loading Weight 80 k
g
SPEAKER SYSTEM
FRONT (L/R) 1-Way 1 Speaker System (Bass Refl ect)
6.5 cm Cone Type Full Range x1
CENTER 1-Way 1 Speaker System (Bass Refl ect)
6.5 cm Cone Type Full Range x1
SUBWOOFER 1-Way 2 Speaker System (Bass Refl ect)
13 cm Cone Type Woofer x2
Note
1. Specifi cations are subject to change without notice.
2.
Total harmonic distortion is measured by the digital spectrum analyser.
