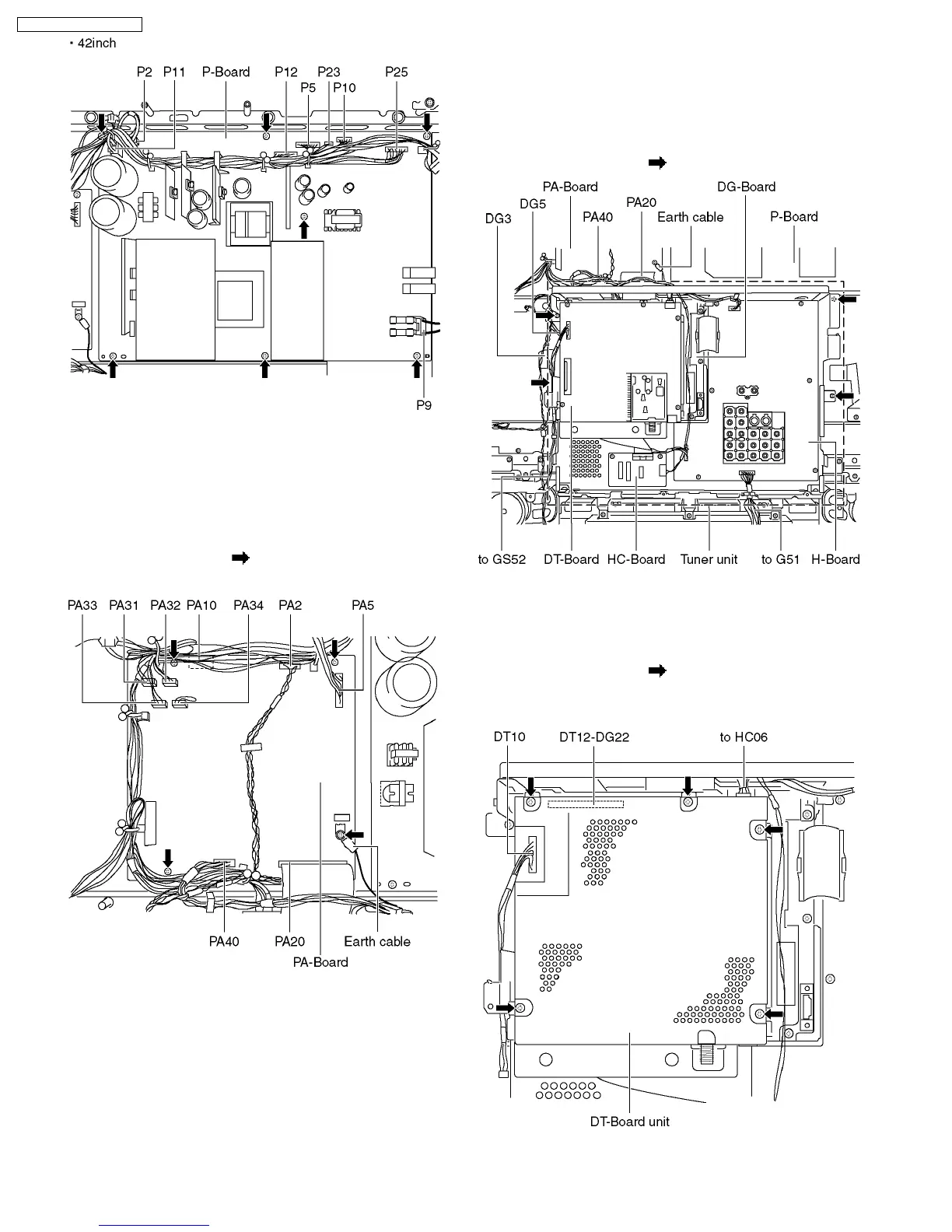

6.5. Remove the PA-Board
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (PA2, PA5, PA10, PA31, PA32,
PA33, PA34 and PA40).
3. Disconnect the flexible cable (PA20).
4. Remove the screws (×4
) and remove the earth cable.
5. Remove the PA-Board.
6.6. Remove the tuner unit
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (DG5, G51, GS52, PA40 and earth
cable).
3. Disconnect the flexible cables (DG3 and PA20).
4. Remove the screws (×4
) remove the tuner unit.
6.7. Remove the DT-Board
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (HC06 and DT10).
3. Remove the screws (×5
) remove the DT-Board unit.
(Be careful the coupler (DT12-DG22) when remove the DT-
Board unit.)
