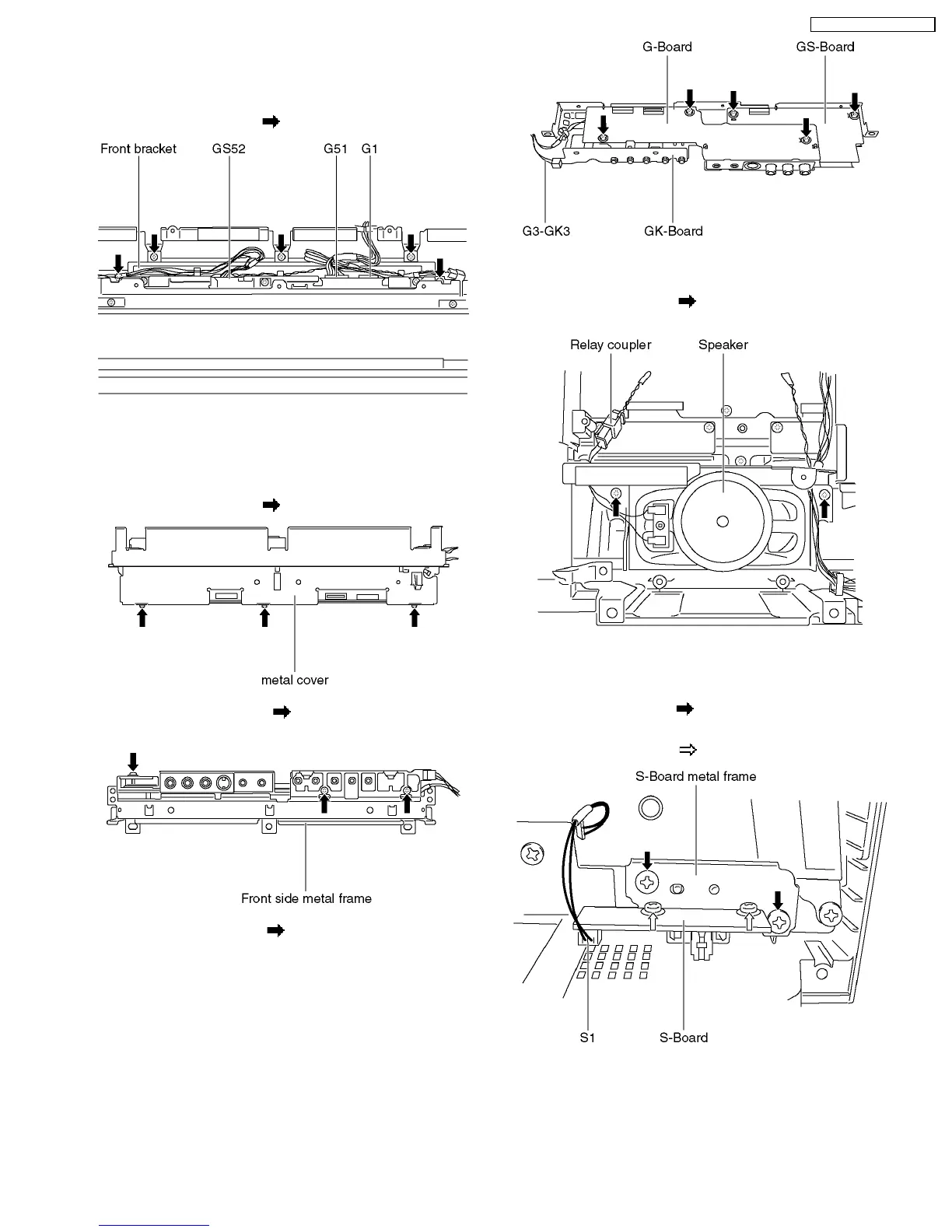

6.20. Remove the front bracket
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (GS52, G1 and G51).
3. Remove the screws (×5
) and remove the front bracket.
6.21. Remove the G-Board, GK-
Board and GS-Board
1. Remove the front bracket. (See section 6.20.)
2. Remove the screws (×3
) and remove the metal cover.
3. Remove the screws (×3 ) and remove the front side
metal frame.
4. Remove the screws (×5 ) and disconnect the couplers
(G3-GK3).
5. Remove the G-Board, GK-Board and GS-Board.
6.22. Remove the speaker L, R
1. Remove the screws (×2 each) and remove the speaker
L, R.
6.23. Remove the S-Board
1. Disconnect the coupler (S1).
2. Remove the screws (×2
) and remove the S-Board metal
frame.
3. Remove the screws (×2
) and remove the S-Board.
