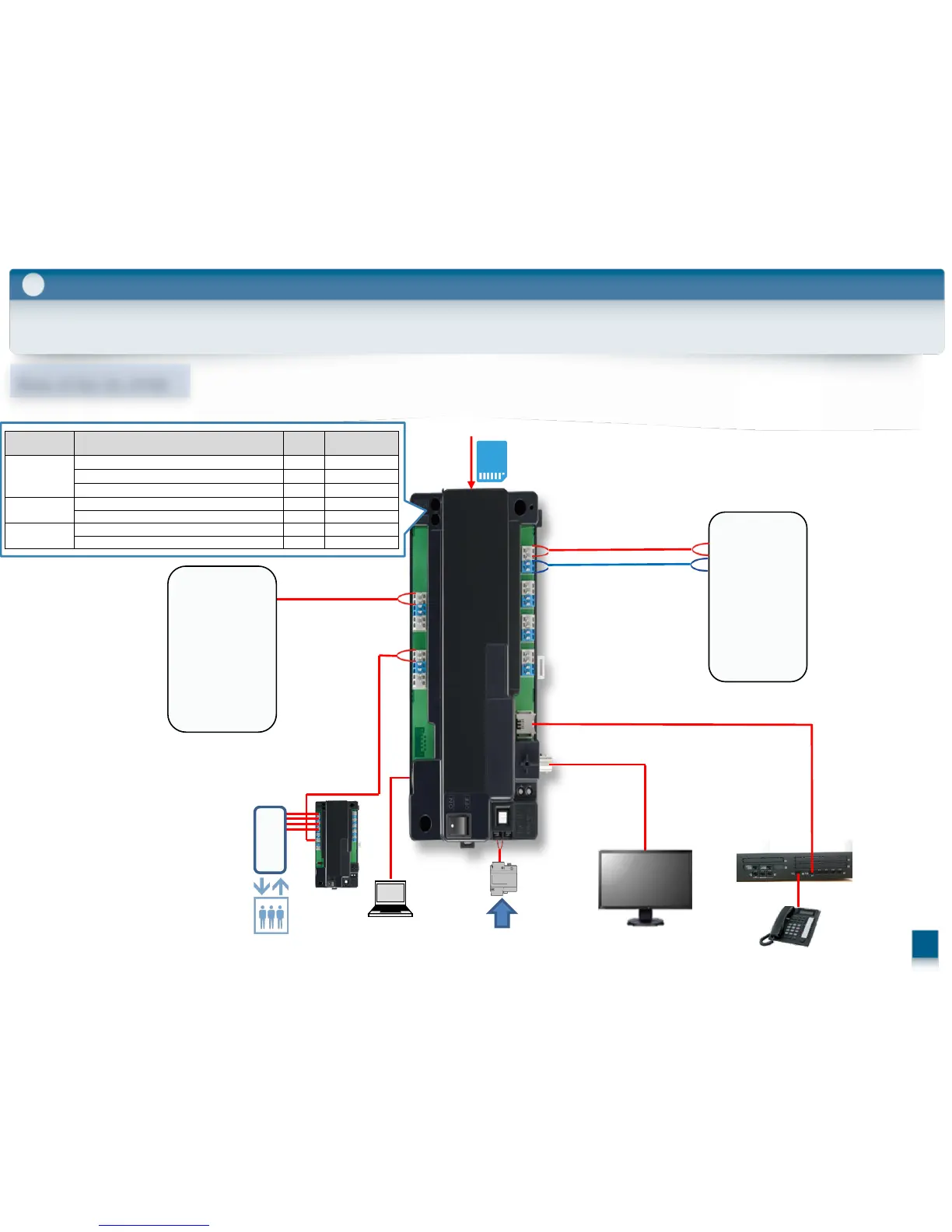

2-3. Control Box : VL-V700
2
Role/ Features / Installation
AC
Control Box
V1
V2
A1
A2
Monitor
PBX
Terminal
Lift control Box
Lift Control
System
USB
PC
Insert Here
SD card
Lobby Station
Category Meaning
POWER
(GREEN
ACCESS
(RED)
Idle Lit Off
Call or monitoring in progress Lit Lit
Accessing SD card Lit Flashing quickly
System setup PC programming in progress Lit Lit
PC connection check in progress Lit Lit
Error
Duplicate distribution box number found Off Flashing slowly
Duplicate lift controller number found Off Flashing slowly
Normal
operation
Role of the VL-V700
