Wiring

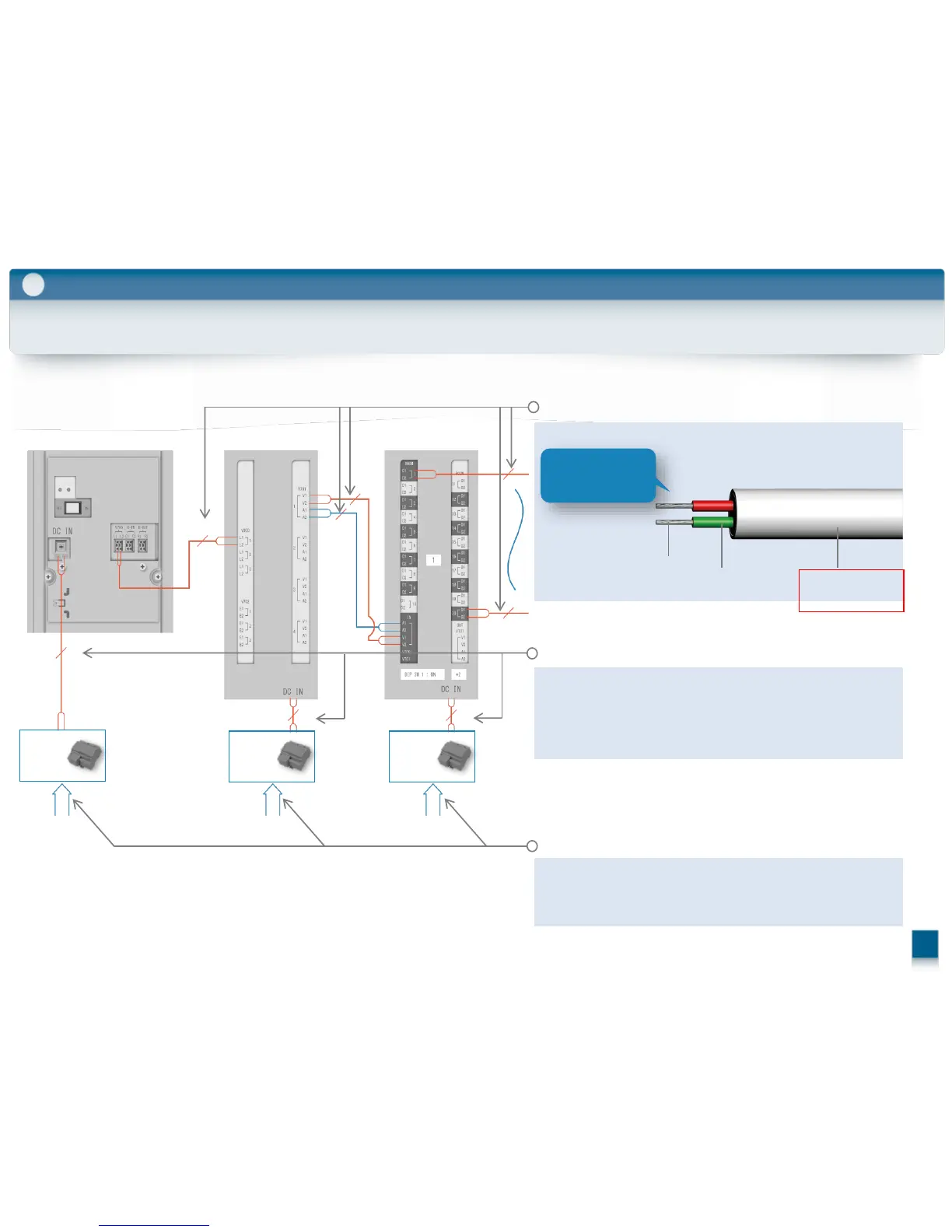

3-5. Cable Information
Uses PE (polyethylene)-insulated PVC or PE jacket 2C cable.
NP : Non-Polarized
Telephone Cable Station Wire
ANNEALED
COPPER
CONDUCTOR
POLYETHYLENE
INSULATION
POLYVINYL
CHLORIDE or
POLYETHYLENE
Diameter of Wire
∅ 0.65 mm / 22 AWG
∅ 1.20 mm / 17 AWG
Supply 24 V DC from Power Supply Unit
Diameter of Power Cable
∅ 0.65 mm / 22 AWG -> Max length: 10 m
∅ 2.00 mm / 12 AWG -> Max length: 20 m
Uses 2-wire cable.
Uses 2-wire cable (for AC 220 - 240V)
Diameter of Power Cable
∅ 1.2 mm / 17 AWG ～ ∅ 2.0 mm / 12 AWG
NP
NP
NP
NP
NP
NP
NP
NP
∅ 0.65 mm
POWER
SUPPLY
UNIT
POWER
SUPPLY
UNIT
POWER
SUPPLY
UNIT
AC AC AC
2wire Power Cable (for DC24V)
2wire Power Cable
