Panasonic VL-MV26 - Replace from Cat-5 E Cable (IP System)

AC
AC
AC
DC power
PS240
Room
Monitor
Lobby Station
VL-V900

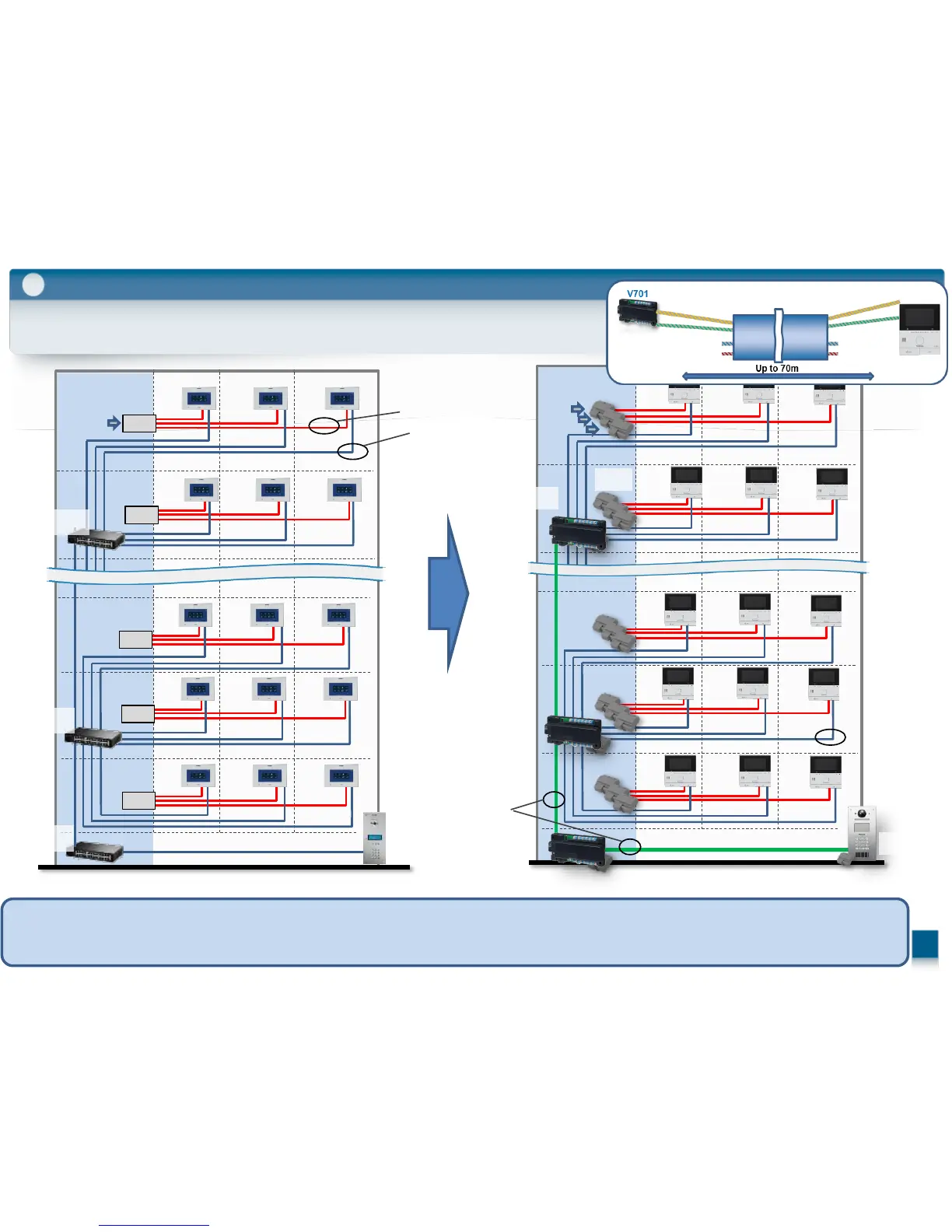

7-1．Replace from Cat-5e Cable (IP System)
Replace
76
Power Cable
Cat5e Cable
Distribution Box
VL-V701
Distribution Box
VL-V701
Control Box
VL-V700
RISER
POWER
POWER
POWER
POWER
POWER
DC Power
IP(LAN)
L2-Switch
Hub
AC
L2-Switch
Hub
L2-Switch
Hub
Room Monitor
Lobby Station － Control Box － Distribution Box : New Cable (Cat-6/1.2mm/0.65mm)
Distribution Box/DC Power Supply － Room Monitor : Existing Cable(Cat-5e/Power Cable)
Lobby Station
Cat5e Cable
Cat6 Cable
/1.2mm/0.65mm
7
RISER
