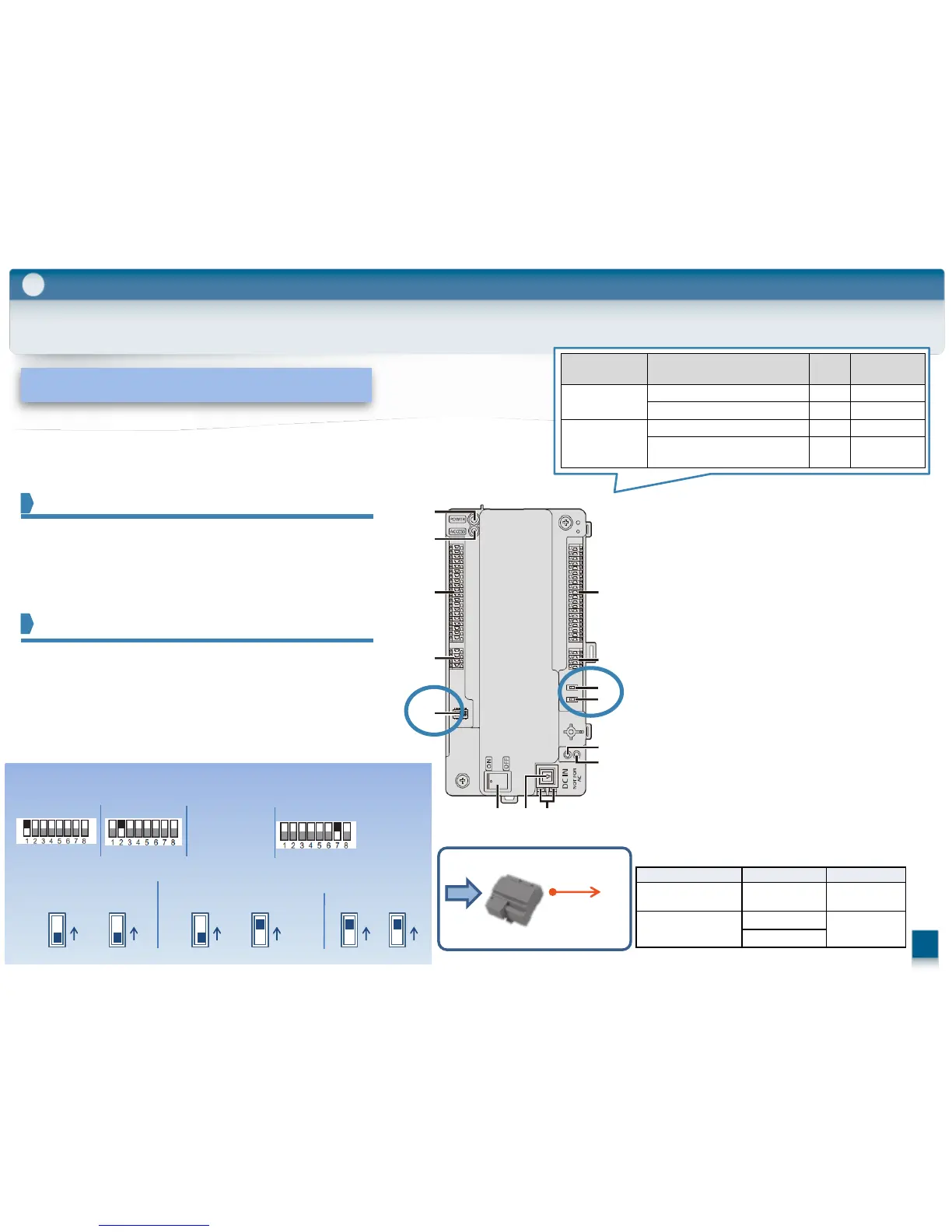

Panasonic VL-MV26 Installation Guide

Role of the VL-V701
Role as a distribution mode
A repeater box is for amplifying the signal
when the control box and main monitor are
far away from each other.
Only one can be connected between
the control box and each distribution branch.
15
2-4. Distribution Box & Repeater : VL-V701
2
Functions as a distribution box or repeater.
The function can be switched ON/OFF with the Repeater switch.
Operation Environment : -10℃ to 50℃
A distribution box for connecting the control box
with the main monitor of each room. (up to 20 monitors)
Up to 7 can be connected between the control box
and the main monitors.
Role as a repeater mode
ON
REPEATER TERMINATION
As a Distribution Box (#1 to )
REPEATER TERMINATION
As a Distribution Box (#farthest only)
REPEATER TERMINATION
As a Repeater Box
Switch Setting
⑦ Dip switch
#1
⑧ Terminal Switch ⑨ Repeater switch
#2 #7
・・・
AC
DC:24V
(14
)
Attached Power Supply Unit
Role/ Features / Installation
Category Meaning
POWER
(GREEN)
ACCESS
(RED)
Normal operation Idle Lit Off
Call or monitoring in progress Lit Lit
Error
DIP switch 8 is in the "on" position Off Flashing slowly
Two or more DIP switches are in
the "on" position
Off Flashing slowly
(1) Power indicator (POWER)
(2) Access indicator (ACCESS)
(3) Connection terminals for main monitors
(4) Connection terminals (input)
for control box or distribution box
(5) DIP switches
(6) Connection terminals for main monitors
(7) Connection terminals (output)
for distribution box
(8) Terminate switch
(9) Repeater switch
(10) Reset button ( ・)
Used when restarting the distribution box.
(11) Function button (・・)
For internal use only.
(12) Power switch
(13) Cable release button for DC power supply
cable
(14) Connection terminals for DC power supply
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12) (13) (14)
Wiring run Wire diameter Max. length
Power supply unit
⇔
Distribution box
2 mm (12 AWG)
approx. 20 m
Power supply unit
⇔
AC power source
1.2 mm (17 AWG)
No requirement
2 mm (12 AWG)
(Indoor use only)
ON ON ONON ON
( on ) ( on )( on )( off )( off ) ( off )

Panasonic VL-MV26 Specifications

General

Brand	Panasonic
Model	VL-MV26
Category	Intercom System
Language	English
