Panasonic VL-MV26 Installation Guide

Extension No: 100
Extension No: 101
Extension No: 102
Terminal 2
Named : Gate
Control Box
VL-V700
Distribution Box
VL-V701
Main Monitor
VL-MVN511/MW251/
MV26
Room
(No 101)
Lobby Station
VL-V900
Entrance
Setting by PC tool
- Register up to 4 Extension No
- Select each terminal name from 15 choices
Extension No: 103
Extension No: 104
Extension No: 105
Terminal 1
Named : Reception
Terminal 3
Named: Security Office
Terminal 3
Named: Parking
How to call from Room to Terminal
1. Push the TALK button
2. Select Terminal name
3. Press OK
3
System
4
Integration

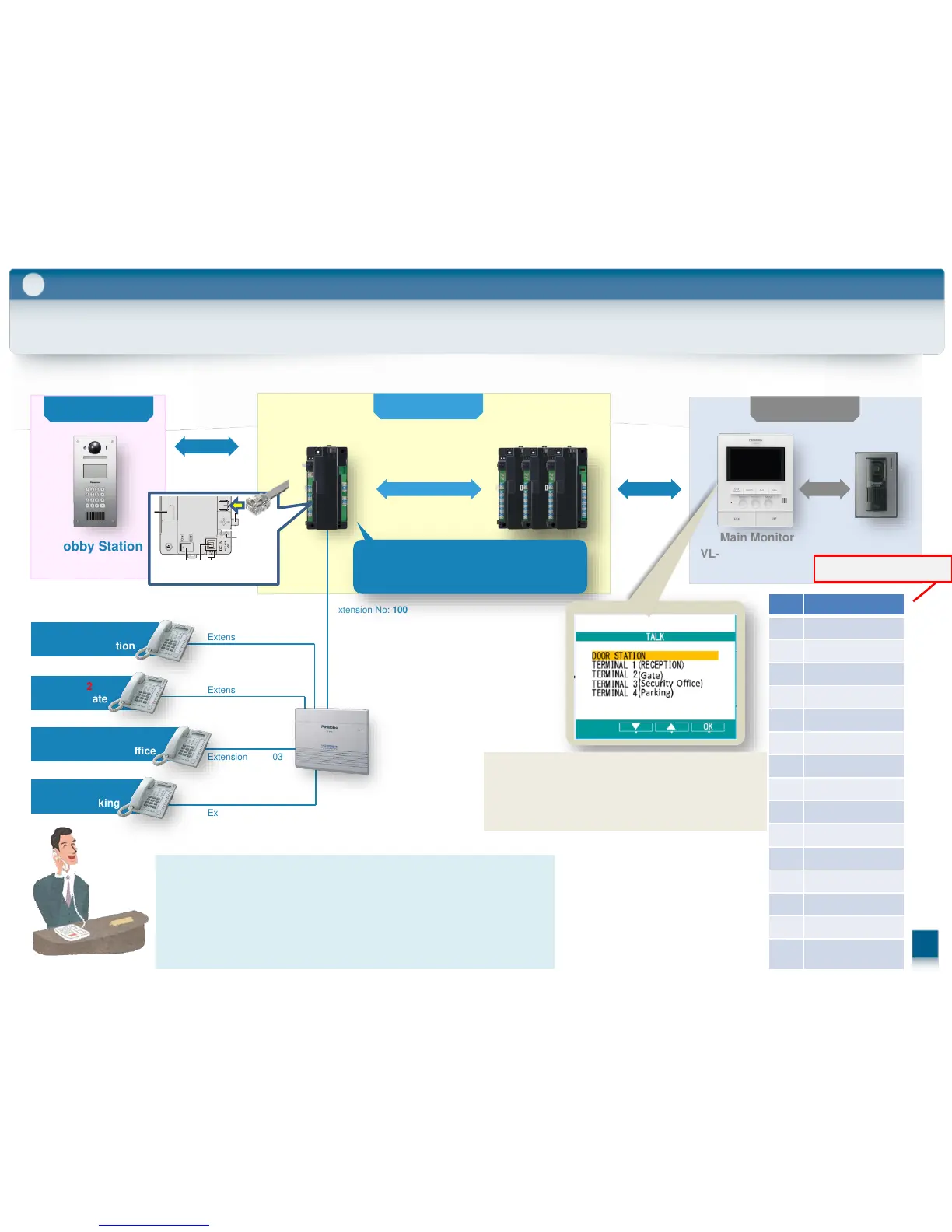

4-1. How to call PBX (between Room and Terminal)
44
Telephone cable
(RJ-11)
How to call from Terminal to Room
1. Press “1” “0” “0” (100 is Extension No of Control Box)
2. Guidance start
“Please enter the room number or system command”
3. Press room number “1” “0” “1” “#” ” (101 is Room
Number)
Description
(1) TERMINAL #
(2) RECEPTION
(3) GATE
(4) CONTROL ROOM
(5) RESTAURANT
(6) HALL
(7) POOL
(8) SECURITY OFFICE
(9) ENTRANCE
(10) GYM
(11) GUEST ROOM
(12) KID’S ROOM
(13) PARKING
(14) TERRACE
(15) LIFT LOBBY
Select from description
using by PC tool
