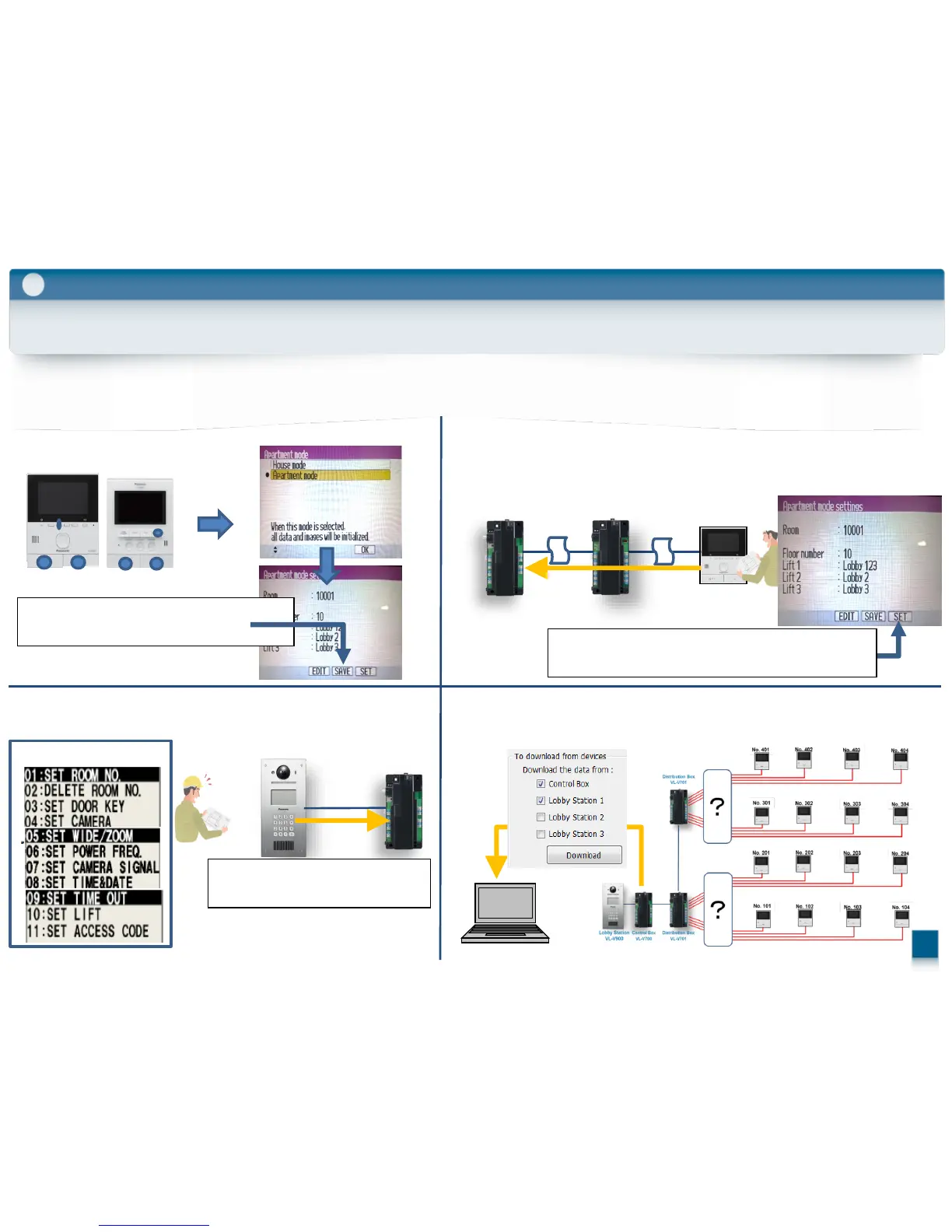

5-2-1. How to Setup
5
Setup Tool
59
1. Set the Apartment mode and room number
of each Room monitor.
2. Wiring the Control Box, Distribution Box and Monitor.
Send the each room programing date to the Control
Box.
3. Wiring the Control Box and Lobby Station.
Set and send the programing date
to the Control Box.
<Situation2> If you don’t know where the each cable connect to.
Push 3 buttons and Power on
Save: Save the programing date
in the internal memory
No. 301
Port?
Port?
Control Box
VL-V700
Distribution Box
VL-V701
Set : Save in the internal memory and
send the saved date to the Control Box
↑ *See 5-8 Lobby station programing
*See 5-10 Main Monitor programing
4. Connect the PC and Control Box vis USB and
download the Programing date.
Programing date should be back up by the Installer or Dealer.
Call any number:
Send the programing date
#+PASS CODE(123456) +Bell
