VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1
4.3.2. Door Station Section
4.3.2.1. Door station Diagram
MAIN Board
MIC
Speaker
Call Button
[SW301]
Red LED
[LED1]
+5V
Regulator
[IC202]
Trans
[T1]
To Monitor
Voice
Amplifier
[IC100]
+5V
SP amp
[IC102]
2
2
2
Diode
Bridge
[D2-D5]
Camera Unit
FM Signal
Modulator
[IC200]
+5V
Video signal
FM signal
DC 20V
MCU
[IC203]
White LED
[LED200, LED201]
AM signal
Illumination
sensor
[IC204]
6

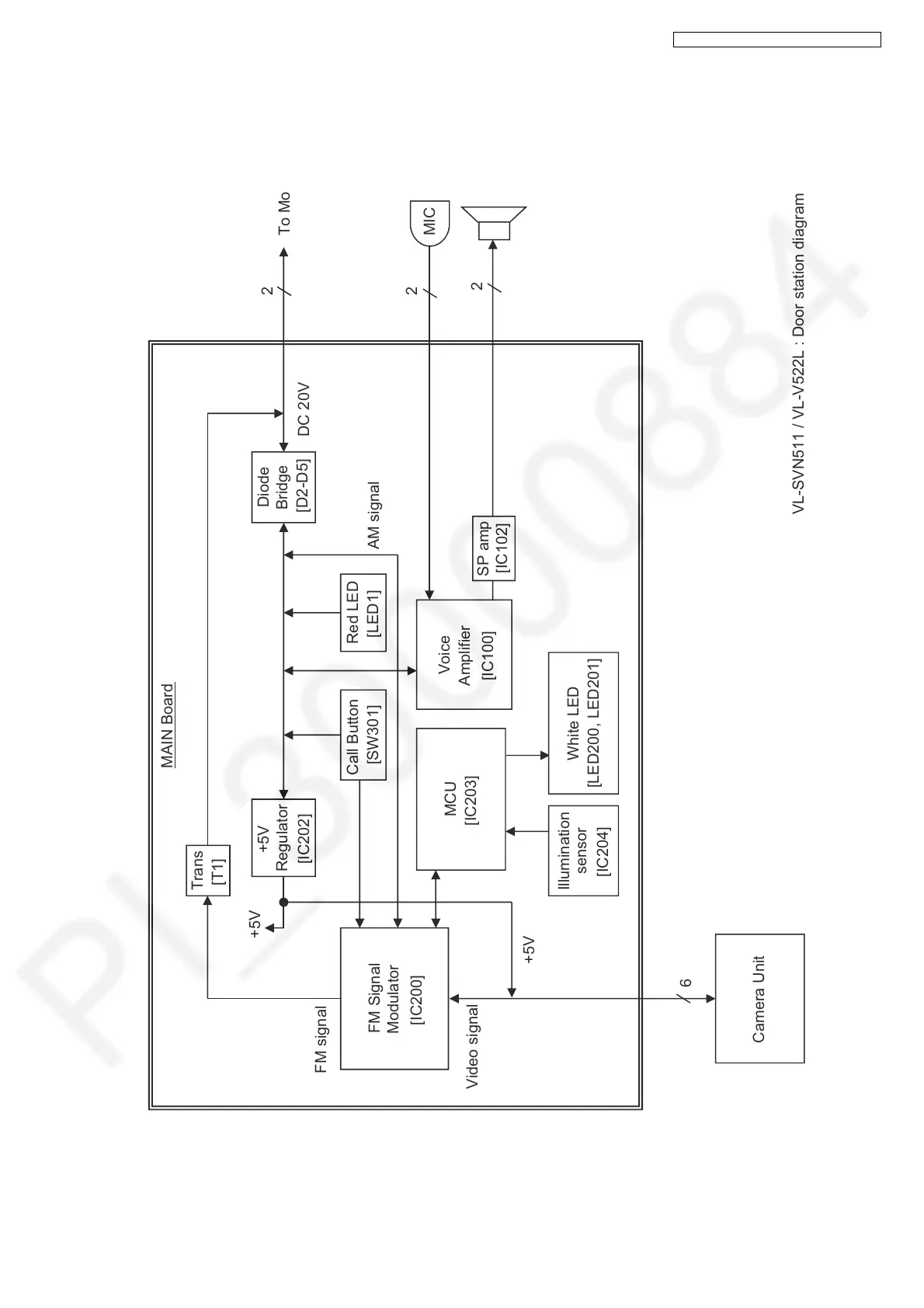

VL-SVN511 / VL-V522L : Door station diagram
