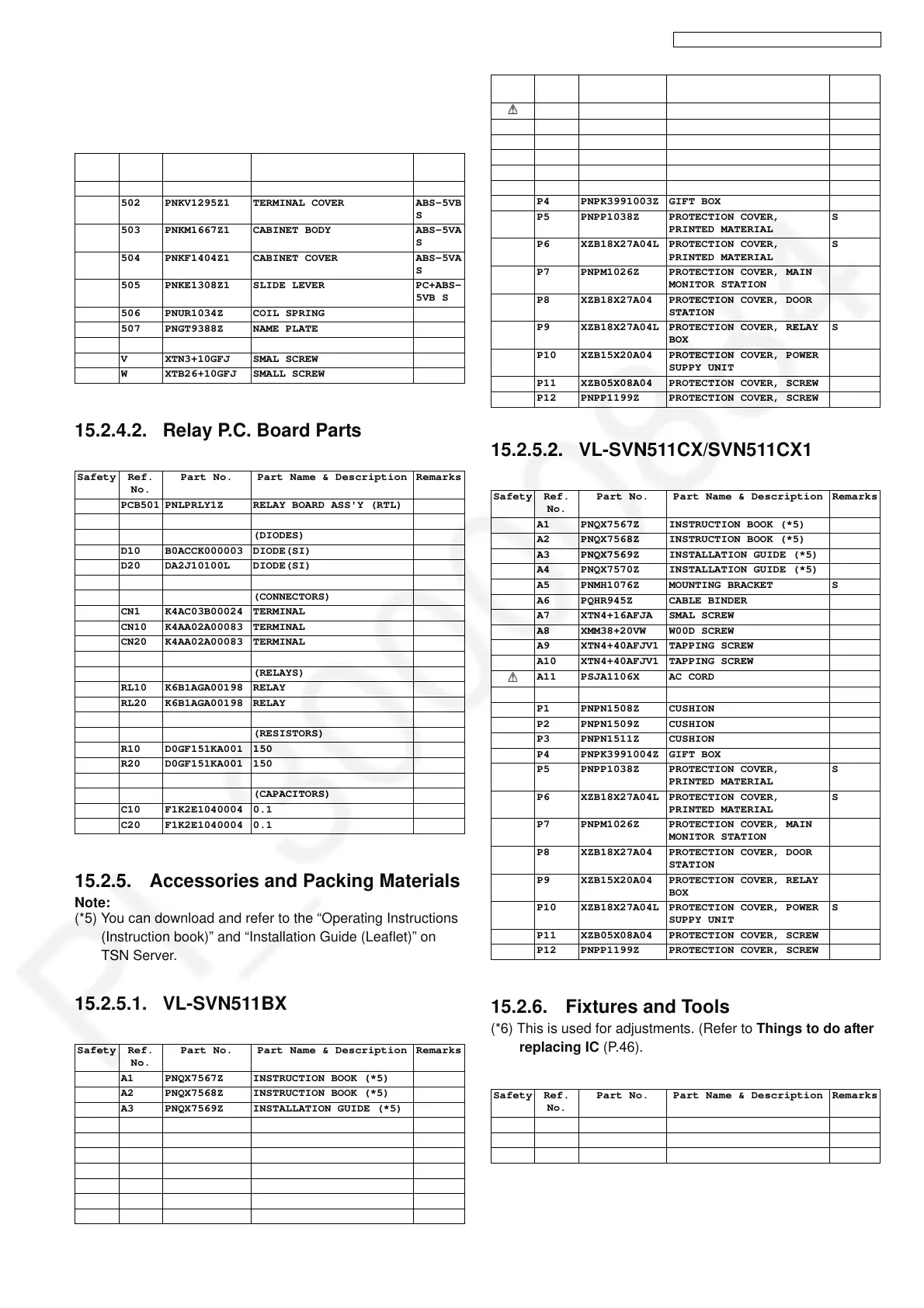

15.2.4. Relay Box
15.2.4.1. Cabinet and Electrical Parts
15.2.4.2. Relay P.C. Board Parts
15.2.5. Accessories and Packing Materials
Note:
(*5) You can download and refer to the “Operating Instructions
(Instruction book)” and “Installation Guide (Leaflet)” on
TSN Server.
15.2.5.1. VL-SVN511BX
15.2.5.2. VL-SVN511CX/SVN511CX1
15.2.6. Fixtures and Tools
(*6) This is used for adjustments. (Refer to Things to do after
replacing IC (P.46).
Safety Ref.
No.
Part No. Part Name & Description Remarks
501 PNVLRLY1EXU RELAY BOX ASS'Y
502 PNKV1295Z1 TERMINAL COVER ABS-5VB
S
503 PNKM1667Z1 CABINET BODY ABS-5VA
S
504 PNKF1404Z1 CABINET COVER ABS-5VA
S
505 PNKE1308Z1 SLIDE LEVER PC+ABS-
5VB S
506 PNUR1034Z COIL SPRING
507 PNGT9388Z NAME PLATE
V XTN3+10GFJ SMAL SCREW
W XTB26+10GFJ SMALL SCREW
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB501 PNLPRLY1Z RELAY BOARD ASS'Y (RTL)
(DIODES)
D10 B0ACCK000003 DIODE(SI)
D20 DA2J10100L DIODE(SI)
(CONNECTORS)
CN1 K4AC03B00024 TERMINAL
CN10 K4AA02A00083 TERMINAL
CN20 K4AA02A00083 TERMINAL
(RELAYS)
RL10 K6B1AGA00198 RELAY
RL20 K6B1AGA00198 RELAY
(RESISTORS)
R10 D0GF151KA001 150
R20 D0GF151KA001 150
(CAPACITORS)
C10 F1K2E1040004 0.1
C20 F1K2E1040004 0.1
Safety Ref.
No.
Part No. Part Name & Description Remarks
A1 PNQX7567Z INSTRUCTION BOOK (*5)
A2 PNQX7568Z INSTRUCTION BOOK (*5)
A3 PNQX7569Z INSTALLATION GUIDE (*5)
A4 PNQX7570Z INSTALLATION GUIDE (*5)
A5 PNMH1076Z MOUNTING BRACKET S
A6 PQHR945Z CABLE BINDER
A7 XTN4+16AFJA SMAL SCREW
A8 XMM38+20VW W00D SCREW
A9 XTN4+40AFJV1 TAPPING SCREW
A10 XTN4+40AFJV1 TAPPING SCREW
A11 PFJA02A006Y AC CORD
A12 PNQW4751Z LEAFLET, QRG (*5)
P1 PNPN1508Z CUSHION
P2 PNPN1509Z CUSHION
P3 PNPN1511Z CUSHION
P4 PNPK3991003Z GIFT BOX
P5 PNPP1038Z PROTECTION COVER,
PRINTED MATERIAL
S
P6 XZB18X27A04L PROTECTION COVER,
PRINTED MATERIAL
S
P7 PNPM1026Z PROTECTION COVER, MAIN
MONITOR STATION
P8 XZB18X27A04 PROTECTION COVER, DOOR
STATION
P9 XZB18X27A04L PROTECTION COVER, RELAY
BOX
S
P10 XZB15X20A04 PROTECTION COVER, POWER
SUPPY UNIT
P11 XZB05X08A04 PROTECTION COVER, SCREW
P12 PNPP1199Z PROTECTION COVER, SCREW
Safety Ref.
No.
Part No. Part Name & Description Remarks
A1 PNQX7567Z INSTRUCTION BOOK (*5)
A2 PNQX7568Z INSTRUCTION BOOK (*5)
A3 PNQX7569Z INSTALLATION GUIDE (*5)
A4 PNQX7570Z INSTALLATION GUIDE (*5)
A5 PNMH1076Z MOUNTING BRACKET S
A6 PQHR945Z CABLE BINDER
A7 XTN4+16AFJA SMAL SCREW
A8 XMM38+20VW W00D SCREW
A9 XTN4+40AFJV1 TAPPING SCREW
A10 XTN4+40AFJV1 TAPPING SCREW
A11 PSJA1106X AC CORD
P1 PNPN1508Z CUSHION
P2 PNPN1509Z CUSHION
P3 PNPN1511Z CUSHION
P4 PNPK3991004Z GIFT BOX
P5 PNPP1038Z PROTECTION COVER,
PRINTED MATERIAL
S
P6 XZB18X27A04L PROTECTION COVER,
PRINTED MATERIAL
S
P7 PNPM1026Z PROTECTION COVER, MAIN
MONITOR STATION
P8 XZB18X27A04 PROTECTION COVER, DOOR
STATION
P9 XZB15X20A04 PROTECTION COVER, RELAY
BOX
P10 XZB18X27A04L PROTECTION COVER, POWER
SUPPY UNIT
S
P11 XZB05X08A04 PROTECTION COVER, SCREW
P12 PNPP1199Z PROTECTION COVER, SCREW
Safety Ref.
No.
Part No. Part Name & Description Remarks
PQZZ1CD300E JIG CABLE (*6)
PNZZN511EX Macro file CD-ROM (*6)
Safety Ref.
No.
Part No. Part Name & Description Remarks
