41
VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1
9.2.4. How to Remove the Front Panel [No.4]
Procedure No.4

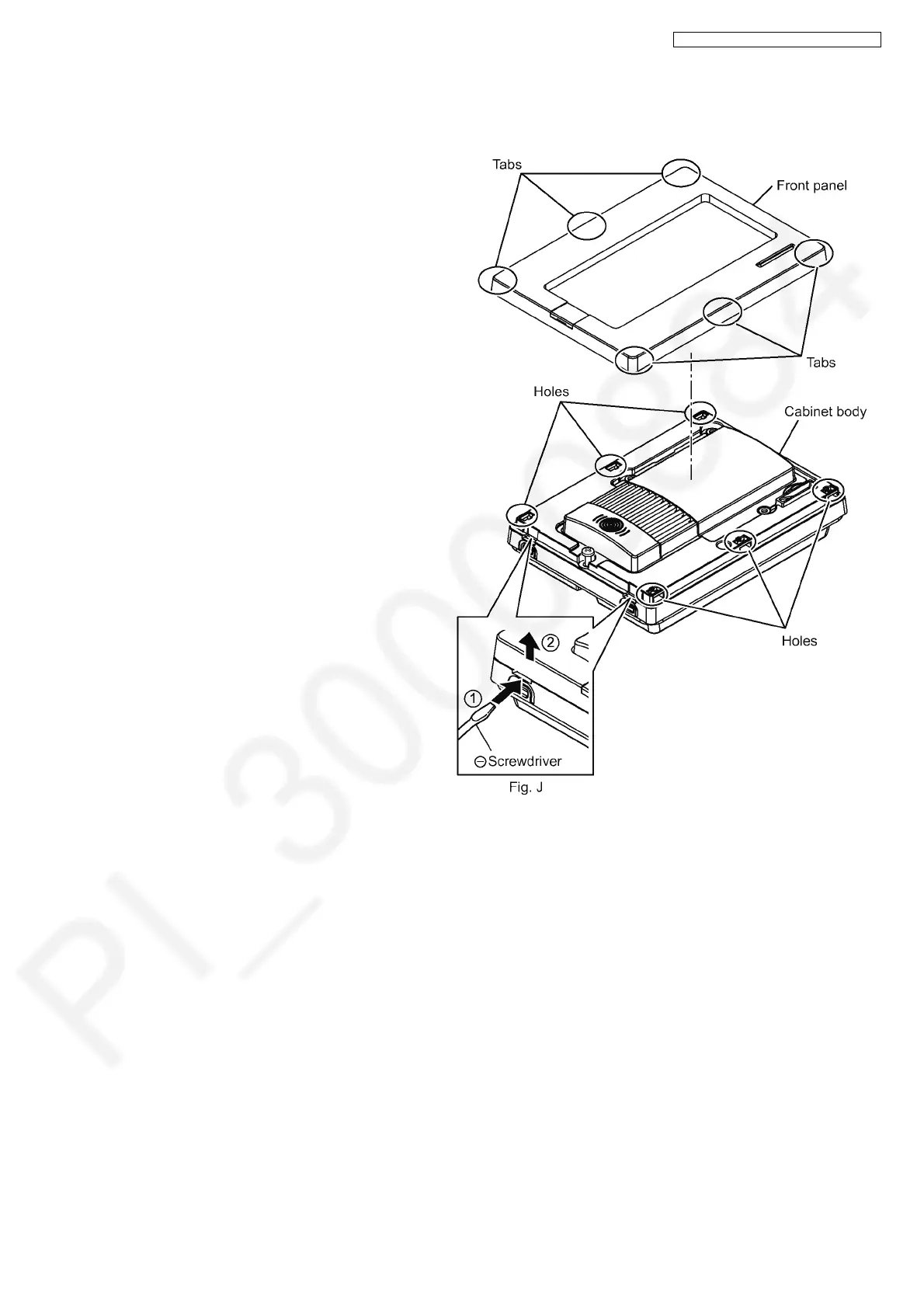

1. After unhook the 6 tabs as shown in Fig. J, remove the
Front panel.
