VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1
9.3. Power Supply Unit

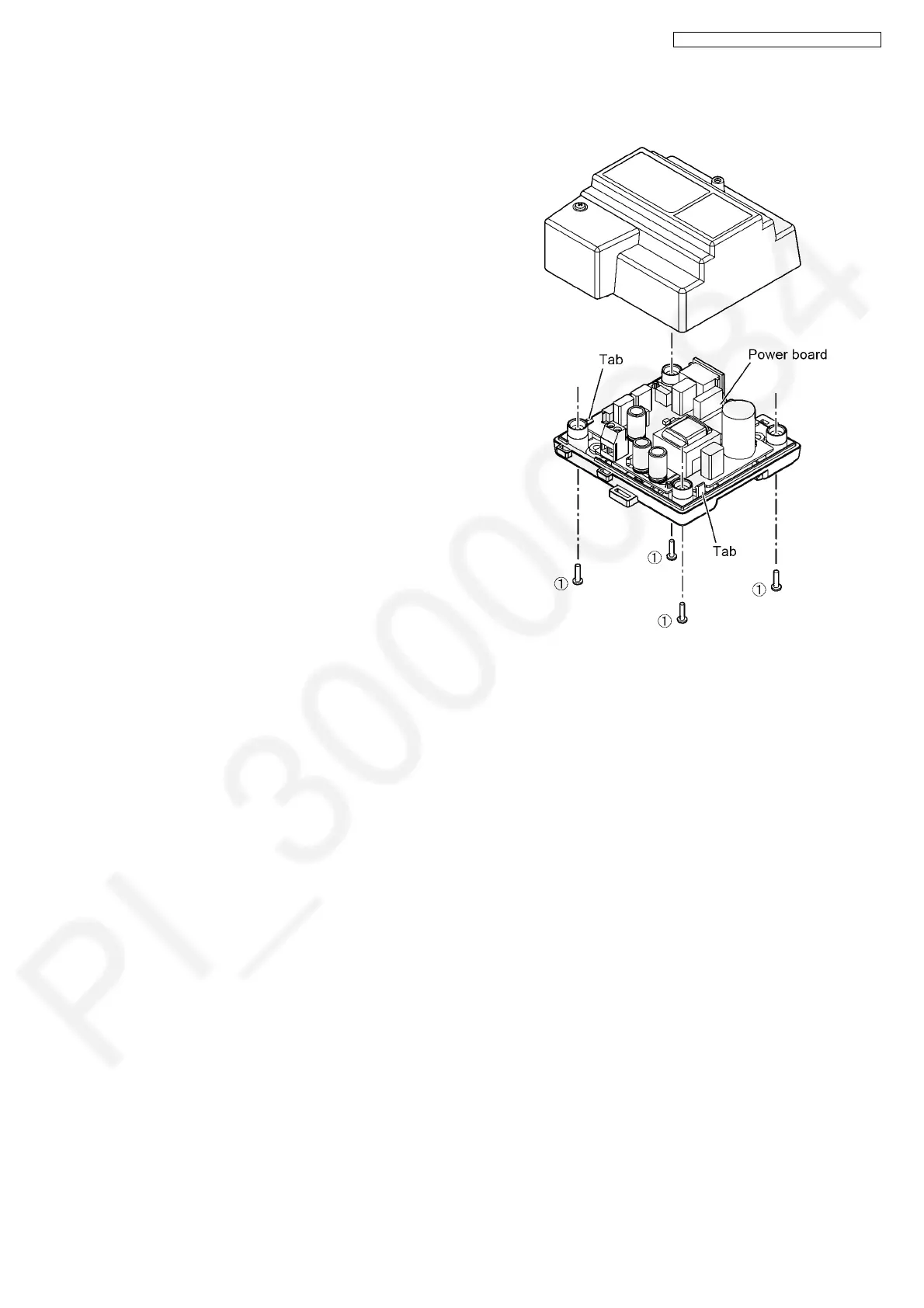

1. Remove 4 screws ① .
2. Remove the Power Board by unhooking 2 tabs.
