80
VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1

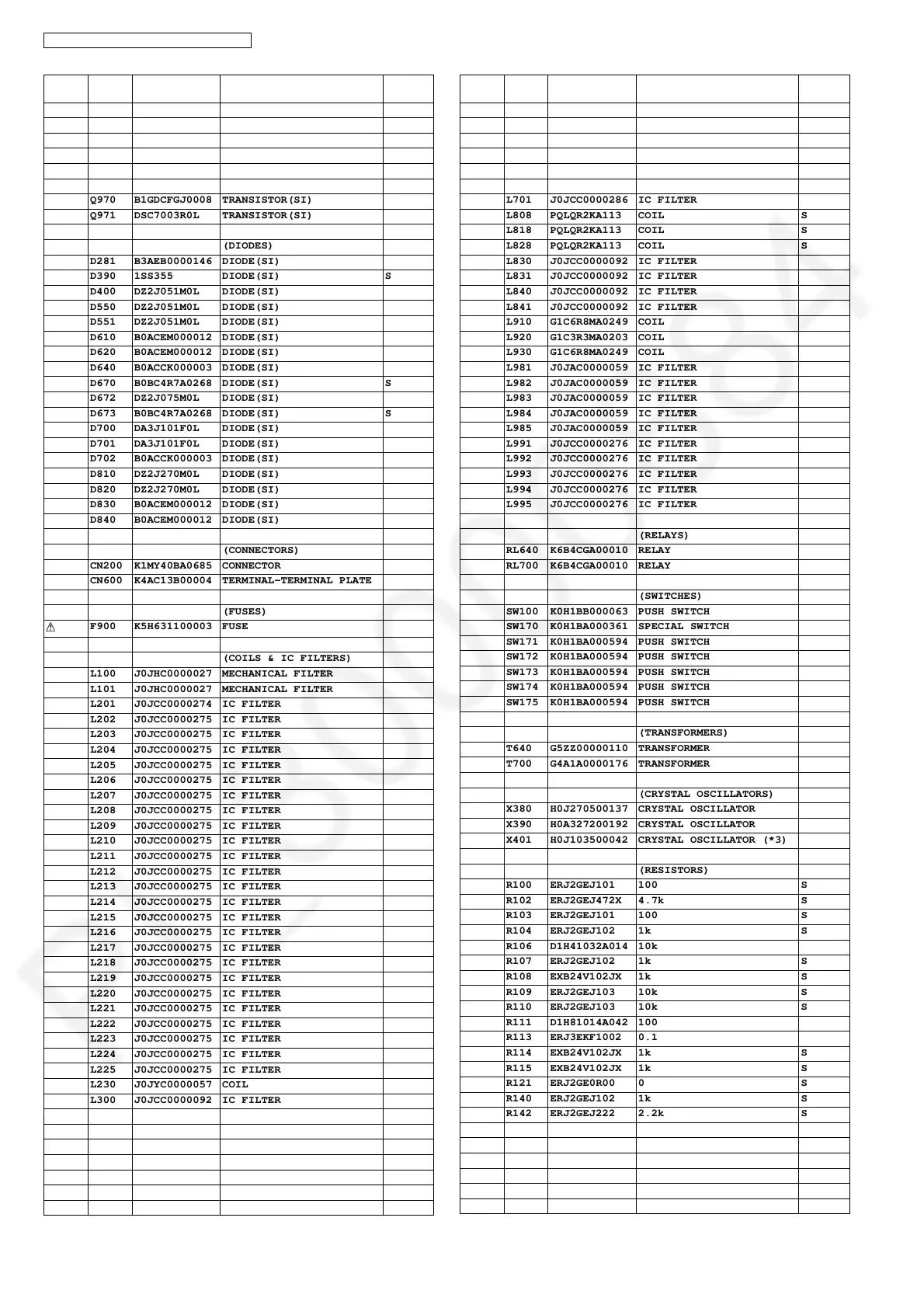

Q702 B1ADGD000005 TRANSISTOR(SI)
Q703 B1GBCFJK0001 TRANSISTOR(SI)
Q800 B1ADMJ000003 TRANSISTOR(SI)
Q801 B1ADBL000017 TRANSISTOR(SI)
Q810 B1GBCFYY0014 TRANSISTOR(SI)
Q820 B1GBCFYY0014 TRANSISTOR(SI)
Q970 B1GDCFGJ0008 TRANSISTOR(SI)
Q971 DSC7003R0L TRANSISTOR(SI)
(DIODES)
D281 B3AEB0000146 DIODE(SI)
D390 1SS355 DIODE(SI) S
D400 DZ2J051M0L DIODE(SI)
D550 DZ2J051M0L DIODE(SI)
D551 DZ2J051M0L DIODE(SI)
D610 B0ACEM000012 DIODE(SI)
D620 B0ACEM000012 DIODE(SI)
D640 B0ACCK000003 DIODE(SI)
D670 B0BC4R7A0268 DIODE(SI) S
D672 DZ2J075M0L DIODE(SI)
D673 B0BC4R7A0268 DIODE(SI) S
D700 DA3J101F0L DIODE(SI)
D701 DA3J101F0L DIODE(SI)
D702 B0ACCK000003 DIODE(SI)
D810 DZ2J270M0L DIODE(SI)
D820 DZ2J270M0L DIODE(SI)
D830 B0ACEM000012 DIODE(SI)
D840 B0ACEM000012 DIODE(SI)
(CONNECTORS)
CN200 K1MY40BA0685 CONNECTOR
CN600 K4AC13B00004 TERMINAL-TERMINAL PLATE
(FUSES)
F900 K5H631100003 FUSE
(COILS & IC FILTERS)
L100 J0JHC0000027 MECHANICAL FILTER
L101 J0JHC0000027 MECHANICAL FILTER
L201 J0JCC0000274 IC FILTER
L202 J0JCC0000275 IC FILTER
L203 J0JCC0000275 IC FILTER
L204 J0JCC0000275 IC FILTER
L205 J0JCC0000275 IC FILTER
L206 J0JCC0000275 IC FILTER
L207 J0JCC0000275 IC FILTER
L208 J0JCC0000275 IC FILTER
L209 J0JCC0000275 IC FILTER
L210 J0JCC0000275 IC FILTER
L211 J0JCC0000275 IC FILTER
L212 J0JCC0000275 IC FILTER
L213 J0JCC0000275 IC FILTER
L214 J0JCC0000275 IC FILTER
L215 J0JCC0000275 IC FILTER
L216 J0JCC0000275 IC FILTER
L217 J0JCC0000275 IC FILTER
L218 J0JCC0000275 IC FILTER
L219 J0JCC0000275 IC FILTER
L220 J0JCC0000275 IC FILTER
L221 J0JCC0000275 IC FILTER
L222 J0JCC0000275 IC FILTER
L223 J0JCC0000275 IC FILTER
L224 J0JCC0000275 IC FILTER
L225 J0JCC0000275 IC FILTER
L230 J0JYC0000057 COIL
L300 J0JCC0000092 IC FILTER
L340 G1C2R2MA0392 COIL
L610 G1C681MA0072 COIL
L611 G1C470MA0203 COIL
L620 G1C681MA0072 COIL
L621 G1C470MA0203 COIL
L640 G1C330KA0100 COIL
L641 G1C470MA0203 COIL
Safety Ref.
No.
Part No. Part Name & Description Remarks
L644 G1C100MA0395 COIL
L645 J0JCC0000092 IC FILTER
L646 J0JCC0000092 IC FILTER
L670 G1C331JA0036 COIL
L671 G1C330K00022 COIL
L700 J0JCC0000286 IC FILTER
L701 J0JCC0000286 IC FILTER
L808 PQLQR2KA113 COIL S
L818 PQLQR2KA113 COIL S
L828 PQLQR2KA113 COIL S
L830 J0JCC0000092 IC FILTER
L831 J0JCC0000092 IC FILTER
L840 J0JCC0000092 IC FILTER
L841 J0JCC0000092 IC FILTER
L910 G1C6R8MA0249 COIL
L920 G1C3R3MA0203 COIL
L930 G1C6R8MA0249 COIL
L981 J0JAC0000059 IC FILTER
L982 J0JAC0000059 IC FILTER
L983 J0JAC0000059 IC FILTER
L984 J0JAC0000059 IC FILTER
L985 J0JAC0000059 IC FILTER
L991 J0JCC0000276 IC FILTER
L992 J0JCC0000276 IC FILTER
L993 J0JCC0000276 IC FILTER
L994 J0JCC0000276 IC FILTER
L995 J0JCC0000276 IC FILTER
(RELAYS)
RL640 K6B4CGA00010 RELAY
RL700 K6B4CGA00010 RELAY
(SWITCHES)
SW100 K0H1BB000063 PUSH SWITCH
SW170 K0H1BA000361 SPECIAL SWITCH
SW171 K0H1BA000594 PUSH SWITCH
SW172 K0H1BA000594 PUSH SWITCH
SW173 K0H1BA000594 PUSH SWITCH
SW174 K0H1BA000594 PUSH SWITCH
SW175 K0H1BA000594 PUSH SWITCH
(TRANSFORMERS)
T640 G5ZZ00000110 TRANSFORMER
T700 G4A1A0000176 TRANSFORMER
(CRYSTAL OSCILLATORS)
X380 H0J270500137 CRYSTAL OSCILLATOR
X390 H0A327200192 CRYSTAL OSCILLATOR
X401 H0J103500042 CRYSTAL OSCILLATOR (*3)
(RESISTORS)
R100 ERJ2GEJ101 100 S
R102 ERJ2GEJ472X 4.7k S
R103 ERJ2GEJ101 100 S
R104 ERJ2GEJ102 1k S
R106 D1H41032A014 10k
R107 ERJ2GEJ102 1k S
R108 EXB24V102JX 1k S
R109 ERJ2GEJ103 10k S
R110 ERJ2GEJ103 10k S
R111 D1H81014A042 100
R113 ERJ3EKF1002 0.1
R114 EXB24V102JX 1k S
R115 EXB24V102JX 1k S
R121 ERJ2GE0R00 0 S
R140 ERJ2GEJ102 1k S
R142 ERJ2GEJ222 2.2k S
R143 ERJ2GEJ102 1k S
R145 D1BA1001A015 1k S
R146 ERJ2GEJ102 1k
R147 D1H81014A042 100
R148 D1H81014A042 100
R170 ERJ2GEJ101 100 S
Safety Ref.
No.
Part No. Part Name & Description Remarks
