VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1

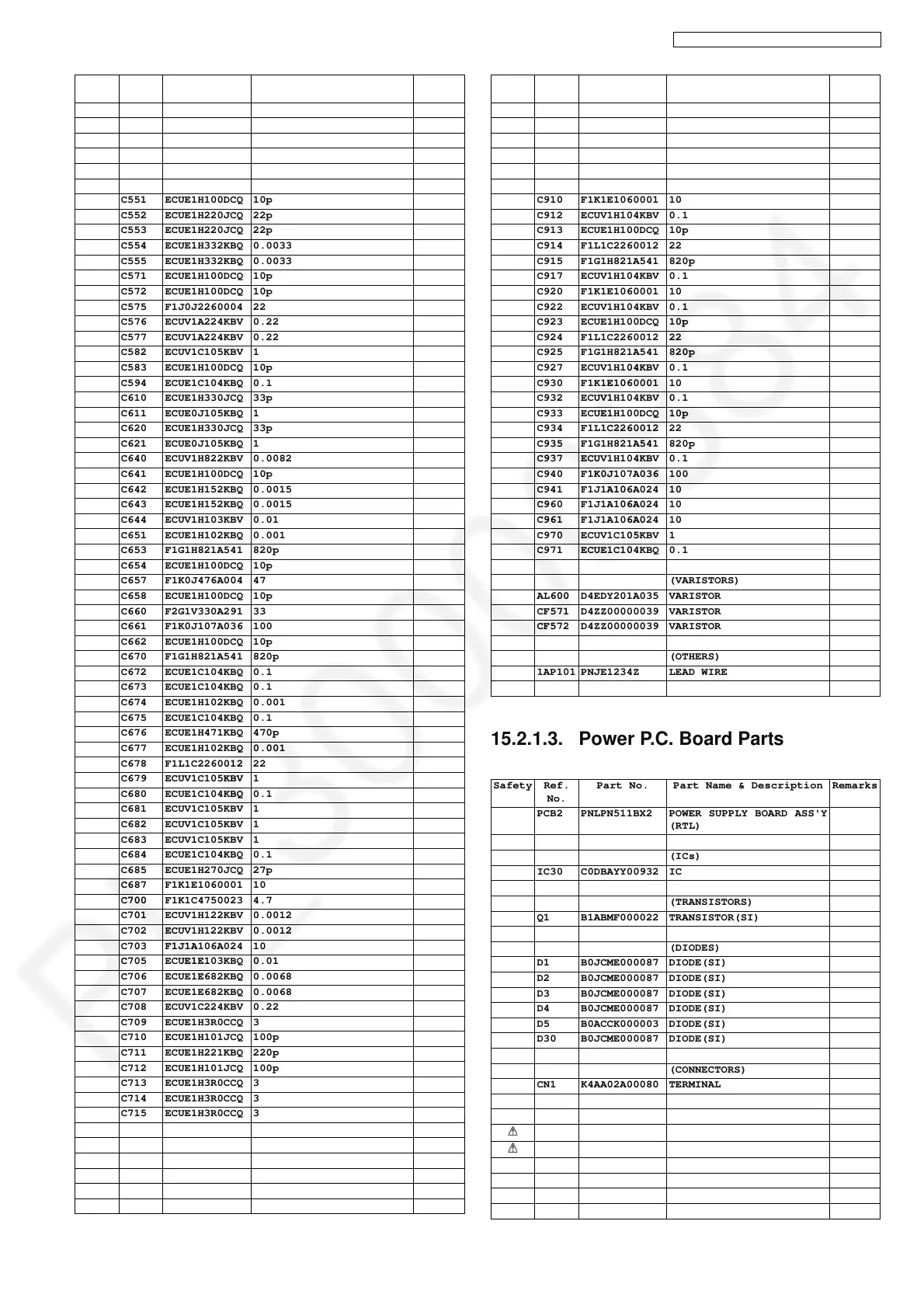

15.2.1.3. Power P.C. Board Parts
C516 ECUE1H100DCQ 10p
C517 ECUE1H100DCQ 10p
C521 F1L1E1060021 10
C522 F1L1E1060021 10
C523 F1L1E1060021 10
C526 ECUE1H100DCQ 10p
C551 ECUE1H100DCQ 10p
C552 ECUE1H220JCQ 22p
C553 ECUE1H220JCQ 22p
C554 ECUE1H332KBQ 0.0033
C555 ECUE1H332KBQ 0.0033
C571 ECUE1H100DCQ 10p
C572 ECUE1H100DCQ 10p
C575 F1J0J2260004 22
C576 ECUV1A224KBV 0.22
C577 ECUV1A224KBV 0.22
C582 ECUV1C105KBV 1
C583 ECUE1H100DCQ 10p
C594 ECUE1C104KBQ 0.1
C610 ECUE1H330JCQ 33p
C611 ECUE0J105KBQ 1
C620 ECUE1H330JCQ 33p
C621 ECUE0J105KBQ 1
C640 ECUV1H822KBV 0.0082
C641 ECUE1H100DCQ 10p
C642 ECUE1H152KBQ 0.0015
C643 ECUE1H152KBQ 0.0015
C644 ECUV1H103KBV 0.01
C651 ECUE1H102KBQ 0.001
C653 F1G1H821A541 820p
C654 ECUE1H100DCQ 10p
C657 F1K0J476A004 47
C658 ECUE1H100DCQ 10p
C660 F2G1V330A291 33
C661 F1K0J107A036 100
C662 ECUE1H100DCQ 10p
C670 F1G1H821A541 820p
C672 ECUE1C104KBQ 0.1
C673 ECUE1C104KBQ 0.1
C674 ECUE1H102KBQ 0.001
C675 ECUE1C104KBQ 0.1
C676 ECUE1H471KBQ 470p
C677 ECUE1H102KBQ 0.001
C678 F1L1C2260012 22
C679 ECUV1C105KBV 1
C680 ECUE1C104KBQ 0.1
C681 ECUV1C105KBV 1
C682 ECUV1C105KBV 1
C683 ECUV1C105KBV 1
C684 ECUE1C104KBQ 0.1
C685 ECUE1H270JCQ 27p
C687 F1K1E1060001 10
C700 F1K1C4750023 4.7
C701 ECUV1H122KBV 0.0012
C702 ECUV1H122KBV 0.0012
C703 F1J1A106A024 10
C705 ECUE1E103KBQ 0.01
C706 ECUE1E682KBQ 0.0068
C707 ECUE1E682KBQ 0.0068
C708 ECUV1C224KBV 0.22
C709 ECUE1H3R0CCQ 3
C710 ECUE1H101JCQ 100p
C711 ECUE1H221KBQ 220p
C712 ECUE1H101JCQ 100p
C713 ECUE1H3R0CCQ 3
C714 ECUE1H3R0CCQ 3
C715 ECUE1H3R0CCQ 3
C716 ECUV1H822KBV 0.0082
C717 F2G1C1010034 100
C718 ECUV1E473KBV 0.047
C802 F1K0J107A036 100
C830 ECUV1H103KBV 0.01
C840 ECUV1H103KBV 0.01
Safety Ref.
No.
Part No. Part Name & Description Remarks
C900 F1K1E1060001 10
C902 ECUE1E103KBQ 0.01
C903 F1H1H104A913 0.1
C904 ECUV1E104KBV 0.1
C905 F1K1E1060001 10
C906 F1K1E1060001 10
C910 F1K1E1060001 10
C912 ECUV1H104KBV 0.1
C913 ECUE1H100DCQ 10p
C914 F1L1C2260012 22
C915 F1G1H821A541 820p
C917 ECUV1H104KBV 0.1
C920 F1K1E1060001 10
C922 ECUV1H104KBV 0.1
C923 ECUE1H100DCQ 10p
C924 F1L1C2260012 22
C925 F1G1H821A541 820p
C927 ECUV1H104KBV 0.1
C930 F1K1E1060001 10
C932 ECUV1H104KBV 0.1
C933 ECUE1H100DCQ 10p
C934 F1L1C2260012 22
C935 F1G1H821A541 820p
C937 ECUV1H104KBV 0.1
C940 F1K0J107A036 100
C941 F1J1A106A024 10
C960 F1J1A106A024 10
C961 F1J1A106A024 10
C970 ECUV1C105KBV 1
C971 ECUE1C104KBQ 0.1
(VARISTORS)
AL600 D4EDY201A035 VARISTOR
CF571 D4ZZ00000039 VARISTOR
CF572 D4ZZ00000039 VARISTOR
(OTHERS)
1AP101 PNJE1234Z LEAD WIRE
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB2 PNLPN511BX2 POWER SUPPLY BOARD ASS'Y
(RTL)
(ICs)
IC30 C0DBAYY00932 IC
(TRANSISTORS)
Q1 B1ABMF000022 TRANSISTOR(SI)
(DIODES)
D1 B0JCME000087 DIODE(SI)
D2 B0JCME000087 DIODE(SI)
D3 B0JCME000087 DIODE(SI)
D4 B0JCME000087 DIODE(SI)
D5 B0ACCK000003 DIODE(SI)
D30 B0JCME000087 DIODE(SI)
(CONNECTORS)
CN1 K4AA02A00080 TERMINAL
(FUSES)
F1 K5H502Y00002 FUSE
F2 K5H311200001 FUSE
(COILS)
L30 G1C100MA0426 COIL
Safety Ref.
No.
Part No. Part Name & Description Remarks
