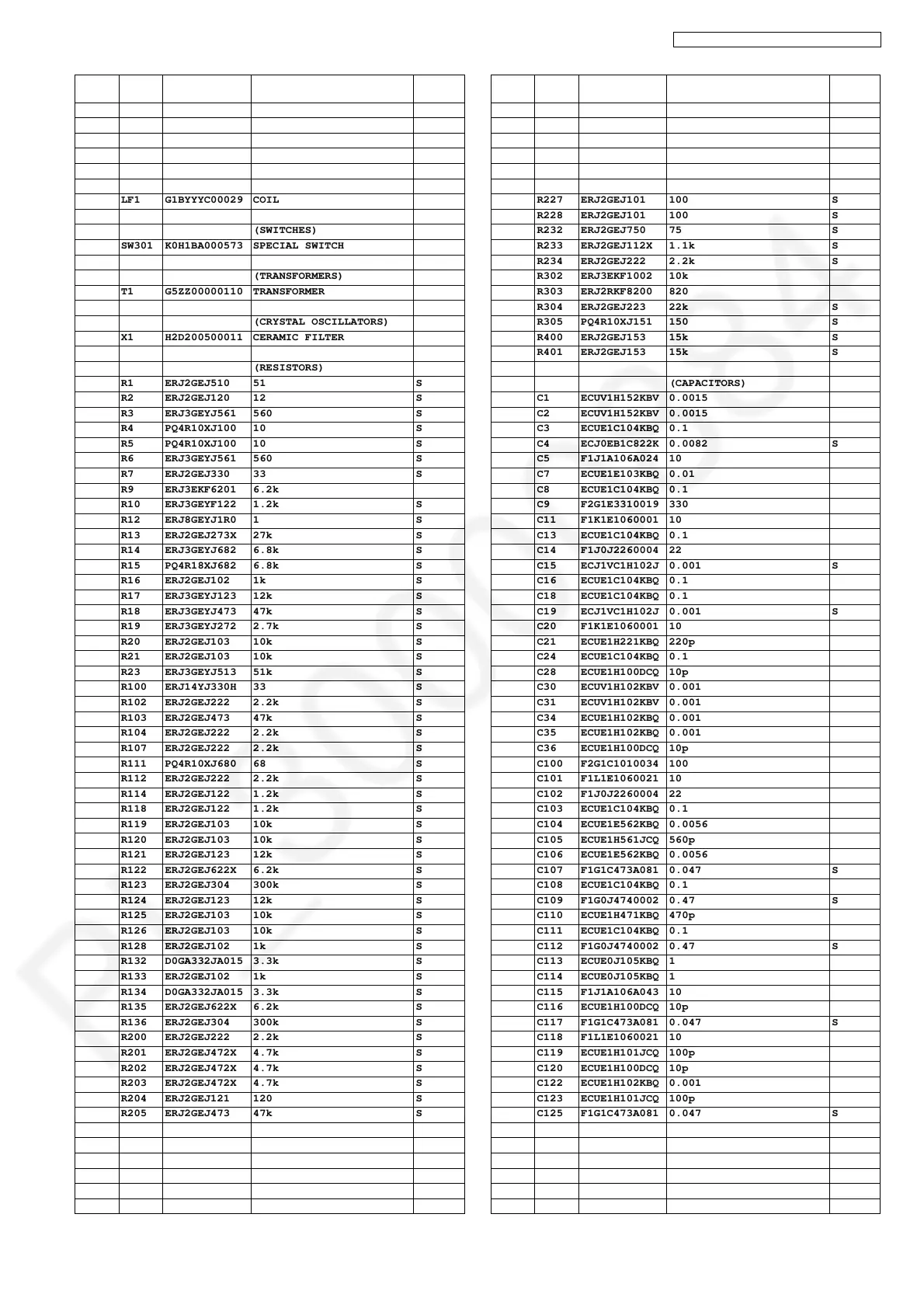

85
VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1
L10 J0JYC0000101 IC FILTER
L11 J0JYC0000101 IC FILTER
L200 G1C331JA0036 COIL
L301 J0JCC0000092 IC FILTER
L700 J0JCC0000277 IC FILTER
L701 J0JCC0000277 IC FILTER
LF1 G1BYYYC00029 COIL
(SWITCHES)
SW301 K0H1BA000573 SPECIAL SWITCH
(TRANSFORMERS)
T1 G5ZZ00000110 TRANSFORMER
(CRYSTAL OSCILLATORS)
X1 H2D200500011 CERAMIC FILTER
(RESISTORS)
R1 ERJ2GEJ510 51 S
R2 ERJ2GEJ120 12 S
R3 ERJ3GEYJ561 560 S
R4 PQ4R10XJ100 10 S
R5 PQ4R10XJ100 10 S
R6 ERJ3GEYJ561 560 S
R7 ERJ2GEJ330 33 S
R9 ERJ3EKF6201 6.2k
R10 ERJ3GEYF122 1.2k S
R12 ERJ8GEYJ1R0 1 S
R13 ERJ2GEJ273X 27k S
R14 ERJ3GEYJ682 6.8k S
R15 PQ4R18XJ682 6.8k S
R16 ERJ2GEJ102 1k S
R17 ERJ3GEYJ123 12k S
R18 ERJ3GEYJ473 47k S
R19 ERJ3GEYJ272 2.7k S
R20 ERJ2GEJ103 10k S
R21 ERJ2GEJ103 10k S
R23 ERJ3GEYJ513 51k S
R100 ERJ14YJ330H 33 S
R102 ERJ2GEJ222 2.2k S
R103 ERJ2GEJ473 47k S
R104 ERJ2GEJ222 2.2k S
R107 ERJ2GEJ222 2.2k S
R111 PQ4R10XJ680 68 S
R112 ERJ2GEJ222 2.2k S
R114 ERJ2GEJ122 1.2k S
R118 ERJ2GEJ122 1.2k S
R119 ERJ2GEJ103 10k S
R120 ERJ2GEJ103 10k S
R121 ERJ2GEJ123 12k S
R122 ERJ2GEJ622X 6.2k S
R123 ERJ2GEJ304 300k S
R124 ERJ2GEJ123 12k S
R125 ERJ2GEJ103 10k S
R126 ERJ2GEJ103 10k S
R128 ERJ2GEJ102 1k S
R132 D0GA332JA015 3.3k S
R133 ERJ2GEJ102 1k S
R134 D0GA332JA015 3.3k S
R135 ERJ2GEJ622X 6.2k S
R136 ERJ2GEJ304 300k S
R200 ERJ2GEJ222 2.2k S
R201 ERJ2GEJ472X 4.7k S
R202 ERJ2GEJ472X 4.7k S
R203 ERJ2GEJ472X 4.7k S
R204 ERJ2GEJ121 120 S
R205 ERJ2GEJ473 47k S
R206 ERJ2GEJ102 1k S
R212 PQ4R18XJ121 120 S
R213 PQ4R18XJ271 270 S
R214 ERJ3EKF3901 3.9k
R215 ERJ3EKF1002 10k
R216 ERJ2GEJ153 15k S
Safety Ref.
No.
Part No. Part Name & Description Remarks
R217 ERJ2GEJ472X 4.7k S
R219 ERJ2GEJ273X 27k S
R220 ERJ2GEJ222 2.2k S
R224 ERJ2GEJ472X 4.7k S
R225 ERJ2GEJ102 1k S
R226 ERJ2GEJ182 1.8k S
R227 ERJ2GEJ101 100 S
R228 ERJ2GEJ101 100 S
R232 ERJ2GEJ750 75 S
R233 ERJ2GEJ112X 1.1k S
R234 ERJ2GEJ222 2.2k S
R302 ERJ3EKF1002 10k
R303 ERJ2RKF8200 820
R304 ERJ2GEJ223 22k S
R305 PQ4R10XJ151 150 S
R400 ERJ2GEJ153 15k S
R401 ERJ2GEJ153 15k S
(CAPACITORS)
C1 ECUV1H152KBV 0.0015
C2 ECUV1H152KBV 0.0015
C3 ECUE1C104KBQ 0.1
C4 ECJ0EB1C822K 0.0082 S
C5 F1J1A106A024 10
C7 ECUE1E103KBQ 0.01
C8 ECUE1C104KBQ 0.1
C9 F2G1E3310019 330
C11 F1K1E1060001 10
C13 ECUE1C104KBQ 0.1
C14 F1J0J2260004 22
C15 ECJ1VC1H102J 0.001 S
C16 ECUE1C104KBQ 0.1
C18 ECUE1C104KBQ 0.1
C19 ECJ1VC1H102J 0.001 S
C20 F1K1E1060001 10
C21 ECUE1H221KBQ 220p
C24 ECUE1C104KBQ 0.1
C28 ECUE1H100DCQ 10p
C30 ECUV1H102KBV 0.001
C31 ECUV1H102KBV 0.001
C34 ECUE1H102KBQ 0.001
C35 ECUE1H102KBQ 0.001
C36 ECUE1H100DCQ 10p
C100 F2G1C1010034 100
C101 F1L1E1060021 10
C102 F1J0J2260004 22
C103 ECUE1C104KBQ 0.1
C104 ECUE1E562KBQ 0.0056
C105 ECUE1H561JCQ 560p
C106 ECUE1E562KBQ 0.0056
C107 F1G1C473A081 0.047 S
C108 ECUE1C104KBQ 0.1
C109 F1G0J4740002 0.47 S
C110 ECUE1H471KBQ 470p
C111 ECUE1C104KBQ 0.1
C112 F1G0J4740002 0.47 S
C113 ECUE0J105KBQ 1
C114 ECUE0J105KBQ 1
C115 F1J1A106A043 10
C116 ECUE1H100DCQ 10p
C117 F1G1C473A081 0.047 S
C118 F1L1E1060021 10
C119 ECUE1H101JCQ 100p
C120 ECUE1H100DCQ 10p
C122 ECUE1H102KBQ 0.001
C123 ECUE1H101JCQ 100p
C125 F1G1C473A081 0.047 S
C126 ECUE1H561JCQ 560p
C127 ECUE1H100DCQ 10p
C128 ECUE1H221JCQ 220p
C130 ECUE1H100DCQ 10p
C131 ECUE1H100DCQ 10p
C200 ECUE1C104KBQ 0.1
Safety Ref.
No.
Part No. Part Name & Description Remarks
