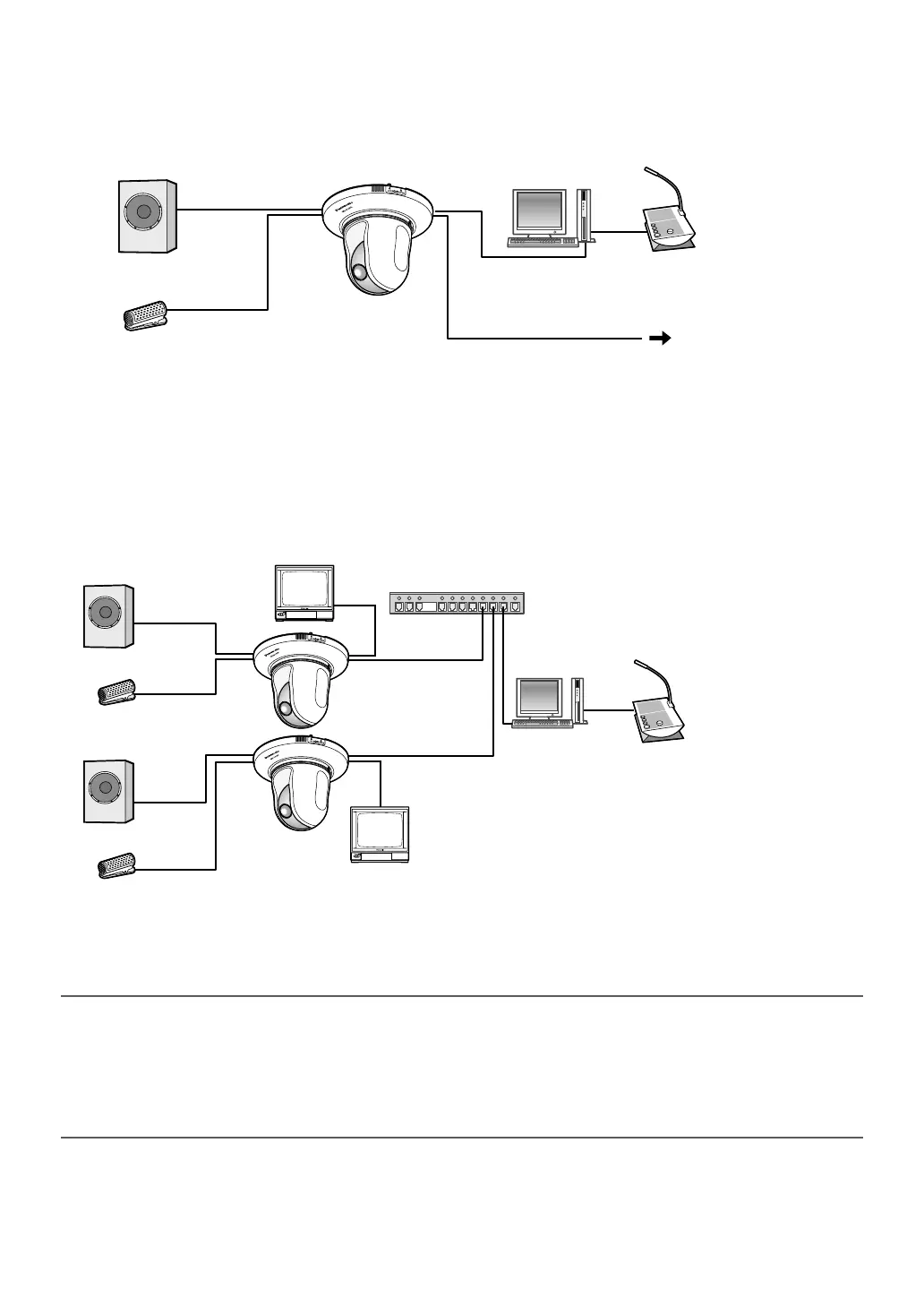

Connection example
When connecting with a PC directly
<Required cable>
LAN cable (category 5 or better, cross, STP*)
* For Europe
When connecting to a network using a PoE hub
<Required cable>
LAN cable (category 5 or better, straight, STP*)
* For Europe
Important:
• The video monitor is used for checking the adjustment of the angular field of view when installing the camera or when
servicing. It is not provided for recording/monitoring use.
• Depending on the monitor, some characters (camera title, preset ID, etc.) may not be displayed on the screen.
• Use a switching hub or a router which is compliant with 10BASE-T/100BASE-TX.
• Power supply is required for each network camera. When using a PoE device (hub), 12 V DC power supply is unnec-
essary.
PoE device (hub)
PC
LAN cable (category 5
or better, straight, STP*)
Video monitor
(for adjustment use only)
Video monitor
(for adjustment use only)
LAN cable
(category 5 or better,
straight, STP*)
LAN cable
(category 5 or better, straight, STP*)
Powered speaker
(option)
Microphone (option)
Powered speaker
(option)
Microphone (option)
To AC outlet
LAN cable
(category 5 or better, cross, STP*)
PC
Powered speaker (option)
Microphone (option)
24
