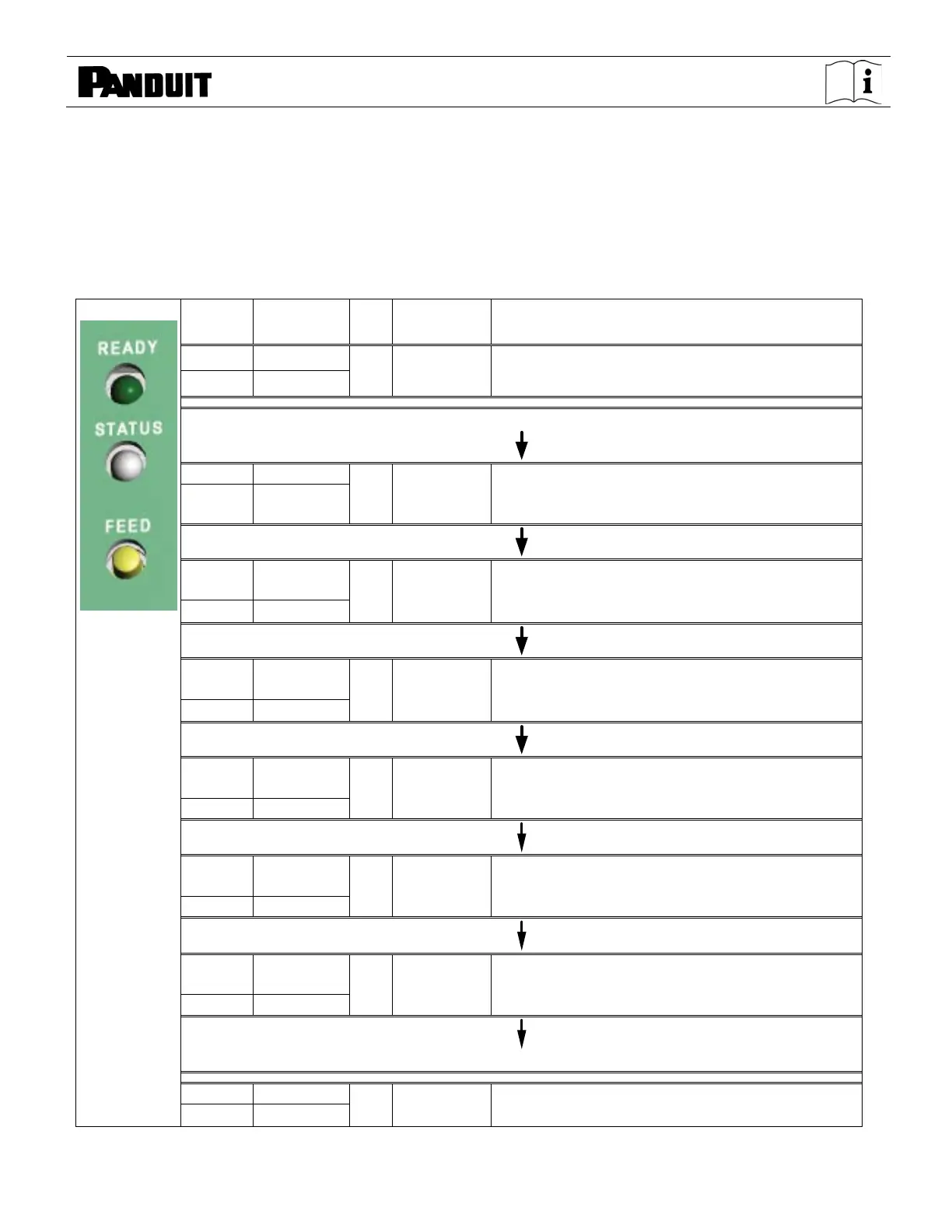

3. Control Panel
3-1. LED Status
Press and hold the FEED key then power on the printer, the printer will beep 3 times and enter into
Self-Test status. If you keep holding the FEED key, the status will change in sequence to Auto Sensing
Mode, Dump Mode, Direct Thermal Mode, Thermal Transfer Mode, See-through Sensor on/off, and
then return to Self-Test again. These different statuses can change the setting of printer, they are
described as follows:
FEED
LED Light Beep Status
Description
READY
Green
1
Normal
status
Normal status
STATUS
Press and hold the FEED Key then power on the printer.
READY
Red (Flash)
3 Self-Test
Printing Self-Test page, for operation
instructions please refer to page Error!
Bookmark not defined..
STATUS Orange
READY
Orange
(Flash)
1
Auto
Sensing
Mode
Printers currently in Auto Sensing Mode, for
operation instructions please refer to page
Error! Bookmark not defined..
STATUS
Orange
READY
Green
(Flash)
1 Dump Mode
Printers currently in Dump Mode, for operation
instructions please refer to page Error!
Bookmark not defined. .
STATUS
Orange
READY
Red
(Flash)
1
Direct
Thermal
(DT) Mode
Set the printer to Direct Thermal (DT) Mode, for
operation instructions please refer to page
Error! Bookmark not defined..
STATUS
Red
READY
Orange
(Flash)
1
Thermal
Transfer
(TT) Mode
Set the printer to Thermal Transfer (TT) Mode,
for operation instructions please refer to page
Error! Bookmark not defined..
STATUS
Red
READY
Green
(Flash)
1
See-through
Sensor
on/off
Set the See-through Sensor on or off, for
operation instructions please refer to page
Error! Bookmark not defined..
STATUS
Red
Return to Self Test
READY
Printer is currently downloading F/W
STATUS
Red (Flash)
