Installation
Chapter 4: Installation
The following sections guide you through the steps required to
install the PCS300 Universal IP Reporting Module and how to
mount and connect the antenna.
Wall-Mount Installation
The PCS300 must be securely mounted on a wall or similar
type surface. It is important to mount the metal box as far
away as possible from any electronic equipment and that the
metal box is mounted as high as possible to ensure protection
from interference and to maximize signal quality.
To mount the PCS300

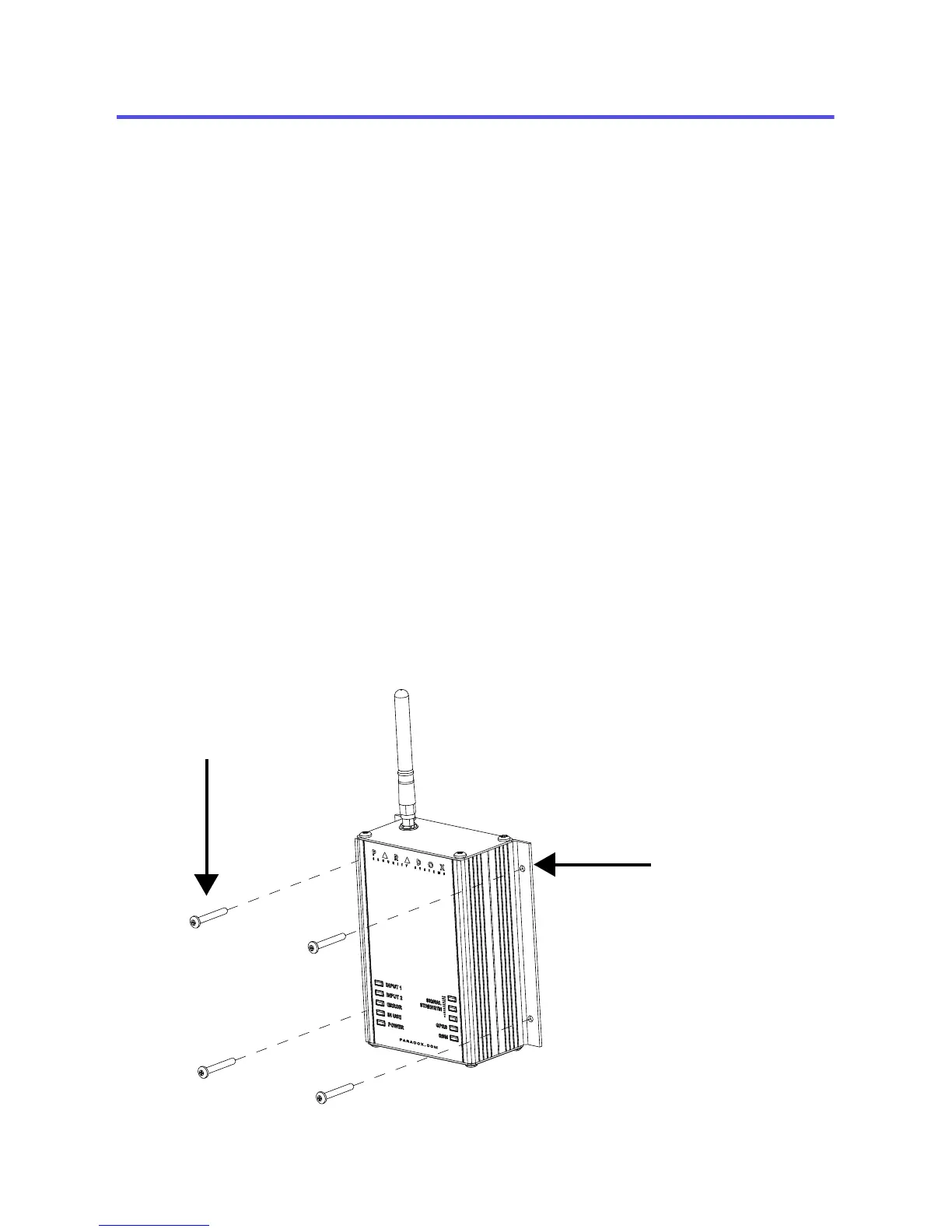

1) Use the module as a template to mark the four holes onto
the mounting surface.
2) Drill the holes.
3) Align the PCS300 and secure into place using the
appropriate hardware.
