22
Programming Guide
LIBERATOR WIRELESS BUS MODULE (SPC-319)
The following options and features are only available to program when a Liberator Wireless Bus Module has
been connected to the Spectra control panel’s communication bus as shown on page 37. The Liberator Wireless
Bus Module (SPC-319) allows you to add up to eight fully programmable remote controls and up to eight Liberator
Wireless Detectors and Contact Switches (door contacts). The SPC-319 also provides one programmable 5A
relay (PGM). A second 5A programmable relay (PGM) is available as an option.
The Liberator Wireless Bus Module does not function with the Spectra 1755, 1755EX, 1758 and 1758EX
control panels. Do not connect more than one Liberator Module.
WIRELESS TRANSMITTER ASSIGNMENT (Liberator Only)
The serial number can be located on the inside of the transmitter or you can use the Serial Number Display (see page23).
Use the Liberator Wireless Motion Detectors (Model# 9002) and the Liberator Contact Switches (Model# 9020).

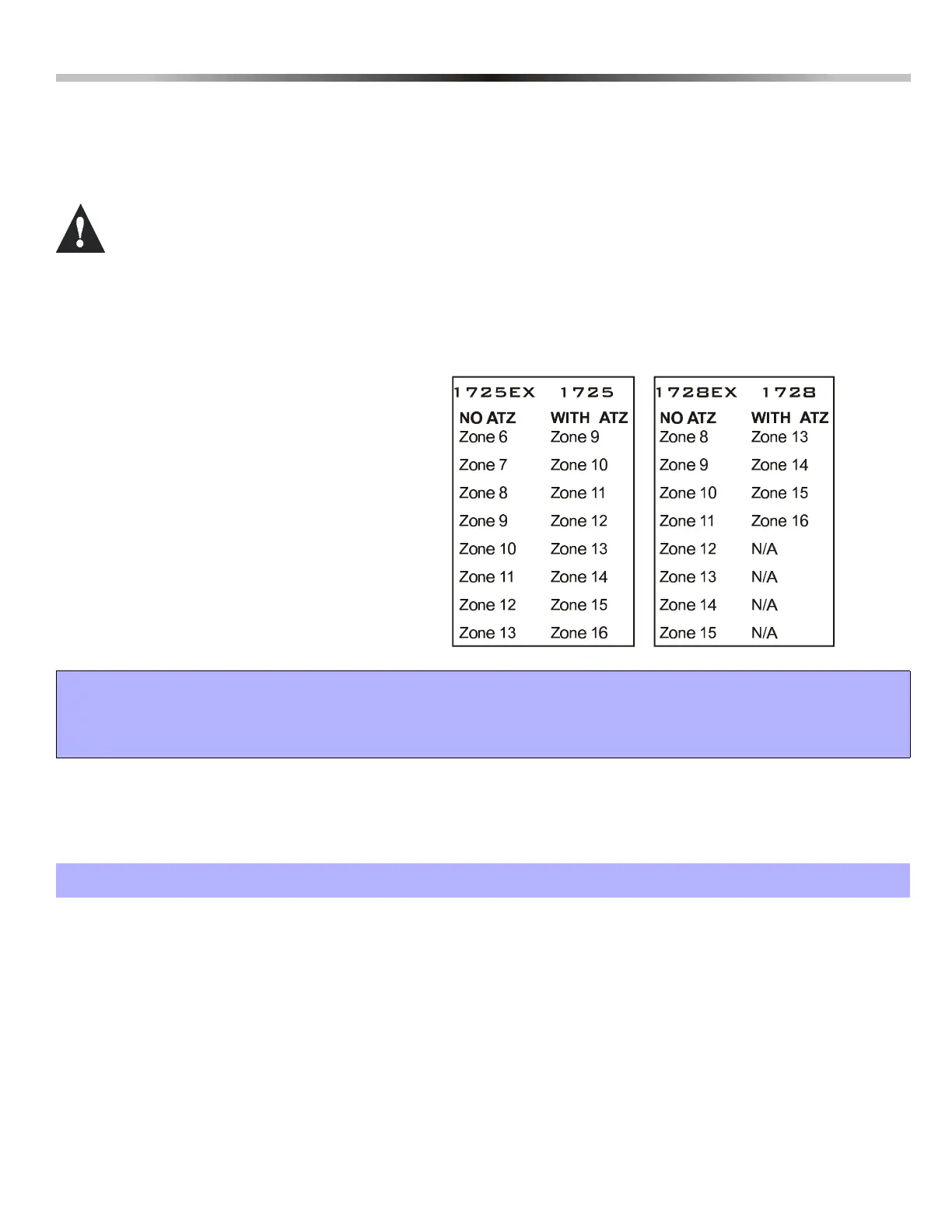

Section # Serial #
[601] ___/___/___/___/___/___EXPANSION INPUT 1=
[602] ___/___/___/___/___/___EXPANSION INPUT 2=
[603] ___/___/___/___/___/___EXPANSION INPUT 3=
[604] ___/___/___/___/___/___EXPANSION INPUT 4=
[605] ___/___/___/___/___/___EXPANSION INPUT 5=
[606] ___/___/___/___/___/___EXPANSION INPUT 6=
[607] ___/___/___/___/___/___EXPANSION INPUT 7=
[608] ___/___/___/___/___/___EXPANSION INPUT 8=
WIRELESS MODULE OPTIONS (Liberator Only)
Bold = Default Setting
WARNING!
Avoid assigning devices from different modules to the same Expansion Input. For example, do not assign a wireless trans-
mitter to section [601], then connect a detection device to input 1 of a hardwire module and enable option [1] in section
[651]. This would mean both devices have been assigned to the same Expansion Input.
SECTION [610]: General Options
Option OFF ON
[1] Wireless Transmitter Supervision l Disabled l Enabled
[2] Supervision Timer Setting
(must be same as the transmitter’s jumper setting)
l Low = Every 12 hours l High = Every 12 minutes
[3] PGM1 on Liberator follows Global PGM
programmed in sections [124] & [125]
l Disabled l Enabled
[4] PGM2 on Liberator follows Global PGM
programmed in sections [124] & [125]
l Disabled l Enabled
[5] Future Use l N/A l N/A
[6] Future Use l N/A l N/A
[7] Future Use l N/A l N/A
[8] Future Use l N/A l N/A
