Magellan / Spectra SP 57

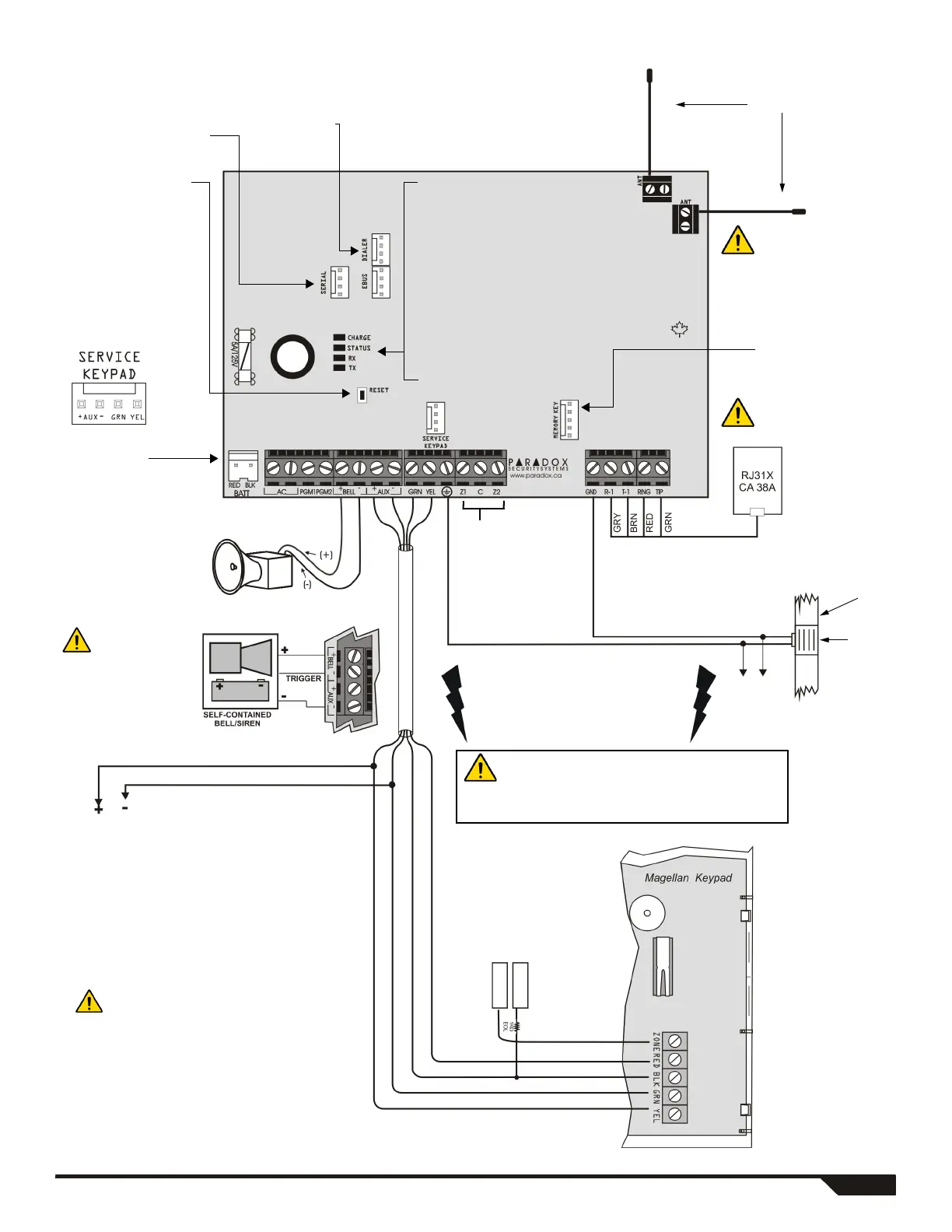

MG5000 PCB Layout
Refer to Single Zone
Inputs
on page 51
Refer to AC Power
& Backup Battery
Connections on
age 53.
For the keypad’s zone
configurations, refer to the
Installer Quick Menu. If EOL is
enabled: see section [706] option
[2]. Also refer to Keypad Zone
Connections on page 51.
AUX Power
Refer to transformer requirements on page 53 for Aux.
Power Output. To connect additional wiring to auxiliary
power, use the red (+) and black (-) keypad connectors.
Auxiliary power will shut down if current exceeds 1.1A. If the
auxiliary output is overloaded and is shut down, you must
disconnect all loads from the output for at least 10 seconds
before reconnecting any load back to the auxiliary output.
To provide maximum lightning protection
we strongly recommend having separate
earth connections for the dialer and zone
ground terminals.
To metallic
enclosure
Ground
clamp
AWG#14 single
conductor solid
copper wire
Cold water
pipe
grounding
The "
BELL" output will shutdown if
the current exceeds 3A.
Disconnect telephone
line before servicing.
Four pin connector
can be used for
quick installation of a
keypad.
Do not cut, bend or alter
the antennas and ensure
that electrical wires do
not cross over the
antennae, as this may
affect signal reception.
Paradox Memory Key
(PMC-3, PMC-4)
Antennas
"RX" & “TX” LED:
Flashes quickly when
receiving or transmitting RF signals
from wireless devices.
"STATUS" LED:
Flash once every second = Normal
Flashes ON 1 second and OFF 1 second =
Any trouble
Always ON = Panel is using phone line
Fast flash 6 seconds after power up = Installer
lock enabled
This equipment must be installed and maintained
by qualified service personnel only.
For UL and C-UL warnings, refer to the UL and C-
UL Warnings section at the back of the
Reference & Installation Manual.
Used for In-Field Firmware upgrade
through a 306USB Direct Connect
Interface. See Connecting to
WinLoad on page 54 for details.
EBUS and Dialer: Used for
VDMP3 plug-in voice module
for voice reporting.
Press and hold the RESET
button for five seconds. The
STATUS LED will start
flashing. Within 2 seconds
of this flashing, press the
reset switch again. The
panel will reset to default
and restart.
The sum of the
current drawn from
the BELL and AUX
must be limited to 1.3A
(40VA transformer strongly
recommended). Exceeding
this limit will overload the
panel power supply and
lead to complete system
shutdown.
Connection for Self-Contained Bell/Siren
Max. amount of keypads = 15 keypads
Max. current = 700 mA
Max. distance of keypad from panel = 76m (250 feet)
Max. total run of wire = 230m (750 feet)
Charge LED:
Charging and Battery test LED
