Parker AC30 series Product Manual

3
AC30 series General Purpose I/O Option

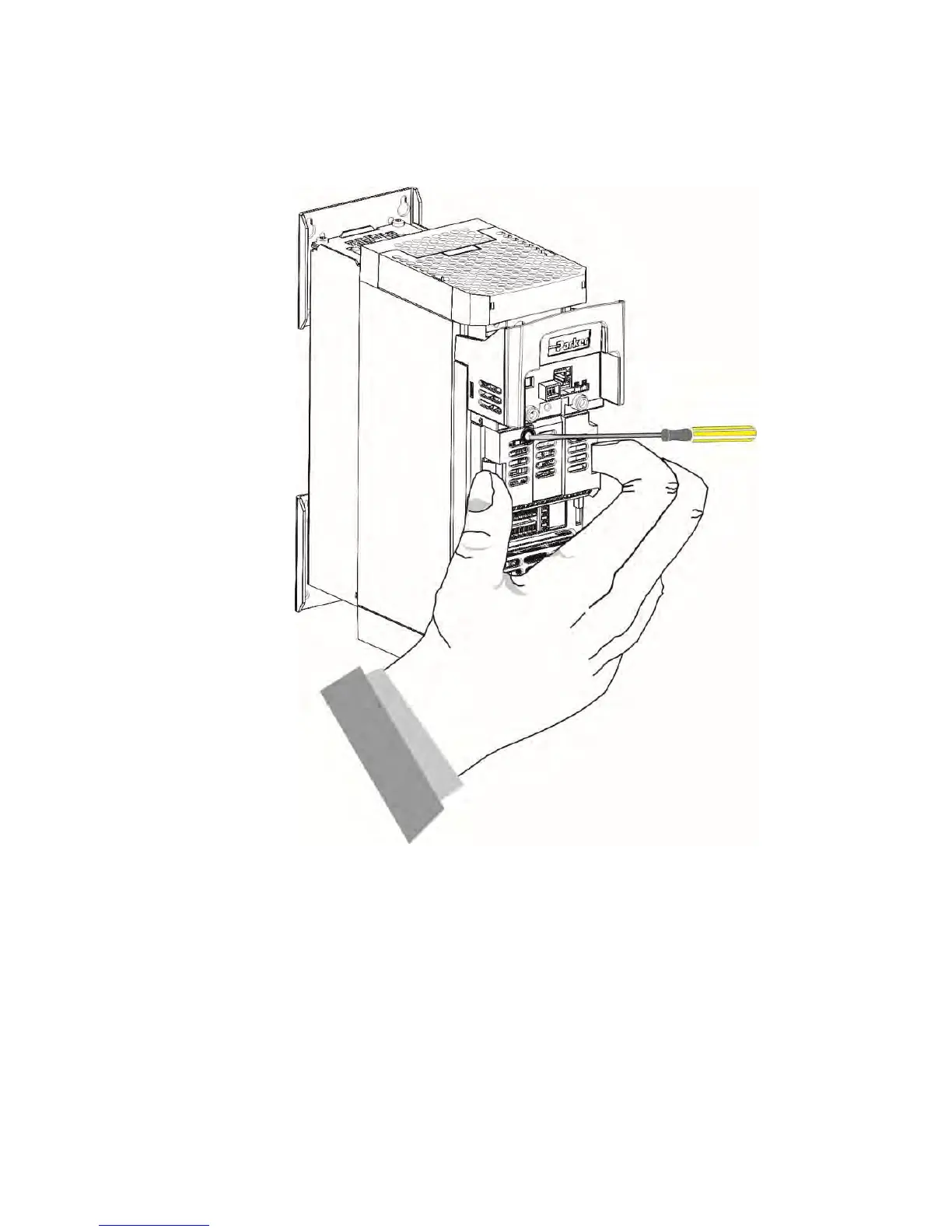

5. Click the Option into place and tighten the retaining screw, as shown.
6. Slide and click back the VCM lower cover, tighten the retaining screw and
slot back the GKP.

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
