Parker ac890 User Manual

The Keypad
9-58
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
72mm
26mm
54mm
7mm
mm
15.5
±
1
0
3.5
±
0.5
0
mm
32
±
2
0
mm
mm 5.5
±
0.5
mm
25
±
0.5
mm
58
±
0.5
Template
Cut-out
Assembly Procedure

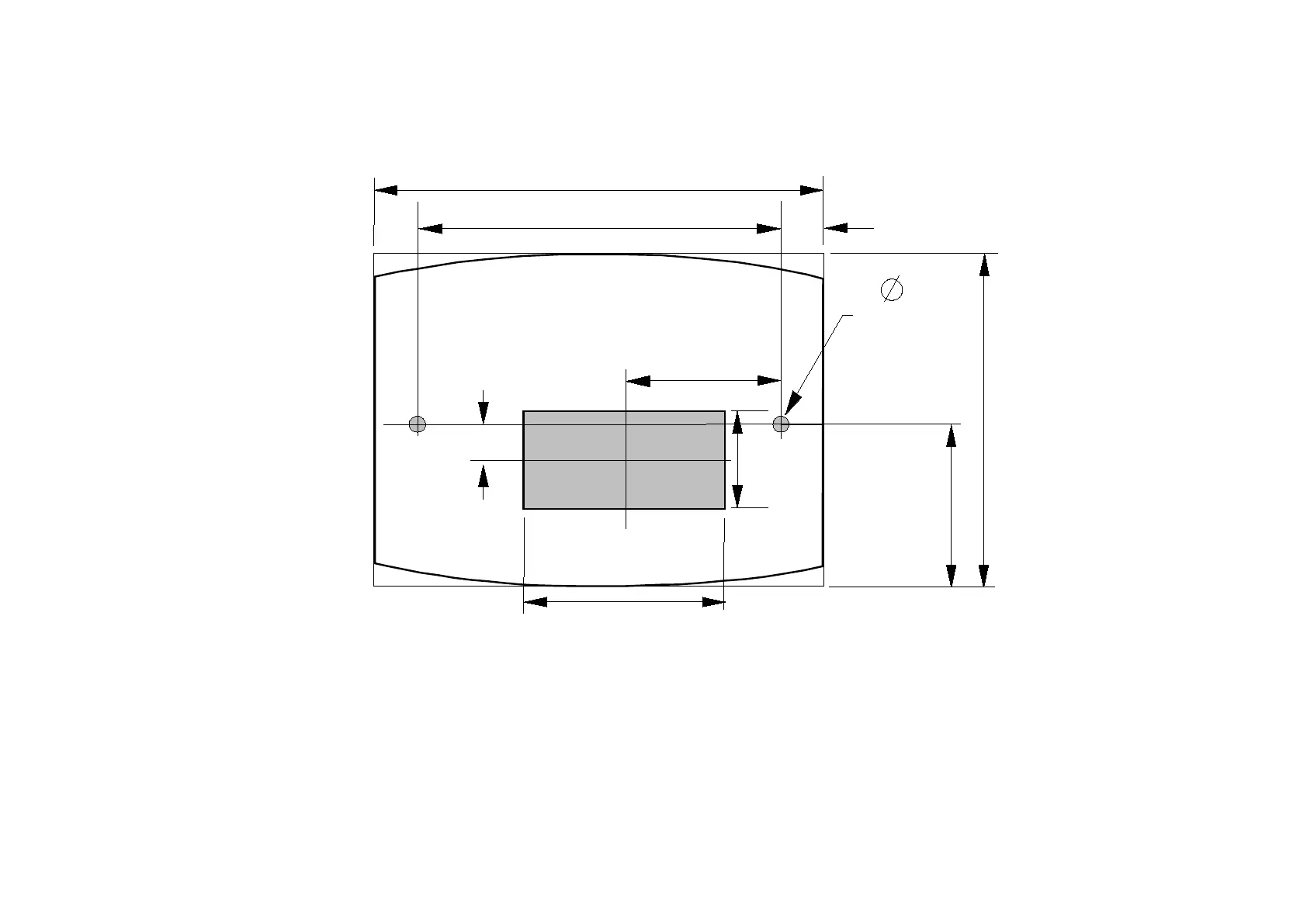

Figure 9.2 Mounting Dimensions for the Remote-Mounted 6511 Keypad
