Parker Hannin Corporation
Hydraulic Pump and Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2708-02/SV
C/EN | July 2019
Medium Pr
essur
e Axial Piston Pumps

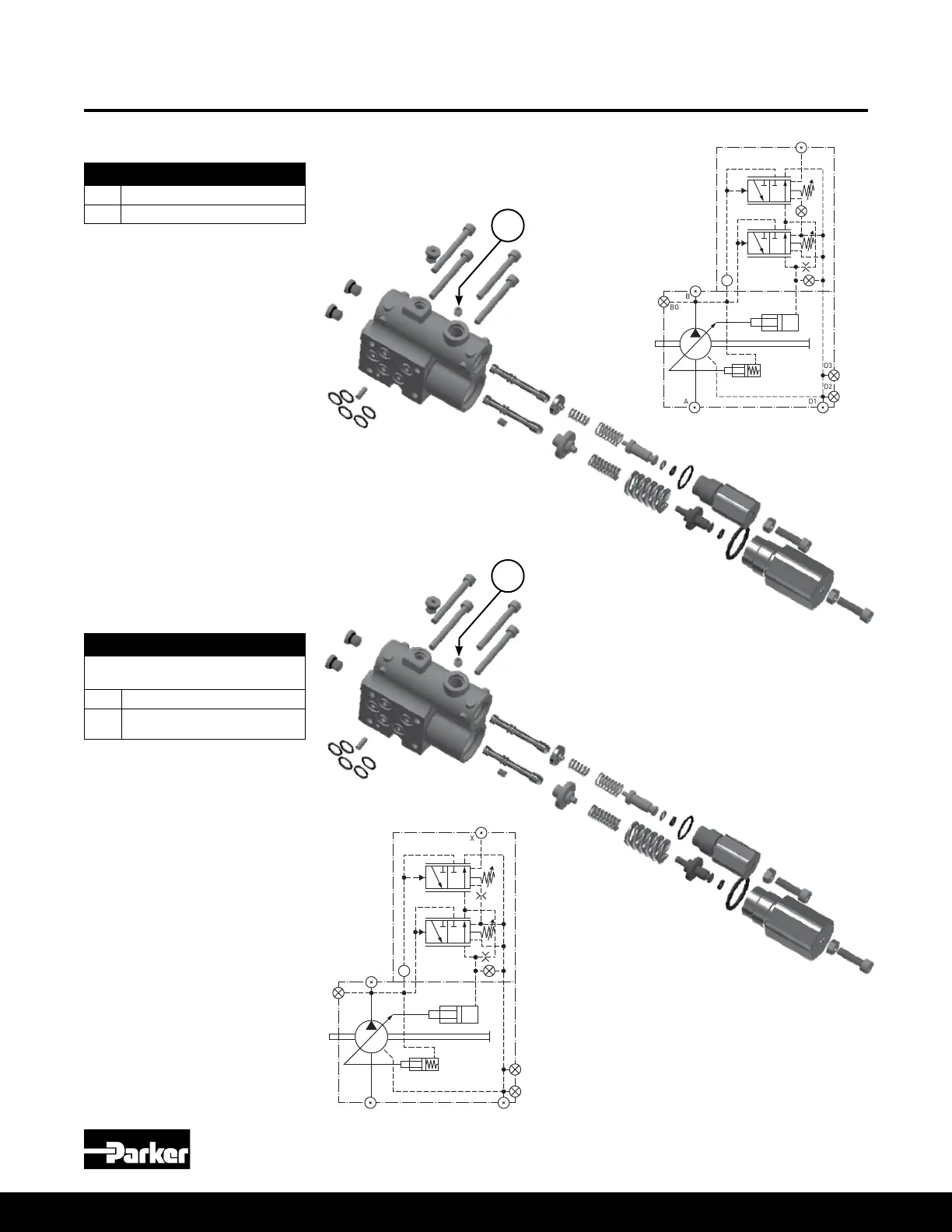

P1/PD B-mod Service Inf
ormation
22
L0 to L2 B-mod Conver
sion Guide
X
B
BG
D3
D2
D1
A
X
B
BG
D3
D2
D1
A
L0
L2
16
16
Remove
Item
Description
16
M6 x 6 set screw
Add
Kit #4
S2E-20466-5K
Item
Description
16
M6 x 6 set screw with 0.4mm
orice
21
23
Table of Contents
Table of Contents
2
B-Mod Pump Identification
3
B-Mod Controls Vs A-Mod Controls
4
General Information
5
Typical Characteristics
6
018, 028 B-Mod Pump Exploded View
7
045 B-Mod Pump Exploded View
8
018, 028, 045 B-Mod Pump Parts
9
060, 075, 085, 100, 140 B-Mod Pump Exploded View
10
060, 075, 085, 100, 140 B-Mod Pump Parts
11
Volume Stop Control
12
Thru Drive Couplings and O-Rings
13
C0 B-Mod Control Exploded View
14
L0 B-Mod Control Exploded View
15
L2 B-Mod Control Exploded View
16
AM B-Mod Control Exploded View
17
C0 to L0 B-Mod Conversion Guide
18
C0 to L2 B-Mod Conversion Guide
19
C0 to am B-Mod Conversion Guide
20
L0 / L2 to C0 B-Mod Conversion Guide
21
L0 to L2 B-Mod Conversion Guide
22
L2 to L0 B-Mod Conversion Guide
23
L0 to am B-Mod Conversion Guide
24
L2 to am B-Mod Conversion Guide
25
AM to C0 B-Mod Conversion Guide
26
AM to L0 B-Mod Conversion Guide
27
AM to L2 B-Mod Conversion Guide
28
075, 085, 100, 140 Torque Limiter
29
Electronic Unload Control B-Mod Exploded View
30
Parts Kits
32
Compensator Procedures
33
Pump Service Procedures
35
Pump Inspection Procedures
37
Component Rework Limits
38
018, 028, 045 Assembly Procedures
39
060, 075, 085, 100, 140 Assembly Procedures
45
Assembly Tools
47
Rotation Change
51
Test Procedure
53
Test Criteria & Start-Up Procedures
55
Trouble Shooting
56
Conversions and Formulas
58
