Parker P1/PD Series User Manual

Parker Hannin Corporation
Hydraulic Pump and Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2708-02/SVC/EN | July 2019
Medium Pressure Axial Piston Pumps
P1/PD B-mod Service Information
7

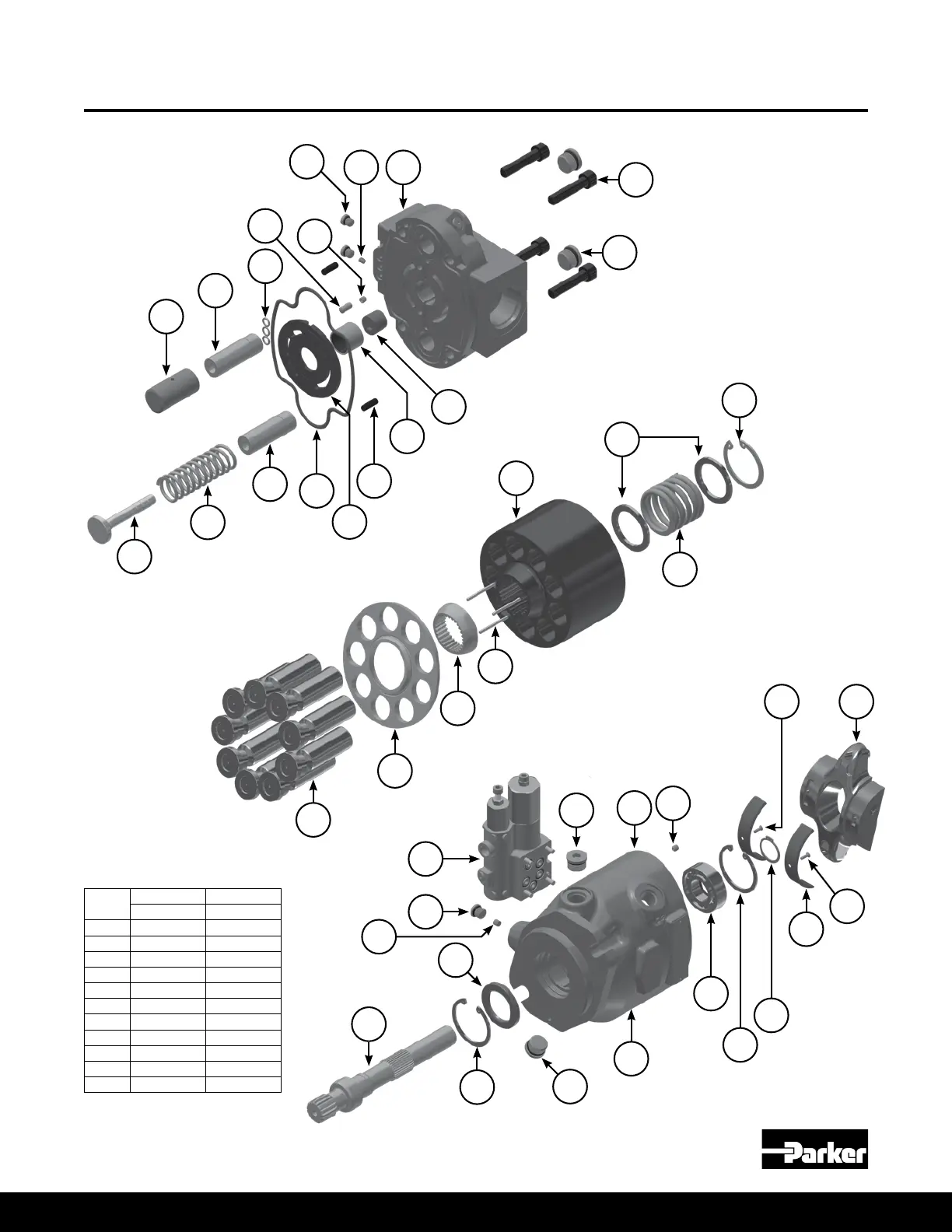

018, 028 B-mod Pump Exploded View
Item
18 28
Torque Torque
2 52 ft-lbs 52 ft-lbs
3 45 ft-lbs 45 ft-lbs
5 6 ft-lbs 6 ft-lbs
6 25 in-lbs 25 in-lbs
16 12 in-lbs 70 in-lbs
19 45 ft-lbs 45 ft-lbs
30 30 in-lbs 30 in-lbs
34 70 in-lbs 70 in-lbs
36 16 ft-lbs 45 ft-lbs
37 14 ft-lbs 14 ft-lbs
38 70 in-lbs 70 in-lbs
* Clockwise Rotation Shown
36
5
16
20
2930
35
34
22
23
14
15
8
39
13
11
1
2
19
7
17
36
12
27
38
41
37
26
25
24
21
40
36
31
28
46
30
32
42
43
4
18
9
