Parker P1/PD Series - 045 B-Mod Pump Exploded View

Parker Hannin Corporation
Hydraulic Pump and Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2708-02/SVC/EN | July 2019
Medium Pressure Axial Piston Pumps
P1/PD B-mod Service Information
8

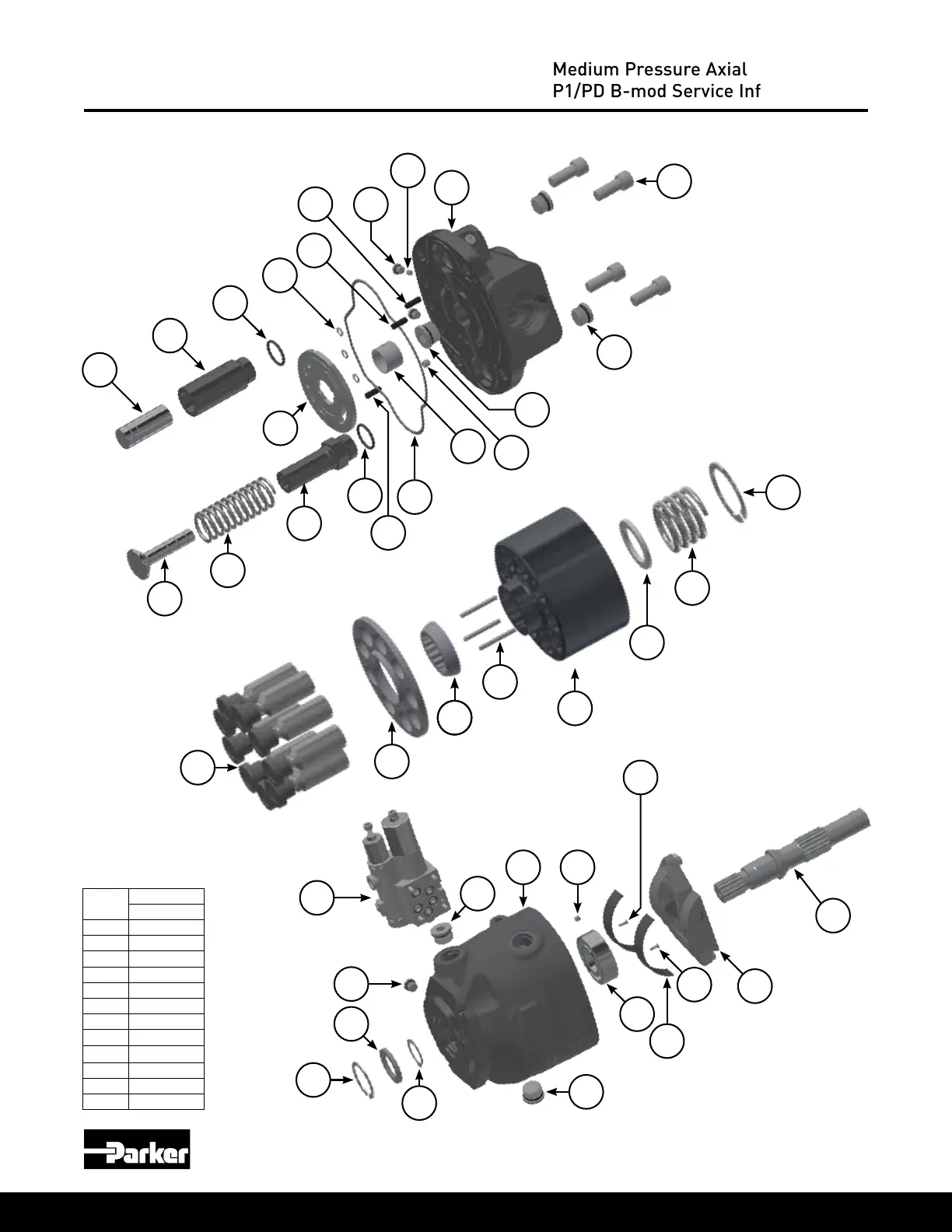

045 B-mod Pump Exploded View
Item
45
Torque
1 63 ft-lbs
2 45 ft-lbs
5 6 ft-lbs
6 25 in-lbs
11 105 ft-lbs
14 105 ft-lbs
16 10 ft-lbs
19 46 ft-lbs
30 30 in-lbs
34 70 in-lbs
36 75 ft-lbs
37 14 ft-lbs
* Clockwise Rotation Shown
