Parker P1/PD Series User Manual

Parker Hannin Corporation
Hydraulic Pump and Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2708-02/SVC/EN | July 2019
Medium Pressure Axial Piston Pumps
P1/PD B-mod Service Information
44
Axial movement
Measured Differential
Shim
Thickness
Displacement
Minimum Maximum 060/075/085 100 140
3.07 mm (.121 in) 3.12 mm (.123 in) 3.04 mm (.1196 in) 03E-95262-0 03E-95268-0 03E-95265-0
3.15 mm (.124 in) 3.22 mm (.126 in) 3.12 mm (.1228 in) 03E-95263-0 03E-95269-0 03E-95266-0
3.23 mm (.127 in) 3.29 mm (.129 in) 3.20 mm (.1259 in) 03E-95264-0 03E-95270-0 03E-95267-0
3.30 mm (.130 in) 3.36 mm (.132in) 3.28 mm (.1291 in) 03E-93180-0 03E-94148-0 03E-93260-0
3.37 mm (.133 in) 3.44 mm (.135 in) 3.36 mm (.1323 in) 03E-93566-0 03E-94149-0 03E-93970-0
3.45 mm (.136 in) 3.51mm (.138 in) 3.44 mm (.1354in) 03E-93567-0 03E-94150-0 03E-93971-0
3.52 mm (.139in) 3.62 mm (.142 in) 3.52 mm (.1386 in) 03E-93568-0 03E-94151-0 03E-93972-0
3.63 mm (.143 in) 3.70 mm (.145 in) 3.60 mm (.1417 in) 03E-93569-0 03E-94152-0 03E-93973-0
3.71 mm (.146 in) 3.77 mm (.148 in) 3.68 mm (.1449 in) 03E-93570-0 03E-94153-0 03E-93974-0
3.78 mm (.149 in) 3.85 mm (.151 in) 3.76 mm (.1480 in) 03E-93571-0 03E-94154-0 03E-93975-0
3.86 mm (.152 in) 3.92 mm (.154 in) 3.84 mm (.1512 in) 03E-93572-0 03E-94155-0 03E-93976-0
3.93 mm (.155 in) 4.00 mm (.157 in) 3.92 mm (.1539 in) 03E-93573-0 03E-94156-0 03E-93977-0
4.01 mm (.158 in) 4.10 mm (.161 in) 4.00 mm (.1575 in) 03E-93574-0 03E-94157-0 03E-93978-0
4.11 mm (.162 in) 4.18 mm (.164 in) 4.08 mm (.1606 in) 03E-93575-0 03E-94158-0 03E-93979-0
4.19 mm (.165 in) 4.25 mm (.167 in) 4.16 mm (.1638 in) 03E-93576-0 03E-93864-0 03E-93980-0
Shim Kits: S2E-18591-0K S2E-18640-0K S2E-18527-0K

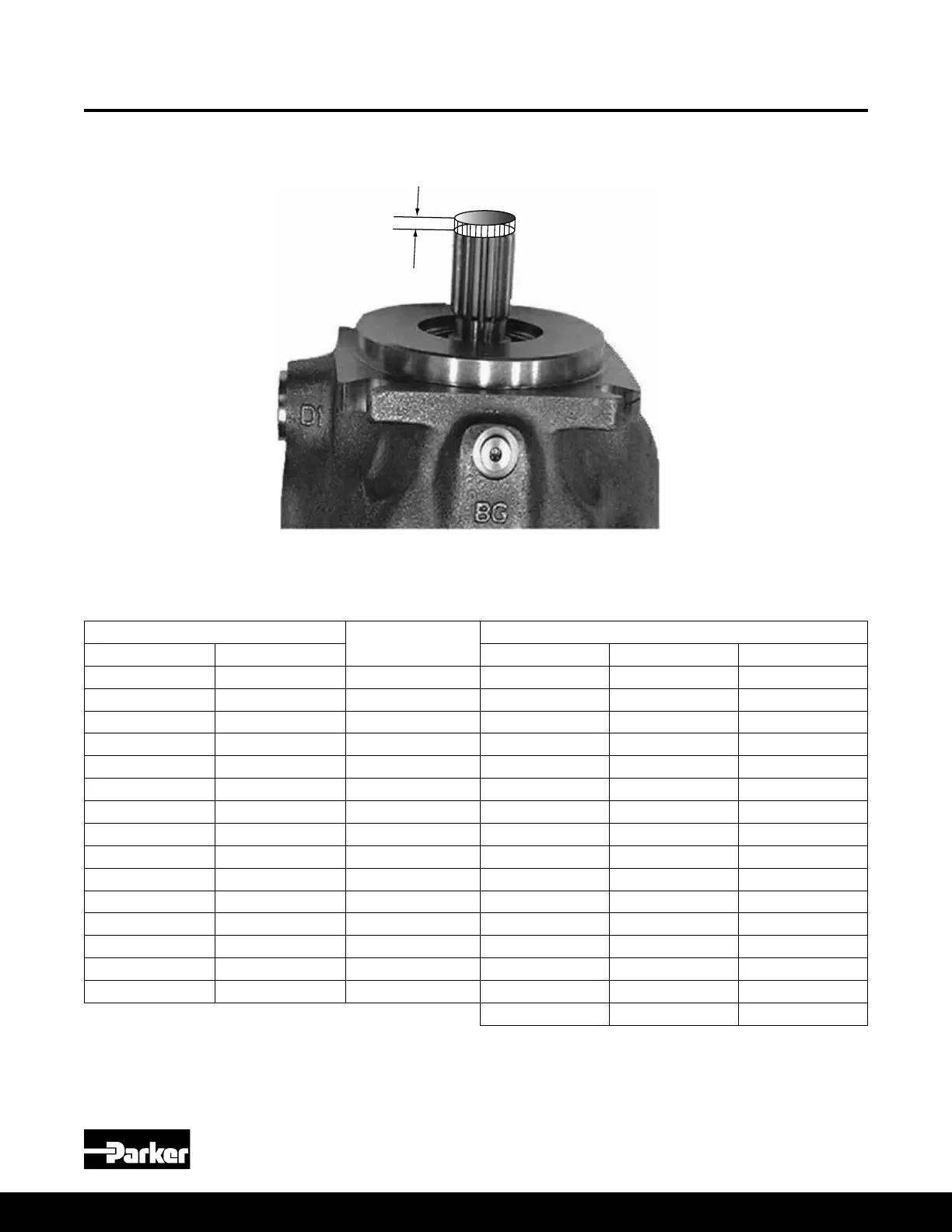

Figure 9
Table 4 - Shim Thickness Selection
Pump Assembly Procedures
(Continued)
060, 075, 085, 100, 140 Assembly Procedures
