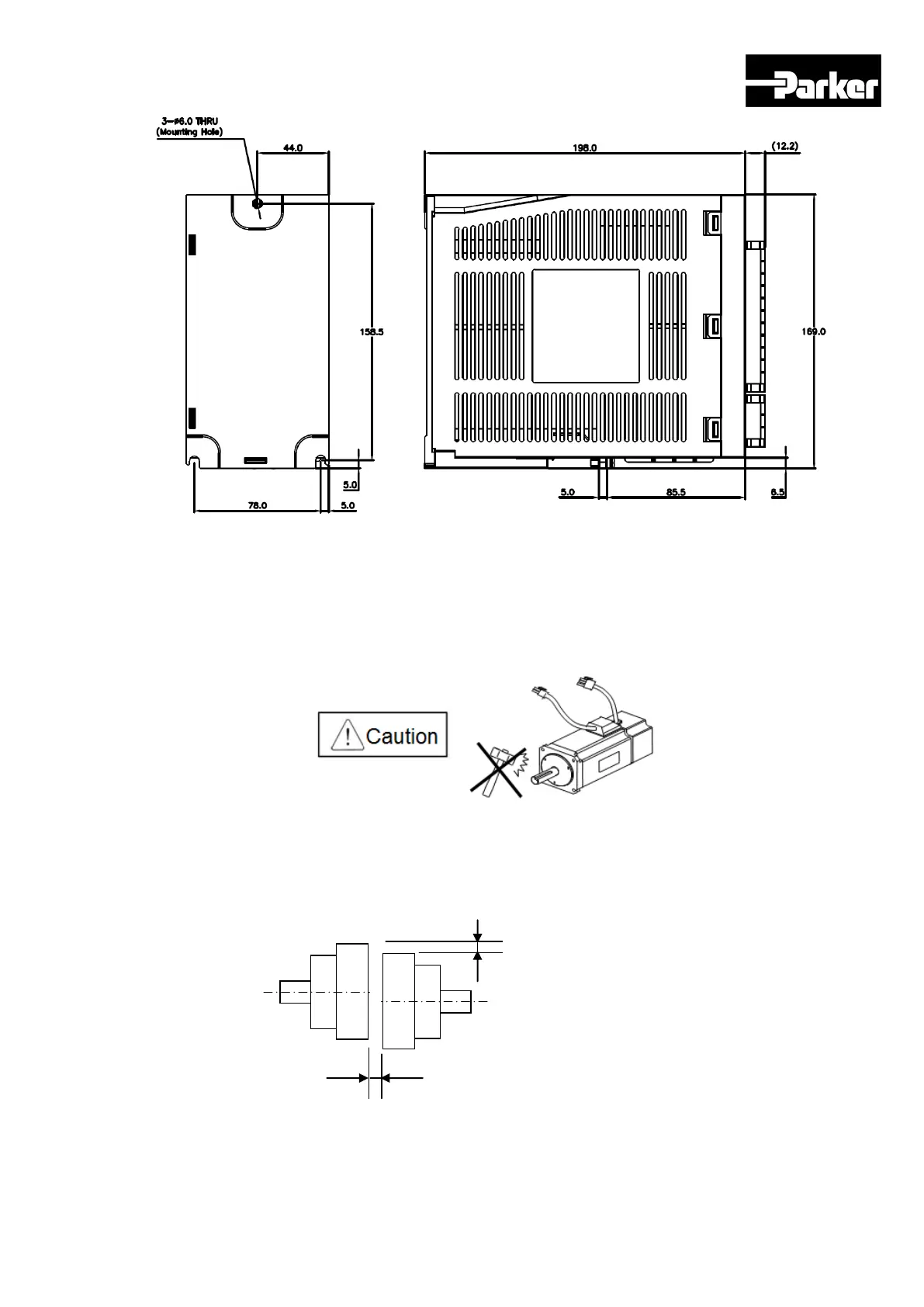

Figure 14. PD-35P Mounting Information
2.4.3 Preventing Excessive Impact
Excessive impact on the motor during installation or accidental fall may destroy the
encoder.
2.4.4 Combining with Load Device
Combining with Coupling: install coupling by matching the motor shaft with the load shaft
within the permissible window as below.
Load
Shaft
Motor
Shaft
0.03[mm] or below (peak to peak)
0.03[mm] or below (peak to peak)
